AW86066CSR

Optical Image Stabilization (OIS) Controller and Driver

Datasheet :

Product details

Actuator Type	SOC-OIS
Output I(mA)	±160mA
VDD (Max) (V)	3.6
VDD (Min) (V)	2.6
I2C (Hz)	100K 400K 1M
I2C Addr	Configurable
IQ (mA)	5
ISD (μA)	12
Temperature	-40℃~85℃
Control Mode	/
ADC (bit)	16
Package (mm)	WLCSP 3.555X1.255-27B

WLCSP 3.555X1.255-27B

Features Core: ♦ ARM 32-bit STARCU with FPU and DSP ♦ Frequency up to 48MHz ♦ 72 DMIPS, 1.5DMIPS/MHz DSP: ♦ INT32 ALU with divider ♦ Private instruction and independent programing Memories: ♦ 64KByte Flash Memory ♦ 16KByte ROM for boot loader ♦ 16KByte Program SRAM ♦ 16KByte Data SRAM(8KB for DSP) EIS buffer SPI Master/Slaver/Monitor I/F I3C, I2C Master/Slaver I/F ♦ Slaver address: 7’h69(Default) 4x 16bit General Timers 3x 16bit PWM Timers with 2-ch each 32-bit Watch Dog Timer 2x 16-bit AD Converter with 3-ch each 10-bit DA Converter for PGA offset, Output 2-ch BIAS output: ♦ Hall Bias current sink, 2-ch ♦ TMR Bias voltage source, 2-ch 2 Programmable Gain Amplifiers Driver: ♦ Constant Current Linear Driver ♦ Output 3-ch for OIS and AF, 13-bit DAC ♦ Default Imax=±160mA,Imax can support ±200mA. ♦ PWM supported, PWM frequency 10K~1MHz Shutdown mode with consumption less than 12uA WLCSP 3.555mm × 1.255mm × 0.3mm - 27B package

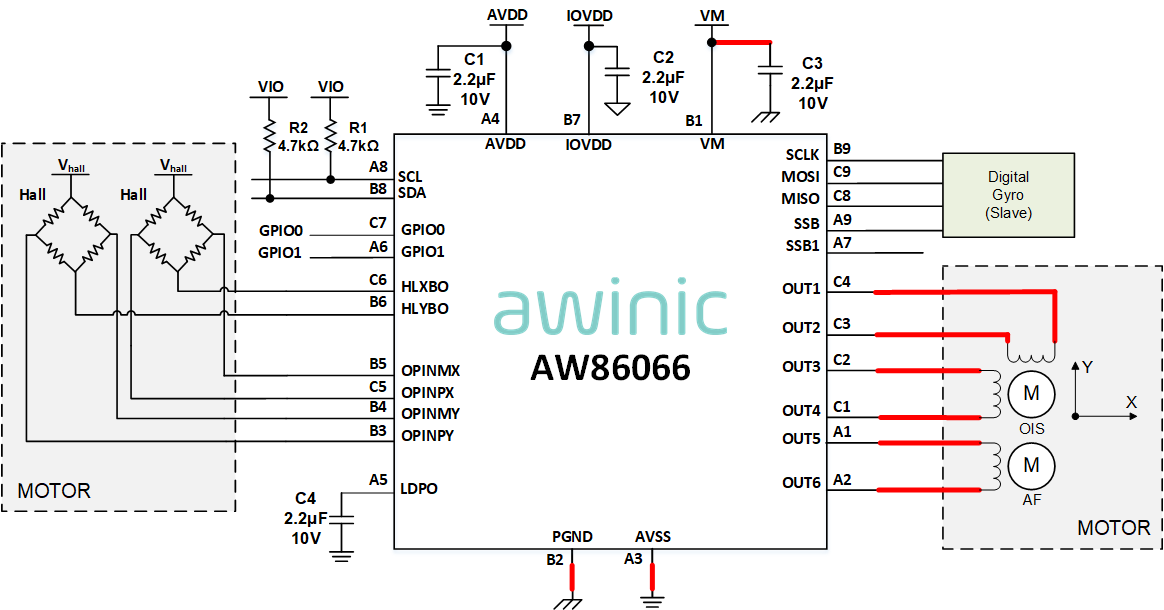

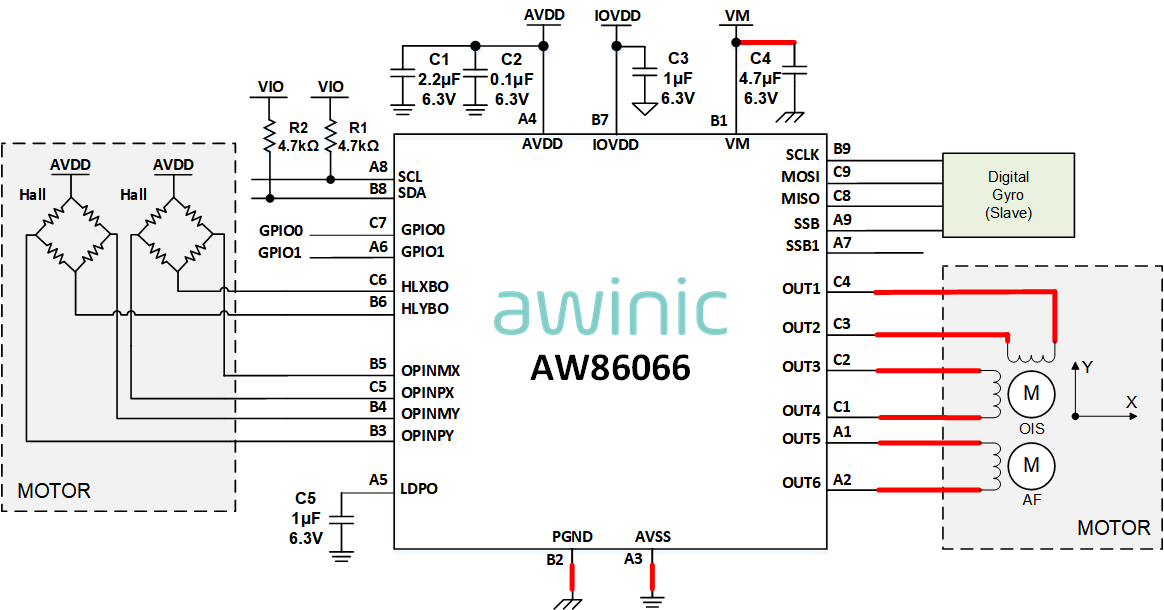

General Description 1.The AW86066 is an optical image stabilization (OIS) controller and driver which also support auto focus driving. It is always used in a camera module of smart mobile phone or other camera equipment. 2.The STARCU is Harvard structure and has own DSP and FPU. The bus for code connects flash, ROM and code SRAM and the bus for data connects data SRAM and APB bridge. With the 48MHz clock, STARCU can provide 72DMIPS computing power for algorithm. 3.The AW86066 integrates an on-chip 32-bit CPU as the controller, a flash memory for program and user data, 3 channels per ADC, 2 DACs for calibrating Hall sensor offsets, 2 Hall bias circuits, and 3 H-bridge drivers for OIS and AF. 4.The AW86066 DSP has dedicated ALU hardware that integrates instruction flow control, storage access, scalar operations, matrix operations, and digital filters, specifically designed for algorithm acceleration optimization. 5.There is an SPI I/F module that supports on-chip master, slave, and monitor. One I2C module is available, supporting master/slave mode, and one I3C module supports master/slave mode.

Technical documentation

Type	Title	Date
Product Design Guide	AW86066 Hardware Design Guide	2025-09-24
Datasheet	DS_AW86066_EN_V1.1	2026-03-06
Product Design Guide	DG_AW86064_AW86066_Hardware_Design_Guide_EN_V1.1	2026-05-20
Technical articles	[Technical Guide] Overheating and Battery Draining While Taking Photos? Dynamic Voltage Scaling + Awinic’s SmartHolding Algorithm Tackle the Root Cause of VCM Power Consumption	2026-04-08

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

8606X_EVB_DB_V1.0 — 8606X_EVB_DB_V1.0 is an evaluation board for OIS chips, mainly used for functional assessment of OIS chips such as AW86064CSR、AW86066CSR、AW86068CSR、FU86064、FU86066、FU86068.

Evaluation board for OIS EVB assessment daughter board
