AW32L002QNR

32-bit Microcontrollers

Datasheet :
Preview - AW32L002QNR - Datasheet

Product details

Parameters

Frequency(MHz) 48
Flash Size (kB) 32
RAM Size(kB) 2
Control Interface IIC IIS PWM MIPI GPIO
I/O Channels 18
ADC Channels 1
Audio Sync. YES
LED Effcet Controller YES
Power Supply (Min) (V) 1.8
Power Supply (Max) (V) 5.5
Temperature -40℃~85℃
package QFN 3X3-20L

Package | Pins | Size

QFN 3X3-20L

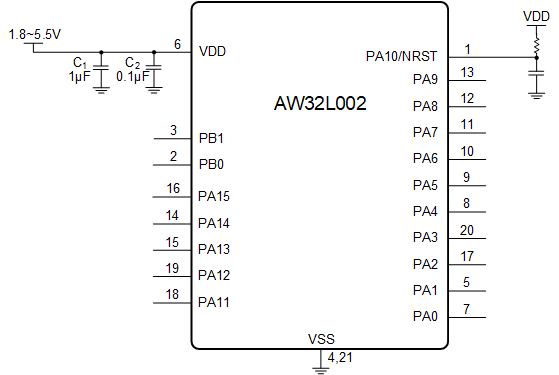

Features

1, Core and system 1.1, 32-bit MCU 1.2, Frequency up to 48MHz 2, Up to 32KB Flash and up to 2KB SRAM 3, Clock, reset and power management 3.1, POR, PDR, PVD 3.2, Built-in 8MHz HSI 3.3, Built-in 32.768KHz LSI 3.4, PLL for CPU clock 4, Low Power Run mode, Sleep mode, Low Power Sleep mode, Stop mode, Deep Stop mode and Standby mode 5, Total 7 timers: 5.1, One 16-bit general purpose timer (TIM3) 5.2, Two 16-bit basic timers (TIM16 / TIM17) 5.3, One 16-bit low power timer (LPTIM) 5.4, Two watchdog timers (IWDG and WWDG) 5.5, One 24-bit Systick timer 6, Up to 18 fast I/O ports: 7, Up to 4 communication interfaces: One UART, One LPUART, One I2C, One SPI (support I2S mode) 8, One 12-bit Analog-digital-converter (ADC) 9, One analog comparator 10, Two operational amplifiers 11, Embedded CRC engine 12, 96bit chip unique ID (UID) 13, Debug mode: Serial-debug-interface (SWD) 14, Working temperature range is -40°C ~ 85°C 15, Working supply range is 1.8V ~ 5.5V, where Standby mode is not supported from 1.8V to 2.0V 16, Available in TSSOP20 package

Description

The AW32L002 microcontrollers are 32-bit MCU. These devices have a maximum clocked frequency of 48MHz, built-in 32KB Flash storage, and contain an extensive range of peripherals and I/O ports. These devices contain one 12-bit ADC, one analog comparator, two operational amplifiers, one 16-bit general purpose timer and two 16-bit basic timers, as well as communication interfaces including one I2C, one SPI or I2S, one UART and one LPUART. The operating voltage of these devices is 1.8V to 5.5V, and the operating temperature range (ambient temperature) is -40°C to 85°C. Multiple sets of power-saving modes make the design of low-power applications possible.

Technical documentation
Type
Title
Language
Date
Datasheet DS_AW32L002_EN_V1.0 英文   2025-11-11

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

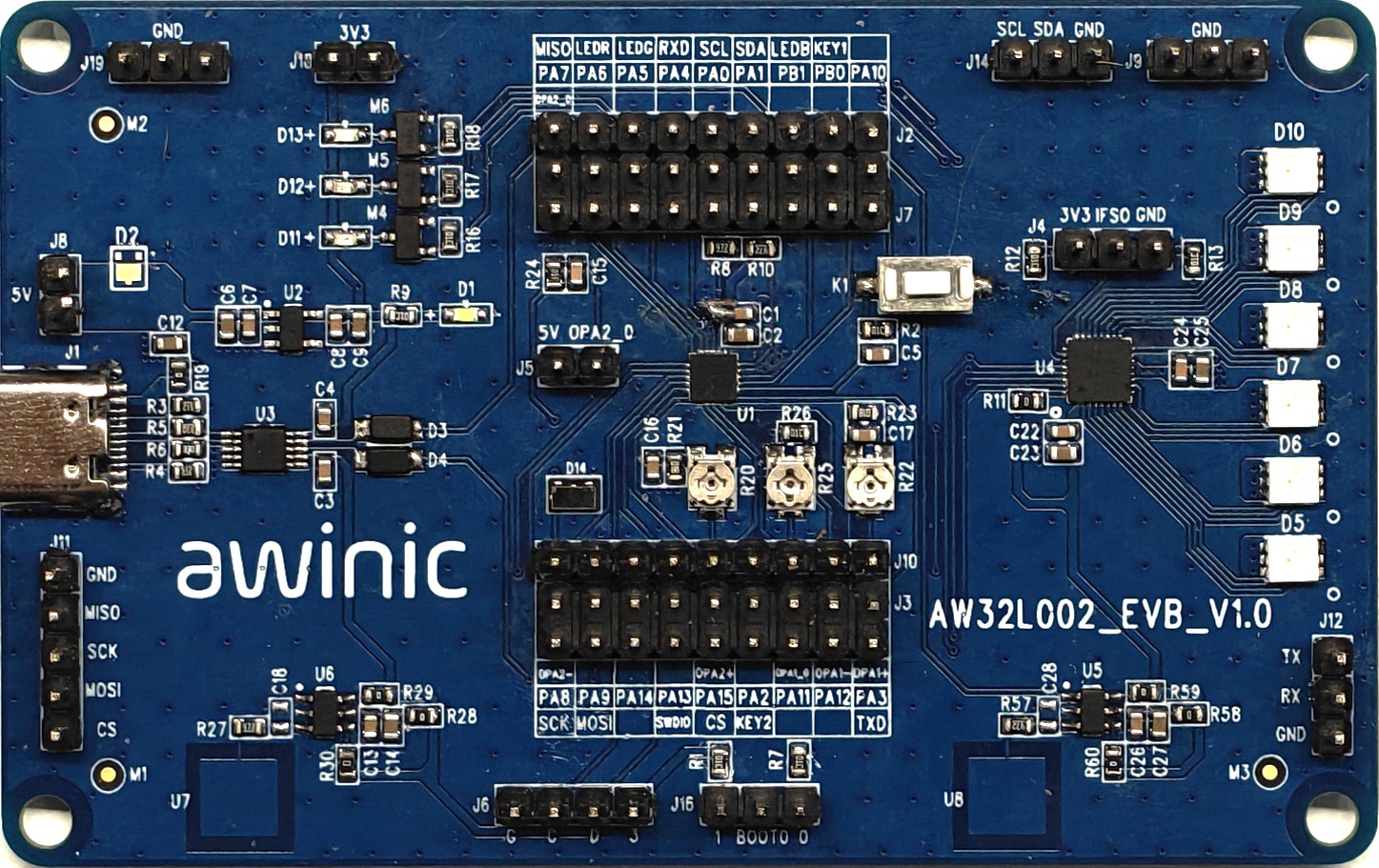

AW32L002_EVB_V1.0 — EVB evaluation board for Awinic MCU AW32L002QNR
