AWS72264SPR

36V, 4.5MHz, 16V/μs Op Amps

Datasheet :
Preview - AWS72264SPR - Datasheet

Product details

Parameters

Channel 4
Power Supply (Min) (V) 3
Power Supply (Max) (V) 36
Vos@25℃ (Max) (mV) 0.15
Vos TC (Typ) (µV/℃) 2
GBW (Typ) (MHz) 4.5
Slew rate (Typ) (V/us) 16
Iq per channel (Typ) (mA) 1.28
Vn @ 1 kHz (Typ) (nV/rtHz) 40
CMRR (Typ) (dB) 130
Rail-to-rail out
Temperature -40℃~125℃
IB (Typ) (pA) 15
Package SOIC-14L

Package | Pins | Size

SOIC-14L

Features

Supply Voltage: 3V to 36V Supply Current: Maximum 1650μA per channel Differential Input Voltage Range to Supply Rail Input Rail to V-, Rail to Rail Output Fast Response:4.5MHz Bandwidth,16V/μs Slew Rate,100ns Overload Recovery Low Offset Voltage:±150μV Maximum at 25°C Very Low THD+N: 0.0005% 4KV HBM, 1KV CDM, ±200mA Latch Up -40°C to 125°C Operation Temperature Range

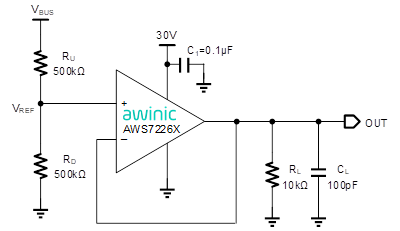

Description

The AWS7226X is newest high supply voltage amplifier with low offset, stable high frequency response. It incorporates AWINIC’s proprietary and patented design techniques to achieve very good AC performance with 4.5MHz bandwidth,16V/μs slew rate and low distortion. The input common-mode voltage range extends to V-, and the outputs swing rail-to-rail. The AWS7226X can be used as plug-in replacements for many commercially available op-amps to reduce offset and improve input/output range and performance. The combination of features makes the AWS7226X ideal choices for industrial control, motor control and portable audio amplification, sound ports, and other consumer audio.

Technical documentation
Type
Title
Language
Date
Product Design Guide AWS7226X Hardware Design Guide 英文   2026-04-09
Datasheet DS_AWS7226X_EN_V1.4 英文   2026-04-14

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AWS722X4SPR_EVB_V1.0 — The AWS722X4SPR EVB is a high-voltage general-purpose operational amplifier test board developed by Aiwei. The key test points of the chip are individually led out on the EVB board using SMA interfaces for easy demonstration and testing;

EVB evaluation board for operational amplifier AWS722X4SPR.

View options
Hardware development

Evaluation board

AWS722X4SPR_EVB_V1.0 — The AWS722X4SPR EVB is a high-voltage general-purpose operational amplifier test board developed by Aiwei. The key test points of the chip are individually led out on the EVB board using SMA interfaces for easy demonstration and testing;

EVB evaluation board for operational amplifier AWS722X4SPR.
