AWS72264SPR

36V, 4.5MHz, 16V/μs Op Amps

产品手册 :

在线预览 - AWS72264SPR-英语版 - 产品手册

参考价格：

1-99￥4.06
100-249￥3.33
250-499￥2.68
500-999￥2.11
1000+￥1.62

产品详细信息

Channel	4
Power Supply (Min) (V)	3
Power Supply (Max) (V)	36
Vos@25℃ (Max) (mV)	0.15
Vos TC (Typ) (µV/℃)	2
GBW (Typ) (MHz)	4.5
Slew rate (Typ) (V/us)	16
Iq per channel (Typ) (mA)	1.28
Vn @ 1 kHz (Typ) (nV/rtHz)	40
CMRR (Typ) (dB)	130
Rail-to-rail	out
Temperature	-40℃~125℃
IB (Typ) (pA)	15
Package	SOIC-14L

SOIC-14L

Supply Voltage: 3V to 36V Supply Current: Maximum 1650μA per channel Differential Input Voltage Range to Supply Rail Input Rail to V-, Rail to Rail Output Fast Response:4.5MHz Bandwidth,16V/μs Slew Rate,100ns Overload Recovery Low Offset Voltage:±150μV Maximum at 25°C Very Low THD+N: 0.0005% 4KV HBM, 1KV CDM, ±200mA Latch Up -40°C to 125°C Operation Temperature Range

The AWS7226X is newest high supply voltage amplifier with low offset, stable high frequency response. It incorporates AWINIC’s proprietary and patented design techniques to achieve very good AC performance with 4.5MHz bandwidth,16V/μs slew rate and low distortion. The input common-mode voltage range extends to V-, and the outputs swing rail-to-rail. The AWS7226X can be used as plug-in replacements for many commercially available op-amps to reduce offset and improve input/output range and performance. The combination of features makes the AWS7226X ideal choices for industrial control, motor control and portable audio amplification, sound ports, and other consumer audio.

技术文档

类型	项目标题	语言	日期
产品设计指南	AWS72264 硬件设计指南	中文	2024-02-06
产品设计指南	AWS7226X 硬件设计指南	中文	2024-08-28
产品手册	DS_AWS7226X_EN_V1.3	英文	2026-04-01

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

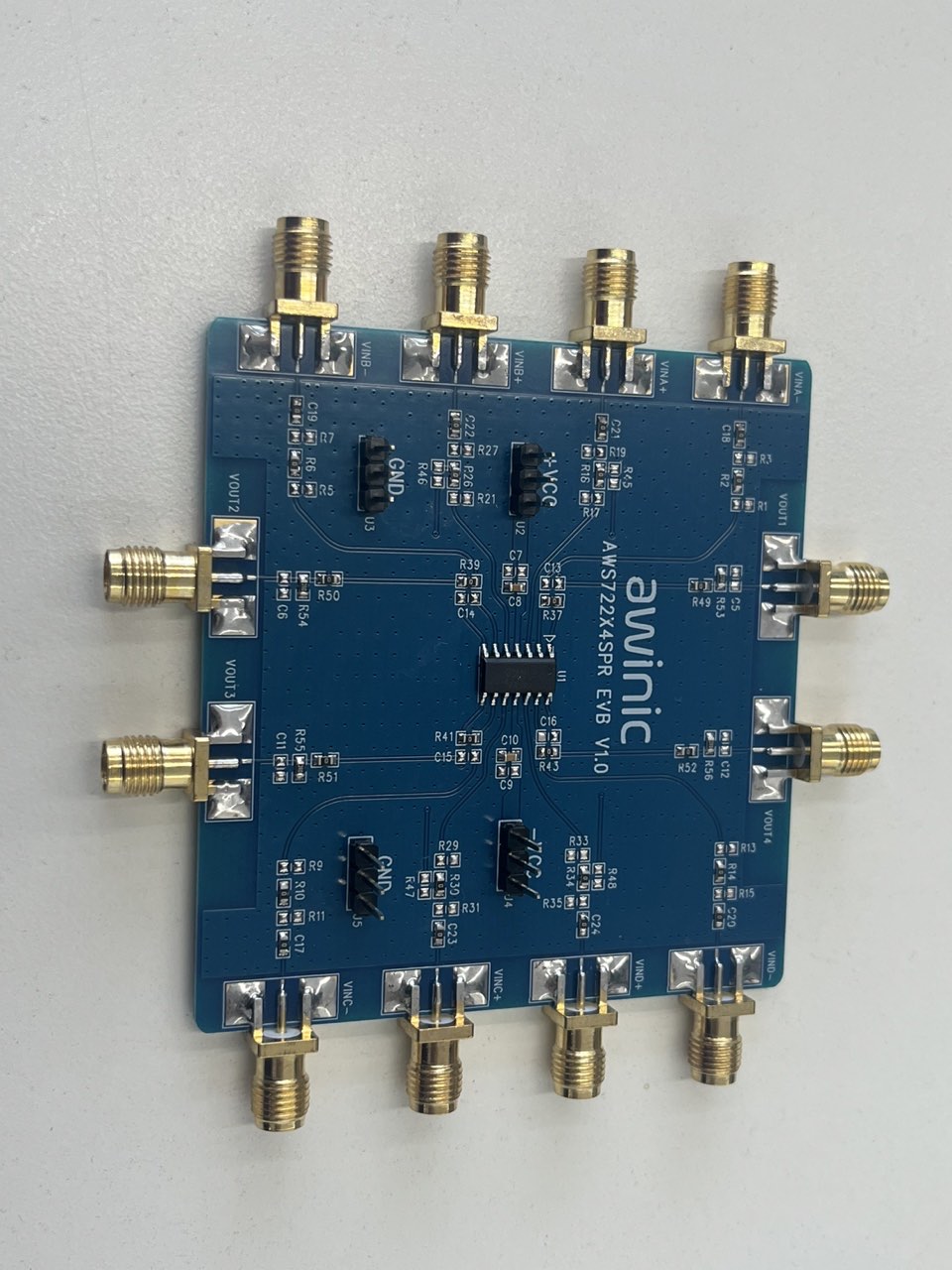

AWS722X4SPR_EVB_V1.0 — AWS722X4SPR EVB是艾为一款高压通用运算放大器测试板，芯片关键测试点均用SMA接口在EVB板上单独引出，方便演示和测试；
