AWP406036NDNR

60V 0.9Ω N-channel MOSFET

Datasheet :
Preview - AWP406036NDNR - Datasheet
Ref.Price
  • 1-99￥0.28
  • 100-249￥0.23
  • 250-499￥0.18
  • 500-999￥0.14
  • 1000+￥0.11

Product details

Type N
VDS (V) 60
VGS (V) ±20
VGS(th) typ.(V) 1.5
RDS(ON)@10V max.(mΩ) 2500
RDS(ON)@4.5V max.(mΩ) 3000
RDS(ON)@2.5V max.(mΩ) /
ID (A) 0.34
Qg @10V (nC) 1.41
Temperature -55℃~150℃
ESD YES
Package (mm) DFN 1X0.6-3L
DFN 1X0.6-3L

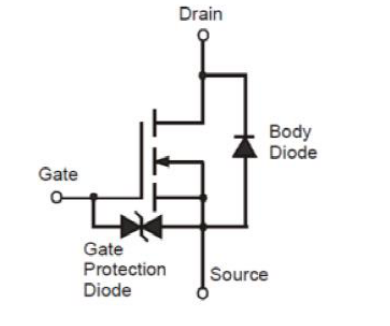

Trench Technology Power MOSFET Low RDS(ON) Low Gate Charge ESD Protect
VDS RDS(ON) Typ. ID 60V 0.9Ω@VGS=10V 0.34A 1.1Ω@VGS=4.5V

Technical documentation
Type
Title
Date
Datasheet DS_AWP406036_EN_V1.0   2026-03-30
