AW99706QNR

High Efficiency, 6-Channel WLED Driver

Datasheet :
Preview - AW99706QNR - Datasheet
Ref.Price
  • 1-99￥9.33
  • 100-249￥7.65
  • 250-499￥6.16
  • 500-999￥4.85
  • 1000+￥3.73

Product details

Total Max Number 6p12s
Per ch Max Current (mA) 50
Control Interface IIC PWM
Min Duty (%) 0.04
VRef_PWM 0.12
Flash Mode NO
Max Switching Frequency (MHz) 0.3~1.7
IO Level (V) 1.8;3.3
Power Supply (Min) (V) 2.7
Power Supply (Max) (V) 24
Temperature -40℃~85℃
Package (mm) QFN 3.5X3.5-20L
QFN 3.5X3.5-20L
 Wide Operating Input Voltage: 2.7V ~ 24V  High Output Voltage: Up to 40V  Channel Current Programmable: 5mA to 50mA  Channel Current Regulation:  Accuracy ±2%  Matching ±1%  PWM and/or I2C Control  Dimming Controls  Direct PWM Dimming up to 25kHz with Minimum 1% Duty (400ns)  Up to 12-bit Resolution with 2kHz input PWM signal  Up to 11-bit Resolution with 4kHz input PWM signal  Up to 10-bit Resolution with 8kHz input PWM signal  Up to 12-bit Dimming Resolution with I2C Control Mode  I2C Programs LED Current, Switching Frequency 300kHz to 1.7MHz  Embedded Memory by MTP  Protections  Input Undervoltage Lockout(UVLO)  LED Strings Open and Short Detection  Current Limit Protection  Over Voltage Protection  Over-Temperature Protection  WBQFN 3.5mmX3.5mmX0.75mm-20L Package

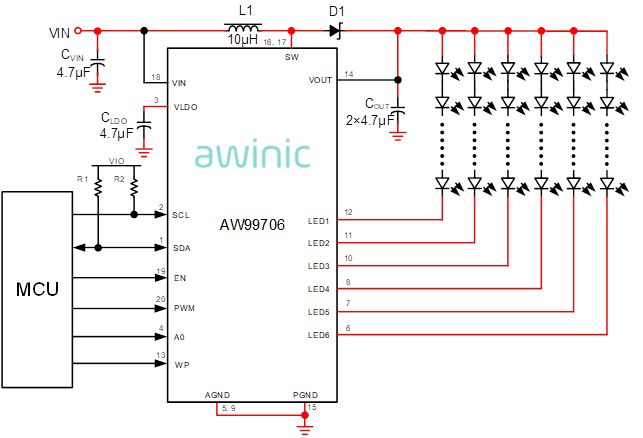

AW99706 is a highly accurate, highly matching six-string LCD backlighting power solution for notebook. It is a highly integrated step-up DC-DC converter operating with a wide input voltage for 2.7V to 24V and a temperature range from -40°C to 85°C. AW99706 integrates a high voltage MOSFET and six high accuracy, high voltage current sinks. Each current sink can be regulated up to 50mA. The LED current can be adjusted via an I2C interface and/or through a PWM signal. The PWM dimming resolution is up to 12-bit. AW99706 supports 300kHz to 1.7MHz switching frequency. Flexible selection of switching frequency according to efficiency and component size. AW99706 provides 3 ramp control modes for smooth transform of backlight brightness. Soft start mode can only be chose during the process of turning on and off backlight. Fade in/out mode and slope mode can be chose during both turning on/off backlight and dimming transition. Thorough protection features include over voltage limit, over temperature, over current protection, input undervoltage lockout, LED open and short detection. The protection status will be showed in register.

Technical documentation
Type
Title
Date
Datasheet DS_AW99706_EN_V1.2   2025-10-20

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

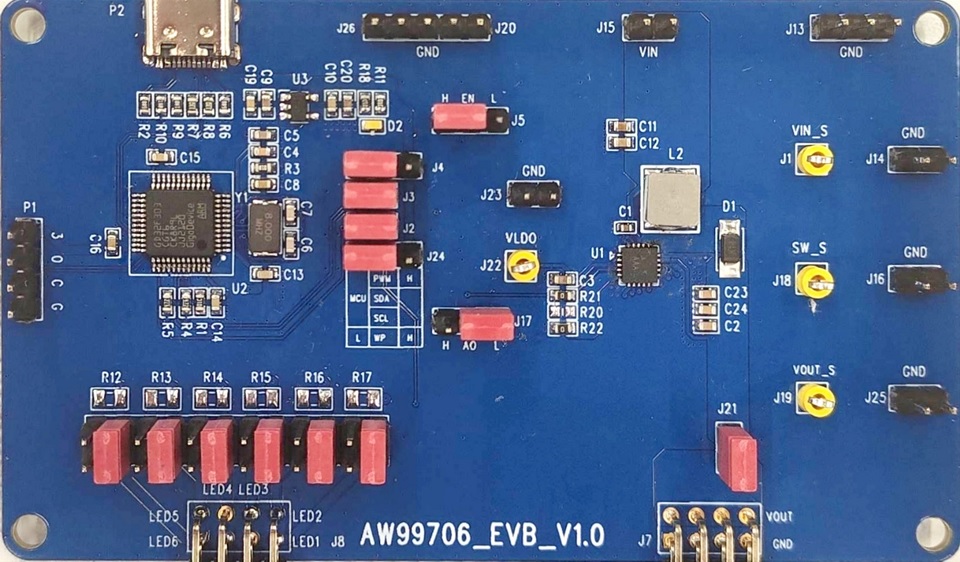

AW99706_EVB_V1.0 — AW99706_EVB_V1.0 is a six channel backlight evaluation mainboard, paired with a six channel LED light board, which can achieve six channels backlight AW99706QNR and AW99706AQNR function demonstrations.
