AW93001STR

A Low Power One-key Capacitor Touch Sensor

Datasheet :
Preview - AW93001STR - Datasheet

Product details

Parameters

Channel 1
LED Output 0
Gesture Detection Click
ISD (μA) /
Istandby (μA) 1.3
Capacitance Resolution(fF) 100
Power Supply (Min) (V) 2.4
Power Supply (Max) (V) 5.5
Temperature -40℃~85℃
Flash NO
Package (mm) SOT23-6L

Package | Pins | Size

SOT23-6L

Features

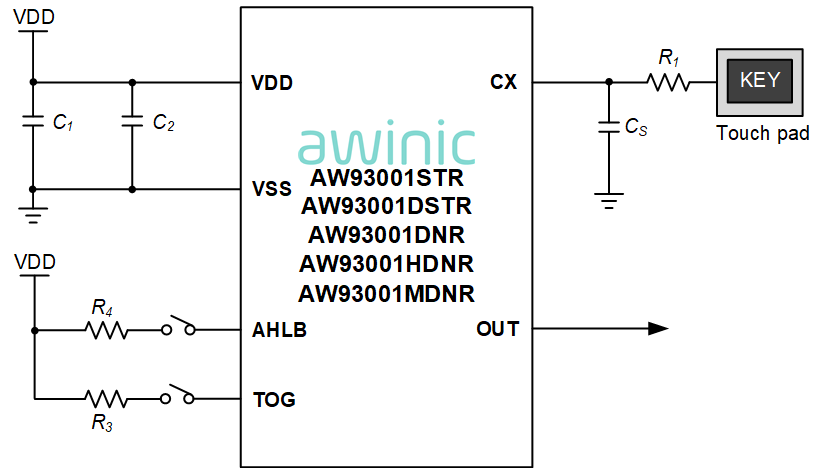

1 Sensitivity adjusted by the capacitance (0~50pF) outside (Refer to the DG_AW93001_Hardware_Design_Guide for details) 2 Maximum response time 1) Slow scan mode: 160ms(AW93001STR/BSTR/DNR/BDNR/CDNR/DDNR) 2) Slow scan mode: 64ms(AW93001EDNR/FDNR) 3) Fast scan mode: 48ms(AW93001STR/BSTR/DNR/BDNR/HDNR/GDNR/MDNR/LDNR/CSTR/DSTR/CDNR/DDNR/EDNR/FDNR) 3 Push-pull output (AW93001STR/DSTR/DNR/HDNR/MDNR) 1) Active high/low selected by pin AHLB 4 Push-pull output, active high(AW93001CDNR/EDNR) 5 Open-drain output, active low (AW93001BSTR/CSTR/BDNR/GDNR/LDNR/DDNR/FDNR) 6 Toggle output selected by pin TOG 7 Low power consumption 1) Slow scan mode (128ms): 1.3μA 2) Slow scan mode (32ms): 3.3μA 3) Fast scan mode (16ms): 5.4μA 8 2.4V~5.5V power supply 9 Operation temperature range: -40°C~85°C 10 Package 1) SOT23-6L 2) DFN 1.5mmx1.0mmx0.55mm-6L 3) DFN 2.0mmx2.0mmx0.75mm-6L 4) DFN 1.0mmx1.0mmx0.37mm-4L

Description

AW93001 is a single channel capacitive touch controller with low power consumption and wide operation voltage range. With the help of signal processing algorithms, the device is able to track slow environmental variations, and maintain high performance operation. AW93001 is designed for replacing traditional mechanical button. It can be applied in many fields, such as consumer electronics, white goods and appliances, etc.

Technical documentation
Type
Title
Language
Date
Product Design Guide AW93001 Hardware Design Guide 英文   2025-03-27
Datasheet DS_AW93001_EN_V2.8 英文   2025-05-28
Reliability Report Reliability Qualification Report For AW93001STR 英文   2026-05-19

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW93001X_EVB_V1.3 — AW93001X_EVB_V1.3 is the single channel capacitive touch controller EVB board. The power supply voltage is 2.4V~5.5V. The touch status can be displayed by the status of LED on the EVB board.

EVB evaluation board for single channel capacitive touch controller with low power consumption.

View options
Software development

APPLICATION SOFTWARE&FRAMEWORK

AW93001_GUI — AW93001 Tunning Tool

AW93001 GUI is a highly integrated and easy-to-use tool for product configuration and debugging. Intuitive interface and user-friendly operation can help customers shorten development cycle and complete system integration quickly.

View options
