| Channel |
1 |
| LED Output |
0 |
| Gesture Detection |
Click |
| ISD (μA) |
/ |
| Istandby (μA) |
1.3 |
| Capacitance Resolution(fF) |
100 |
| Power Supply (Min) (V) |
2.4 |
| Power Supply (Max) (V) |
5.5 |
| Temperature |
-40℃~85℃ |
| Flash |
NO |
| Package (mm) |
SOT23-6L |
1 Sensitivity adjusted by the capacitance (0~50pF) outside (Refer to the DG_AW93001_Hardware_Design_Guide for details)
2 Maximum response time
1) Slow scan mode: 160ms(AW93001STR/BSTR/DNR/BDNR/CDNR/DDNR)
2) Slow scan mode: 64ms(AW93001EDNR/FDNR)
3) Fast scan mode: 48ms(AW93001STR/BSTR/DNR/BDNR/HDNR/GDNR/MDNR/LDNR/CSTR/DSTR/CDNR/DDNR/EDNR/FDNR)

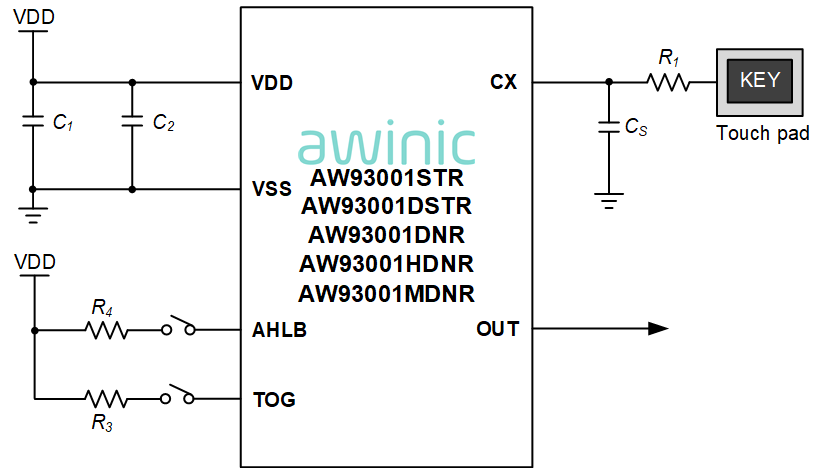

3 Push-pull output (AW93001STR/DSTR/DNR/HDNR/MDNR)
1) Active high/low selected by pin AHLB
4 Push-pull output, active high(AW93001CDNR/EDNR)
5 Open-drain output, active low (AW93001BSTR/CSTR/BDNR/GDNR/LDNR/DDNR/FDNR)
6 Toggle output selected by pin TOG
7 Low power consumption
1) Slow scan mode (128ms): 1.3μA
2) Slow scan mode (32ms): 3.3μA
3) Fast scan mode (16ms): 5.4μA
8 2.4V~5.5V power supply
9 Operation temperature range: -40°C~85°C
10 Package
1) SOT23-6L
2) DFN 1.5mmx1.0mmx0.55mm-6L
3) DFN 2.0mmx2.0mmx0.75mm-6L
4) DFN 1.0mmx1.0mmx0.37mm-4L
AW93001 is a single channel capacitive touch controller with low power consumption and wide operation voltage range.
With the help of signal processing algorithms, the device is able to track slow environmental variations, and maintain high performance operation.
AW93001 is designed for replacing traditional mechanical button. It can be applied in many fields, such as consumer electronics, white goods and appliances, etc.
