AW87392EFCR

8.5V Smart Adaptive DO-Charge pump High Efficiency Low Noise Multi-Level AGC Smart K Audio Amplifier

Datasheet :

Product details

Parameters

Power Supply (Min) (V)	2.5
Power Supply (Max) (V)	5.5
PVDD Voltage(V)	8.5
Boost Type	Adaptive DO-Charge Pump(inductor free)
PO(W) （8Ω&THD=1%）	2.7W@4.25V
SPK Noise(uV)	20uV@18dB 30uV@24dB
Protection	Multi-Level AGC
Control Interface	IIC
RCV mode	YES
RCV Noise(uV)	7uV@0dB
Temperature	-40℃~85℃
Package (mm)	FCQFN 2.5X2-16L

Package | Pins | Size

FCQFN 2.5X2-16L

Features

 Multi-Level AGC audio algorithm, effectively eliminates noise and makes sound smooth  Smart Adaptive DO-Charge pump technology(Patented)：  Low Quiescent current：4.5mA@3.6V  Overall efficiency up to 88%  Output Power：2.8W@8Ω ; 3.1W@6Ω  Low Noise：  RCV：7μV  SPK：20μV  Low THD+N：0.03%  Support high power receiver stereo application  Support D speaker , D receiver 2-in-1 application  LRCV receiver：0dB，En=7μV，0.14W@THD+N=1%  SRCV receiver：0dB，En=8μV，0.56W@THD+N=1%  Support 1.8V I2C Control  Over current protection, over-temperature protection and short-circuit protection  Super TDD-Noise suppression  Excellent pop-click suppression  High PSRR：85dB（217Hz）  FCQFN 2.5mmX2.0mmX0.55mm-16L package

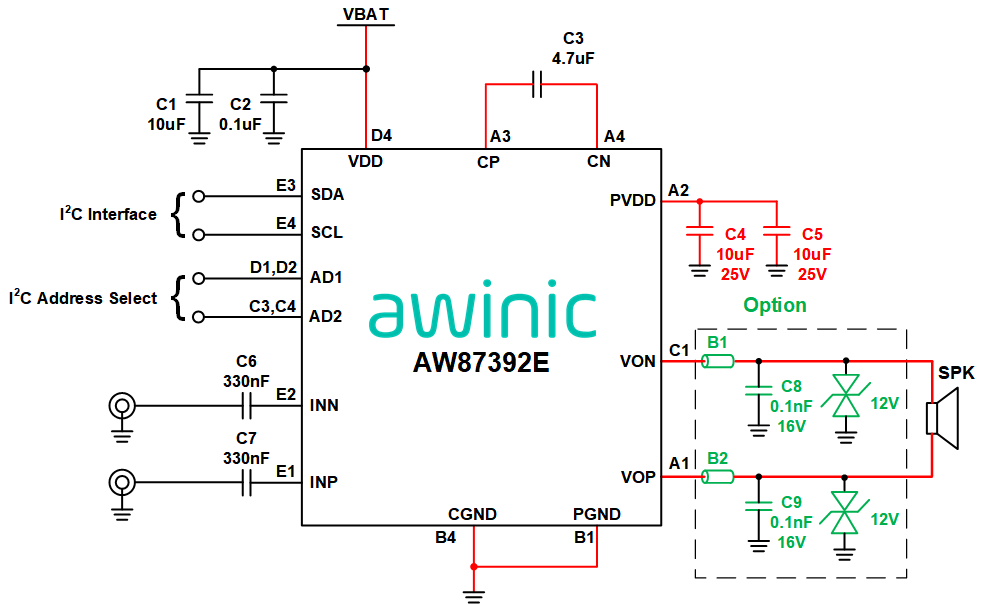

Description

AW87392E is specifically designed to improve the musical output dynamic range, enhance the overall sound quality, which is a new high efficiency, low noise, constant large volume, Smart K audio amplifier. AW87392E integrates awinic’s proprietary Multi-Level AGC audio algorithm, effectively eliminating music noise and improving sound quality and volume. AW87392E integrated efficiency up to 95.4% of Adaptive DO-Charge pump technology, significantly improving the dynamic range of the music output and power consumption of audio system. AW87392E noise floor is as low as to 20μV at speaker mode, with 105dB high signal-to-noise-ratio (SNR). The ultra-low distortion 0.03% and unique Multi-Level AGC technology bring high quality music enjoyment. AW87392E controls internal registers through the I2C interface. Register parameters include output voltage, power amplifier gain, Multi-Level AGC parameters etc. AW87392E built-in over current protection, over temperature protection and short circuit protection function, effectively protect the chip. AW87392E features small FCQFN 2.5mmX2.0mmX0.55mm-16L package.

Technical documentation

	Type	Title		Language		Date
	Datasheet	DS_AW87392EFCR_EN_V1.0		英文		2025-09-19
