| Pole Type |
omnipolar |
| VDD (Min) (V) |
1.6 |
| VDD (Max) (V) |
5.5 |
| Sensitivity Bop (Gs) |
±30 |
| Sensitivity Brp (Gs) |
±23 |
| BHY (Gs) |
7 |
| IDD_AVG (μA) |
0.8 |
| IDD_Sleep (μA) |
0.43 |
| Channel |
1 |
| Temperature |
-40℃~85℃ |
| Output Type |
Push Pull |
| Package (mm) |
DFN 1.6X1.2-4L |
Medium sensitivity omnipolar operation
Micropower operation:Typ 0.8μA (average:VDD=1.8V)
On board voltage regulator for 1.6V to 5.5V range
Magnetic threshold options (Sensitivity Bop, Brp) :Bop=±30Gs, Brp=±23Gs
Industry-leading ultra-low power consumption
AW86512EBADNR: 20Hz sampling rate options
Wide operating temperature range: -40°C to 85°C
WBDFN 1.6mm×1.2mm-4L package

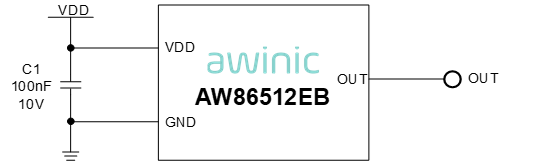

The AW86512EBADNR device is an ultra-low-power digital-switch Hall effect sensor, designed for the most compact and battery-sensitive systems. The supply range of AW86512EBADNR is 1.6V to 5.5V to support portable equipment. To minimize PCB space, the AW86512EBADNR have ultra-small packages: WBDFN 1.6mm×1.2mm-4L
When the magnetic field strength is greater than Bop, then the device output is pulled low; When the magnetic field strength is less than Brp, then the device output is pulled high; When the magnetic field strength is between Bop and Brp, then the device output remains in the previous state.
