AW8637CDNR

H-Bridge DC Motor Driver

Datasheet :
Preview - AW8637CDNR - Datasheet

Product details

Parameters

Motor Type BDC Motor
H bridge 1
Micro Step -
VDD (Min) (V) 0
VDD (Max) (V) 12
Peak Current (A) 1.1
Ron (mΩ) 950
Control Mode GPIO
CTRL IF PWM
Temperature -40℃~85℃
Function -
Package (mm) DFN 2X2-8L

Package | Pins | Size

DFN 2X2-8L

Features

Drives a DC Motor or Other Loads Rdson HS + LS: 950mΩ 1.1-A Maximum Drive Current VDD: 0V to 12V Supply Voltage Range VCC: 1.8V to 5.5V Supply Voltage Range Low-Power Sleep Mode With 120-nA Maximum Sleep Current DFN 2mm X2mm X0.75mm-8L package Short-Circuit Protection Over-Temperature Protection Under-Voltage Protection

Description

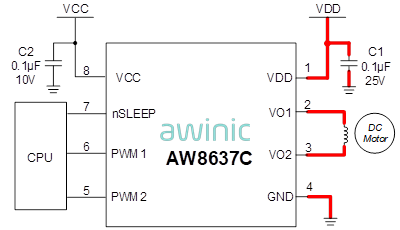

The AW8637C provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device can drive one dc motor or other devices like solenoids. The output driver block consists of N-channel power MOSFETs configured as an H-bridge to drive the motor winding. An internal charge pump generates needed gate drive voltages. The AW8637C can supply up to 1.1A of output current. It operates on a motor power supply voltage from 0V to 12V, and a device power supply voltage of 1.8V to 5.5V. The AW8637C has a PWM (PWM1-PWM2) input interface, witch is compatible with industry standard devices. Internal shutdown functions are provided for Over-current protection, Short-circuit protection, Under-voltage lockout, and Over-temperature protection.

Technical documentation
Type
Title
Language
Date
Datasheet DS_AW8637C_EN_V1.4 英文   2025-09-10
