AW86006CSR

Optical Image Stabilization (OIS) Controller and Driver

Datasheet :

Product details

Parameters

Actuator Type	SOC-OIS
Output I(mA)	OIS:±200 / AF:±130
VDD (Max) (V)	3.3
VDD (Min) (V)	2.7
I2C (Hz)	400K<br>1M
I2C Addr	Configurable
IQ (mA)	5
ISD (μA)	<10
Temperature	-40℃~85℃
Control Mode	OIS:CL PID / AF:VRC
ADC (bit)	12
Package (mm)	WLCSP 4.2X1.3-27B

Package | Pins | Size

WLCSP 4.2X1.3-27B

Features

Core:
- ARM 32-bit STARCU with FPU ａｎｄ DSP
- Frequency up to 56MHz
- 84 DMIPS, 1.5DMIPS/MHz
Memories:
- 64KByte Flash Memory,
- 4KByte ROM for boot loader,
- 40KByte Program SRAM
- 8KByte Data SRAM
12-bit AD Converter, Input 4-ch
10-bit DA Converter, Output 2-ch
Hall Bias Circuit, 2-ch
2 Programmable Gain Amplifiers
SPI Master/Slave/Monitor I/F
2 I2C Master/Slave I/F
- Slave address: 0xD2/0xD3(Default)
2 General Timers ａｎｄ a Watch Dog Timer
Driver: Constant Current Linear Driver
- Output 2-ch for OIS, Ifull=200mA
- Output 1-ch for AF(bi−direction), Ifull=130mA
Shutdown mode with 10A consumption
WLCSP 4.2mm × 1.3mm × 0.3mm - 27B package

Description

The AW86006 is an optical image stabilization (OIS) controller ａｎｄ driver which also support open-auto focus driving. It is always used ｉｎ a camera module of smart mobile phone ｏｒ other camera equipment.
The AW86006 integrates an on-chip 32-bit CPU as controller, a flash memory for program ａｎｄ user data, an ADC with 4 channels, 2 DAC for calibrating hall sensor's offset, 2 hall bias circuit ａｎｄ 3 H-Bridge drivers for OIS ａｎｄ AF.
There is a SPI I/F module which supports master, slave ａｎｄ monitor on chip. The monitor function makes it possible for multiple OIS drivers to exist one camera module. Two I2C are available, one of them is always slave.
The STARCU is Harvard structure ａｎｄ has own DSP ａｎｄ FPU. The bus for code connects flash, ROM ａｎｄ code SRAM ａｎｄ the bus for data connects data SRAM ａｎｄ APB bridge. With the 56 MHz clock, STARCU can provide 84DMPIS computing power for algorithm.

Technical documentation

Type	Title	Language	Date
Product Application Note	AW86006CSR Optical Image Stabilization (OIS) Controller and Driver Application Notes for Power Supply V1.4	英文	2023-06-19
Datasheet	DS_AW86006CSR_EN_V1.0.5	英文	2024-01-24
Product Design Guide	AW86006硬件设计指南	英文	2024-01-30
New product launch	【New Product Launch】Awinic Empowers the Launch of ASUS ROG9 with 6-Axis Anti-Shake Hybrid Gimbal 4.0	英文	2025-08-21

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

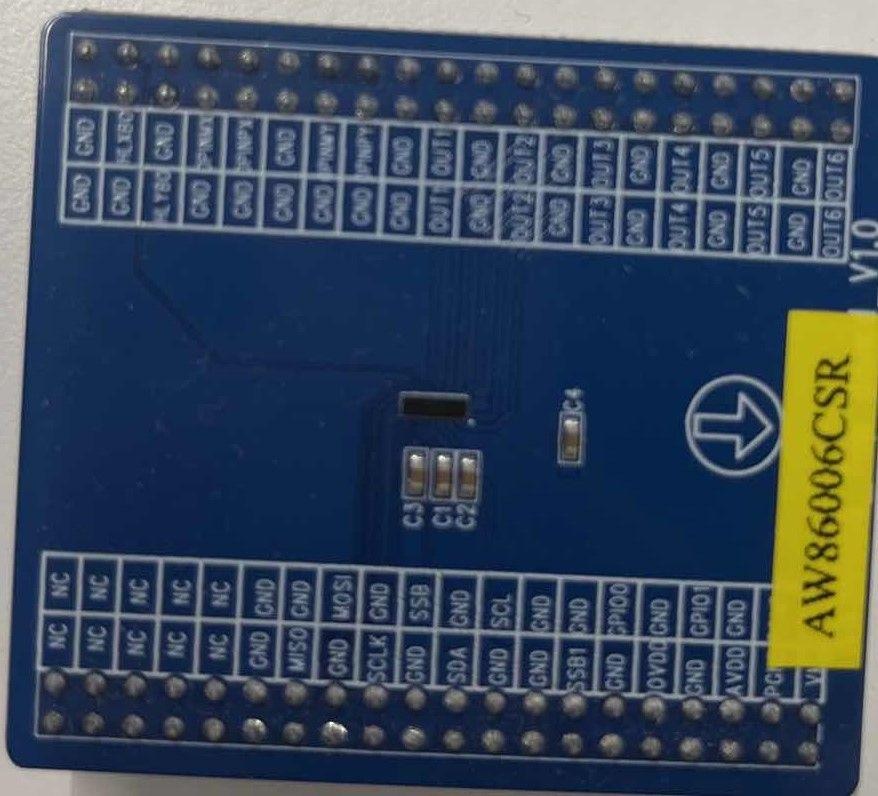

AW86006 Top Board V1.0 — The AW86006 Top Board V1.0 is a small board for the AW86006CSR chip. When paired with the main board, it can be used to evaluate the OIS function.
