AW85815QNR

4.5 V to 20 V, 30W Stereo, Digital Input, High Efficiency Class-D Audio Amplifier with SKTune Algorithm

Datasheet :
Preview - AW85815QNR - Datasheet

Product details

Parameters

Control Interface IIC
Temperature -40℃~85℃
DSP YES
Noise (μV) 32
PO(W)（8&THD=1%） 1×60W@2Ω, 18V, THD+N <1% in PBTL mode
PO(W)（4&THD=1%） 2×30W@4Ω, 18V, THD+N<1% in BTL mode
IO Supply (Max) (V) 3.63
IO Supply (Min) (V) 1.62
Digital Supply (Max) (V) 3.63
Digital Supply (Min) (V) 1.62
Power Supply (Max) (V) 20
Power Supply (Min) (V) 4.5
IV Sense NO
Loadmin（Ω) 2
Channel 2

Package | Pins | Size

QFN 5X5-32L

Features

 Integrates SKTune Algorithm Smart Protection (Anti-chip Voltage Limiter Thermal Limiter, Auto Voltage Monitor) Power Tracking Control(PTC) Input Mixer, Output Crossbar 2x20 Parametric Equalizers (EQ) Dynamic Equalizer Enhancement (DEE) Multi-band Dynamic Range Control Awinic Enhanced Stereo Surrounding (AES) Awinic Bass Enhancement (ABE)  Output Power 2×30W@4Ω, 18V, THD+N<1% in BTL mode 1×60W@2Ω, 18V, THD+N <1% in PBTL mode  Excellent Audio Performance THD+N≤0.02%@6Ω,1 W,1 kHz, PVDD = 12 V SNR≥110dB@4Ω,1%,1 kHz, PVDD = 18 V, A-weighted Noise Level ≤32uVrms  High-efficiency Class-D Amplifier Power efficiency 90%, RDSon 90mΩ Low quiescent current < 17 mA Supports Low-Loss Mode  I2S/TDM interface I2S, Left-Justified and Right-Justified Supports 1/2/4/6/8/16 Slots TDM Supports 32k,44.1k,48k,88.2k,96k,192kHz Sample Rates SDOUT for audio monitoring or echo cancellation Data Width: 16, 20, 24, 32 Bits  I2C-bus control interface(1MHz)  Extensive Pop-Click Suppression  Volume control (from -96dB to 0dB)  Support Spread Spectrum to Enhance EMI Performance  Multiple switching frequencies AM/FM avoidance Supports 384kHz、480kHz、576kHz、768kHz、960 kHz、1200kHz switching frequencies  Power Supplies PVDD: 4.5V~20V DVDD: 1.8V/3.3V  Integrated Self-Protection Over-Current Protection (OCP) Over-Temperature Protection (OTP) Over / Under-Voltage Lock-out (OVLO/UVLO) DC-detect and short-circuit protection

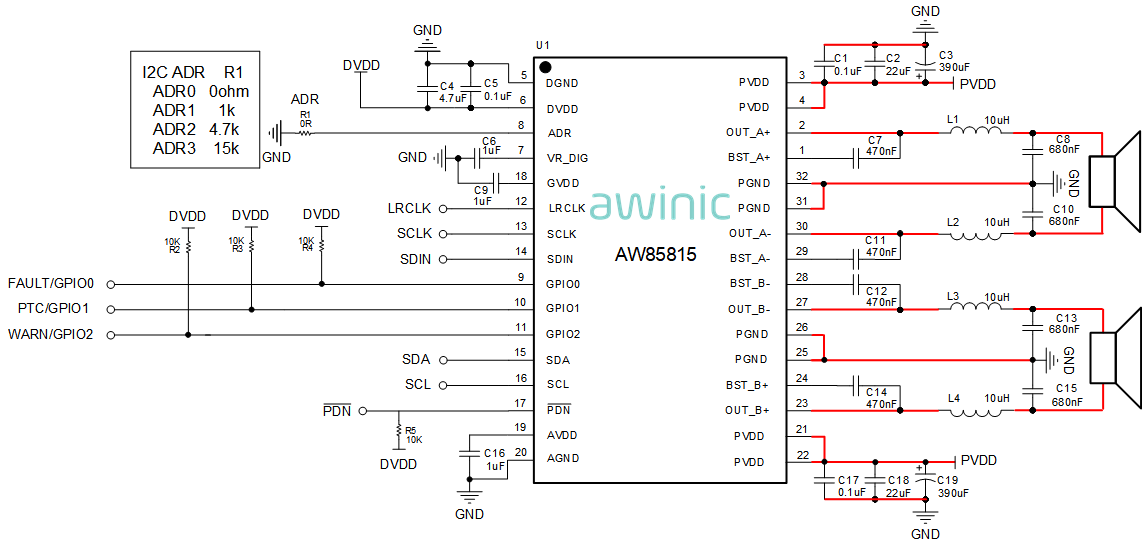

Description

The AW85815 is a high-efficiency, stereo digital class D audio amplifier with low power dissipation and sound enrichment. The device employs a multiple switching frequency option and Spread Spectrum technology to enhance EMI performance, avoid AM/FM interferences. The powerful audio DSP core of AW85815 implements a proprietary algorithm called PTC (Power tracking Control), The PTC algorithm detects the upcoming audio power demand and provides a PWM control signal for the former DC-DC converter via the GPIO pin. Compared with a fixed PVDD, a variable PVDD that fluctuates based on the audio signal significantly improves efficiency, lowers idle current, and reduces heat. AW85815 supports Over-Current Protection, Over-Temperature Protection, DC Protection, Under-Voltage/Over-Voltage Protection, short-circuit Protection to protect the device. AW85815 is available in a WBQFN-5X5 32L Package.
