| Control Interface |
IIC |
| Temperature |
-40℃~85℃ |
| DSP |
YES |
| Noise (μV) |
32 |
| PO(W)（8&THD=1%） |
1×60W@2Ω, 18V, THD+N <1% in PBTL mode |
| PO(W)（4&THD=1%） |
2×30W@4Ω, 18V, THD+N<1% in BTL mode |
| IO Supply (Max) (V) |
3.63 |
| IO Supply (Min) (V) |
1.62 |
| Digital Supply (Max) (V) |
3.63 |
| Digital Supply (Min) (V) |
1.62 |
| Power Supply (Max) (V) |
20 |
| Power Supply (Min) (V) |
4.5 |
| IV Sense |
NO |
| Loadmin（Ω) |
2 |
| Channel |
2 |
Integrates SKTune Algorithm
Smart Protection (Anti-chip Voltage Limiter Thermal Limiter, Auto Voltage Monitor)
Power Tracking Control(PTC)
Input Mixer, Output Crossbar
2x20 Parametric Equalizers (EQ)
Dynamic Equalizer Enhancement (DEE)
Multi-band Dynamic Range Control
Awinic Enhanced Stereo Surrounding (AES)
Awinic Bass Enhancement (ABE)
Piano Noise Suppression
Output Power
2×30W@4Ω, 18V, THD+N<1% in BTL mode
1×60W@2Ω, 18V, THD+N <1% in PBTL mode
Excellent Audio Performance
THD+N≤0.02%@6Ω,1 W,1 kHz, PVDD = 12 V
SNR≥110dB@4Ω,1%,1 kHz, PVDD = 18 V, A-weighted
Noise Level ≤32uVrms
High-efficiency Class-D Amplifier
Power efficiency 90%, RDSon 90mΩ
Low quiescent current < 17 mA
Supports Low-Loss Mode
I2S/TDM interface
I2S, Left-Justified and Right-Justified
Supports 1/2/4/6/8/16 Slots TDM
Supports 32k,44.1k,48k,88.2k,96k,192kHz Sample Rates
Data Width: 16, 20, 24, 32 Bits
I2C-bus control interface(1MHz)
Extensive Pop-Click Suppression
Volume control (from -96dB to 0dB)
Support Spread Spectrum to Enhance EMI Performance
Multiple switching frequencies
AM/FM avoidance
Supports 384kHz、480kHz、576kHz、768kHz、960 kHz、1200kHz switching frequencies
Power Supplies
PVDD: 4.5V~20V
DVDD: 1.8V/3.3V
Integrated Self-Protection
Over-Current Protection (OCP)
Over-Temperature Protection (OTP)
Over / Under-Voltage Lock-out (OVLO/UVLO)
DC-detect and short-circuit protection

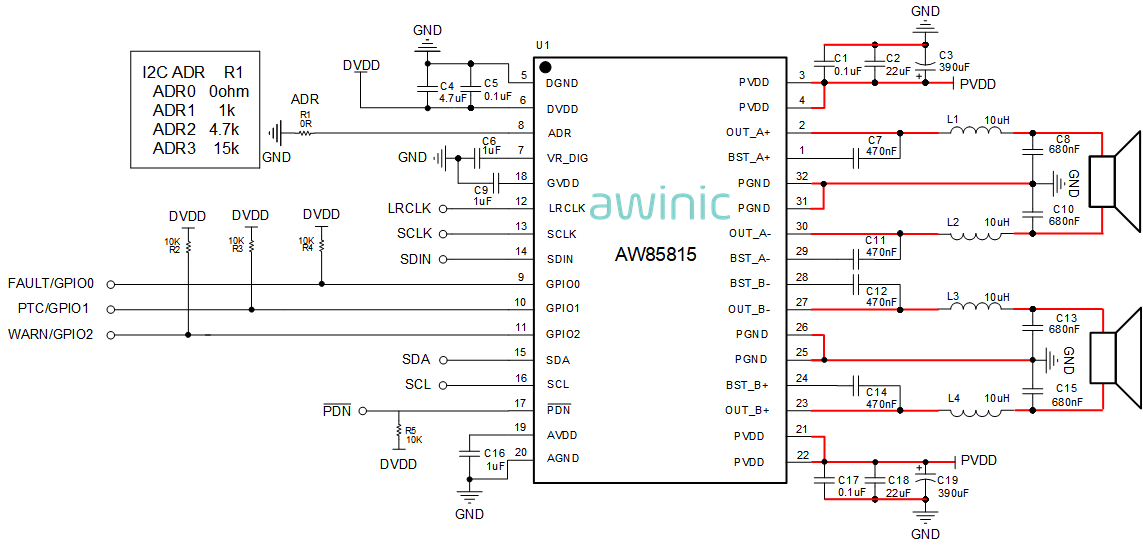

The AW85815 is a high-efficiency, stereo digital class D audio amplifier with low power dissipation and sound enrichment.
The device employs a multiple switching frequency option and Spread Spectrum technology to enhance EMI performance, avoid AM/FM interferences.
The powerful audio DSP core of AW85815 implements a proprietary algorithm called PTC (Power tracking Control), The PTC algorithm detects the upcoming audio power demand and provides a PWM control signal for the former DC-DC converter via the GPIO pin. Compared with a fixed PVDD, a variable PVDD that fluctuates based on the audio signal significantly improves efficiency, lowers idle current, and reduces heat.
AW85815 supports Over-Current Protection, Over-Temperature Protection, DC Protection, Under-Voltage/Over-Voltage Protection, short-circuit Protection to protect the device.
AW85815 is available in a WBQFN-5X5 32L Package.
