AW83118GTSR

30W, 4.5V to 26V, High efficiency Stereo Class D Audio Amplifier with Low Idle Power Dissipation

Datasheet :

Product details

Parameters

Power Supply (Min) (V)	4.5
Power Supply (Max) (V)	26
Boost Type	/
PO(W) （8&THD=1%）	2×30W@24V
SPK Noise(uV)	65uV@20dB
Protection	/
Control Interface	Hardware
Temperature	-40℃~105℃
Package (mm)	ETSSOP-32L

Package | Pins | Size

ETSSOP-32L

Features

Wide Voltage Range: 4.5V - 26V
Output Power:
- BTL mode: 2×30W@8Ω, 24V,THD+N<1%
- PBTL mode: 1×60W@4Ω, 24V,THD+N<1%
Low THD+N: 0.03% at 1W, 1kHz input, 8Ω
17mA Idle Current in Low-Loss Mode
Overall efficiency up to 94%
Multiple switching frequencies
- AM avoidance
- Master/Slave synchronization
- Up to 1.2MHz switching frequency
Programmable Power Limit
Support Spread Spectrum to Enhance EMI Performance
Support parallel BTL Mode and MONO Mode
Integrated self-protection：over-voltage, under-voltage, over-temperature, DC-detect and short-circuit protection
ETSSOP 11mm×8.1mm -32L Package

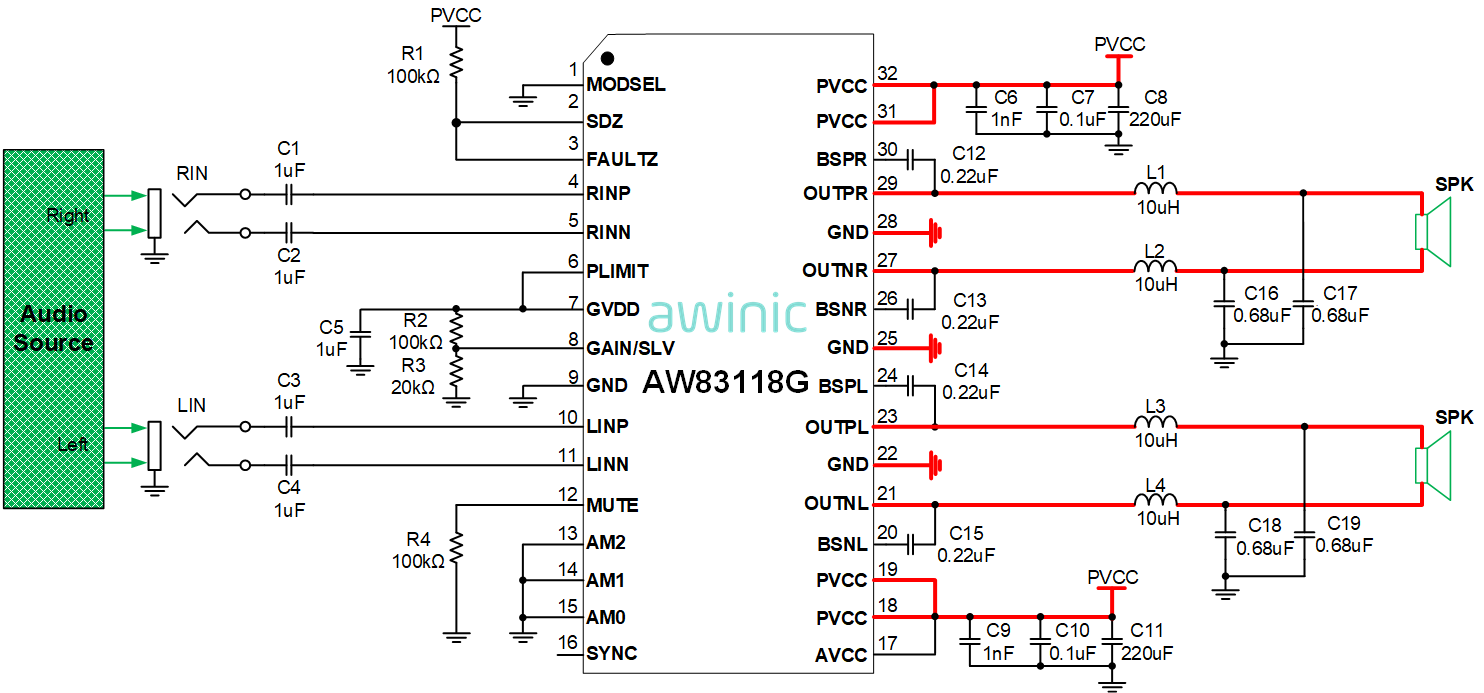

Description

AW83118G is a stereo efficient, Class-D audio power amplifier for driving speakers up to 60W/4Ω in PBTL mode. It can run 2×30W/8Ω without heat sink on a dual layer PCB. In Low-Loss mode, it consumes a low idle current, allowing for longer audio play and improved thermal performance in Speaker bar and Consumer Audio applications.

The AW83118G advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences; this is achieved together with an option of Master/Slave mode, making it possible to synchronize multiple devices.

The AW83118G built-in over-voltage, under-voltage protection, DC protection, thermal protection and short-circuit protection, effectively prevent it from being damaged.

AW83118G is available in ETSSOP 11mm×8.1mm- 32L package.

Technical documentation

	Type	Title		Language		Date
	Datasheet	DS_AW83118G_EN_V1.1		英文		2023-06-06

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW83118TSR EVB V1.2 — EVB board for analog audio amplifier AW83118TSR AW83118GTSR applications

EVB board for analog audio amplifier AW83118TSR AW83118GTSR applications
