AW8155BFCR

Non-Crack-Noise, Ultra-Low-THD+N, Ultra-Low-EMI, Second Generation Class-D Audio Amplifier

Datasheet :
Preview - AW8155BFCR - Datasheet

Product details

Parameters

Power Supply (Min) (V) 2.5
Power Supply (Max) (V) 5.5
PO(W)（8Ω&THD=1%） 1.25W@5V
SPK Noise(uV) mode1：55uV@8V/V<br>mode2：78uV@12V/V<br>mode4：92uV@12V/V
Protection NCN
Control Interface one-wire
Temperature -40℃~85℃
Package (mm) FCQFN 1.5X1.5-9L

Package | Pins | Size

FCQFN 1.5X1.5-9L

Features

Ultra low THD+N:0.007%
AB/D operate mode
Two NCN level：0.65w and0.85w
Unique RNS
High SNR:95dB
EEE Function, Greatly reduces EMI over the full bandwidth
Excellent Pop-Click Suppression
No VREF capacitor
Pin compatible with AW8155(A) AW8145
One-pulse control
Filter-Free Class-D Architecture
High PSRR (75dB at 217Hz)
Low Shutdown Current (<0.1uA)
Power Supply Range: 2.5V~5.5V
Over-Current Protection
Over-Temperature Protection
Small FCQFN 1.5mmX1.5mmX0.55mm-9L Package

Description

The AW8155B is a non-crack-noise (NCN), ultra-low-EMI, filter-free, AB/D output mode selection, unique RNS technology, second generation Class-D audio amplifier. Ultra low THD+N, Unique NCN function, which adjusts the system gain automatically while detecting the “Crack” distortion of output signal, protects the speaker from damage at high power levels and invites the user to bask in immense musical enjoyment. AW8155B NCN output power can be set to 0.65w or 0.85w for different speakers, this feature is embedded in order to protect speakers from damage caused by an excessive sound level. The AW8155B features a unique RNS tech-nology, which effectively reduces RF energy, attenuate the RF TDD-noise, an acceptable audible level to the customer. The AW8155B features the EEE (Enhanced Emission Elimination) function which greatly reduces EMI over the full bandwidth. The AW8155B achieves better than 20dB margin under FCC limits with 24 inch of cable. The filter-free PWM architecture and internal gain setting reduces external components count, board area consumption, system cost and simplifies the design. The over-current, over-temperature is prepared inside of the de-vice. The AW8155B is available in an ultra small FCQFN 1.5mmX1.5mmX0.55mm-9L package. The AW8155B is specified over the industrial temperature range of -40℃ to +85℃.

Technical documentation
Type
Title
Language
Date
Datasheet DS_AW8155B_EN_V1.5 英文   2023-04-28
Technical articles [Technical Post] Aligned with the New National Standard! AWINIC Automotive-Grade Broadcast FM-LNA Ensures In-Vehicle Emergency Communication in Extreme Disaster Scenarios 英文   2026-06-10

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

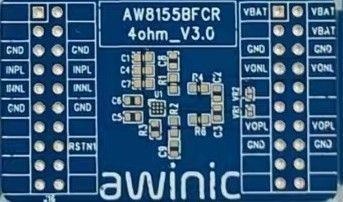

AW8155BFCR 4ohm_V3.0 — Dedicated EVB board for analog audio amplifiers AW8155BFCR

Dedicated EVB board for analog audio amplifiers AW8155BFCR

View options
Software development

APPLICATION SOFTWARE&FRAMEWORK

AW8155B_GUI — AW8155BFCR Tunning Tools

The AW8155B GUI is used for product configuration and debugging processes. Intuitive interface and user-friendly operation can help customers shorten the development cycle and quickly complete system integration.

View options
Hardware development

Evaluation board

AW8155BFCR 4ohm_V3.0 — Dedicated EVB board for analog audio amplifiers AW8155BFCR

Dedicated EVB board for analog audio amplifiers AW8155BFCR

View options
Software development

APPLICATION SOFTWARE&FRAMEWORK

AW8155B_GUI — AW8155BFCR Tunning Tools

The AW8155B GUI is used for product configuration and debugging processes. Intuitive interface and user-friendly operation can help customers shorten the development cycle and quickly complete system integration.
