| Data Rate (Max) (Mbps) |
24 |
| VCCA (Min) (V) |
1.1 |
| VCCA (Max) (V) |
3.6 |
| VCCB (Min) (V) |
1.65 |
| VCCB (Max) (V) |
5.5 |
| ICCA+ICCB (Max) (μA) |
9 |
| Channel |
2 |
| Support |
Open Drain
Push-Pull |
| Temperature |
-40℃~85℃ |
| Transmission Direction |
Auto |
| Package (mm) |
FOWLP 0.928X1.928-8B |
Voltage Level Translator Without Direction-Control Signal
Maximum Data Rates
-24Mbps (Push Pull)
-2Mbps (Open Drain)
Power Supply Range:
-A Port and VCCA: 1.1V to 3.6 V
-B Port and VCCB: 1.65 V to 5.5 V
-VCCA ≤ VCCB
Pull Up Resistors are Integrated in A Port and B Port
No Power-Supply Sequencing Required: Either VCCA or VCCB Can be Ramped First
Support Ultra-Low Power Consumption Mode with OE Pin is Low Voltage Level
Latch -Up Performance Exceeds ±200mA Under JESD 78 Standard
DFN 1.4mm×1.0mm×0.37mm-8L Package
FOWLP 0.928mm×1.928mm×0.463mm-8B Package

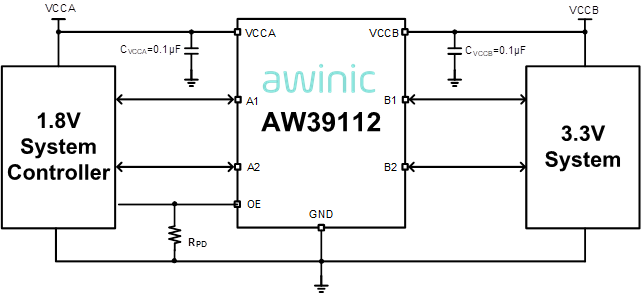

AW39112 is a 2-bit high-performance voltage-level translator without direction control signal, which is a non-inverting converter and can be used to convert digital signal with mixed-voltage systems. It needs two separate power supply rails, with the A ports tracks the VCCA ranging from 1.1 V to 3.6 V, and the B ports tracks the VCCB ranging from 1.65 V to 5.5 V. This makes the chip has capabilities of support both lower and higher logic signal levels translation between any of the 1.2V, 1.8 V, 2.5 V, 3.3 V, and 5 V voltage nodes.
The OE input circuit is supplied by VCCA. Meanwhile, OE is recommended to be tied to GND through an external pull-down resistor to ensure all I/O to be pulled to the supply voltage. No power supply sequencing requirements means either VCCA or VCCB can be powered up first, and OE should be enabled after both VCCA and VCCB are established.
