AW37103D070ADNR

300mA Low Quiescent Current Low-Dropout Linear Regulator

Datasheet :
Preview - AW37103D070ADNR - Datasheet
Ref.Price
  • 1-99￥1.12
  • 100-249￥0.91
  • 250-499￥0.74
  • 500-999￥0.58
  • 1000+￥0.45

Product details

Load Current (Max) (mA) 300
Power Supply (Min) (V) 1.2
Power Supply (Max) (V) 5.5
Vout (Min) (V) 0.7
Vout (Max) (V) 3.3
Iq (Typ) (μA) 2
Vdropout (mV) 320(VOUT=1.8V) 203(VOUT=2.8V) 187(VOUT=3.0V) 179(VOUT=3.3V)
PSRR @1KHz(dB) 75@IOUT=30mA
Output Noise (μVrms) 50(VOUT=0.8V) 60(VOUT=1.8V) 80(VOUT=2.8V) 84(VOUT=3.0V) 90(VOUT=3.3V)
Discharge YES
Output options Fixed ADJ
Temperature -40℃~85℃
IO Level (V) 1.8
Package (mm) DFN 2X2-6L
WBDFN 2X2-6L(0.75)
 Input voltage range: 1.2V to 5.5V  Fixed outputs of 0.7V, 0.8V, 0.9V, 1.0V, 1.05V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V  Rated output current: 300mA  Quiescent current: typical 2uA  Typical 0.1uA shutdown current  Typical 320mV dropout voltage (IOUT=300mA, 1.8V output)  Power supply rejection ratio: typical 75dB (IOUT=30mA, freq=1kHz, 1.8V output)  Noise: typical 60uVrms (IOUT=30mA, BW=10Hz to 100kHz, 1.8V output)  Built-in output short protection: typical 300mA when output short to ground  DFN 1mmX1mmX0.37mm-4L package, SOT 23-5L package and DFN 2mmX2mmX0.75mm-6L package.
AW37103YXXX is a low quiescent current low dropout voltage regulator featuring low ON resistance, high PSRR, low Noise, good load/line transient response and smooth soft-start. AW37103YXXX integrates current limit, short circuit protection, thermal shutdown, sufficiently protecting IC from being damaged. AW37103YXXX is designed to work with a 1uF or more input ceramic capacitor and a 1uF or more output ceramic capacitor. The low quiescent current make AW37103YXXX very suitable for battery application with long service life. Tiny package makes high density mounting of the IC on boards possible.

Technical documentation
Type
Title
Date
Datasheet DS_AW37103YXXX_EN_V2.3   2024-11-08

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW37103YXXXADNR_EVB_V1.0 — AW37103YXXXADNR EVB is a low IQ test board，the main test points of the chip are drawn separately on the EVB board for convenient testing

EVB evaluation board for LDO AW37283BXXXSPR-Q1

View options

Evaluation board

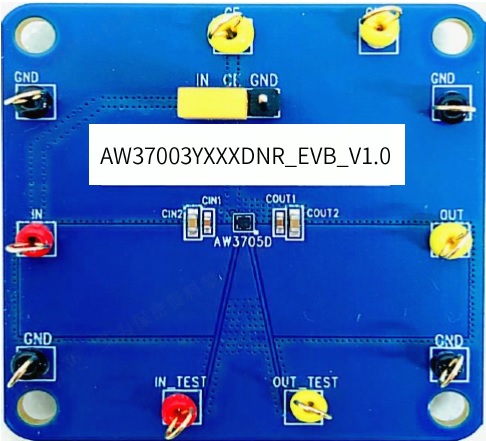

AW3705DXXXDNR EVB V2.0 — AW37003YXXXDNR EVB is a high PSRR, low dropout LDO test board，the main test points of the chip are drawn separately on the EVB board for convenient testing

EVB evaluation board for high-performance LDO AW37030YXXXDNR

View options
Hardware development

Evaluation board

AW37103YXXXADNR_EVB_V1.0 — AW37103YXXXADNR EVB is a low IQ test board，the main test points of the chip are drawn separately on the EVB board for convenient testing

EVB evaluation board for LDO AW37283BXXXSPR-Q1

View options

Evaluation board

AW3705DXXXDNR EVB V2.0 — AW37003YXXXDNR EVB is a high PSRR, low dropout LDO test board，the main test points of the chip are drawn separately on the EVB board for convenient testing

EVB evaluation board for high-performance LDO AW37030YXXXDNR
