| Load Current (Max) (mA) |
300 |
| Power Supply (Min) (V) |
1.4 |
| Power Supply (Max) (V) |
5.5 |
| Vout (Min) (V) |
1.1 |
| Vout (Max) (V) |
3.3 |
| Iq (Typ) (μA) |
50 |
| Vdropout (mV) |
680@300mA,Vout=1.1V
576@300mA,Vout=1.2V
310@300mA,Vout=1.8V
203@300mA,Vout=2.5V
184@300mA,Vout=2.8V
175@300mA,Vout=3.0V
158@300mA,Vout=3.3V |
| PSRR @1KHz(dB) |
90@30mA,Vout=1.8V |
| Output Noise (μVrms) |
21@30mA,Vout=1.1V
33@30mA,Vout=1.8V
46@30mA,Vout=3.3V |
| Discharge |
YES |
| Output options |
Fixed |
| Temperature |
-40℃~85℃ |
| IO Level (V) |
1.8 |
| Package (mm) |
DFN 1X1-4L |
Input voltage range: 1.4V to 5.5V
Fixed outputs of 1.1V, 1.2V, 1.5V, 1.55V,1.8V,2.5V, 2.8V, 2.85V, 2.9V, 2.95V, 3.0V, 3.1V, 3.3V
Rated output current: 300mA
Quiescent current: typical 50uA
Typical 0.1uA shutdown current
Typical 310mV dropout voltage(IOUT=300mA, 1.8V output)
Power supply rejection ratio: typical 90dB(IOUT=30mA, freq=1kHz, 1.8V output)
Noise: typical 33uVrms (IOUT=30mA, BW=10Hz to 100kHz, 1.8V output)
Built-ｉｎ output short protection: typical 120mA when output short to ground
DFN 1mmX1mmX0.37mm-4L package ａｎｄ SOT23-5L package
AW37030YXXX is a low dropout voltage regulator featuring low ON resistance, high PSRR, low Noise, good load/line transient response ａｎｄ smooth softstart.
AW37030YXXX integrates current limit, short circuit protection, thermal shutdown, sufficiently protecting IC from being damaged.

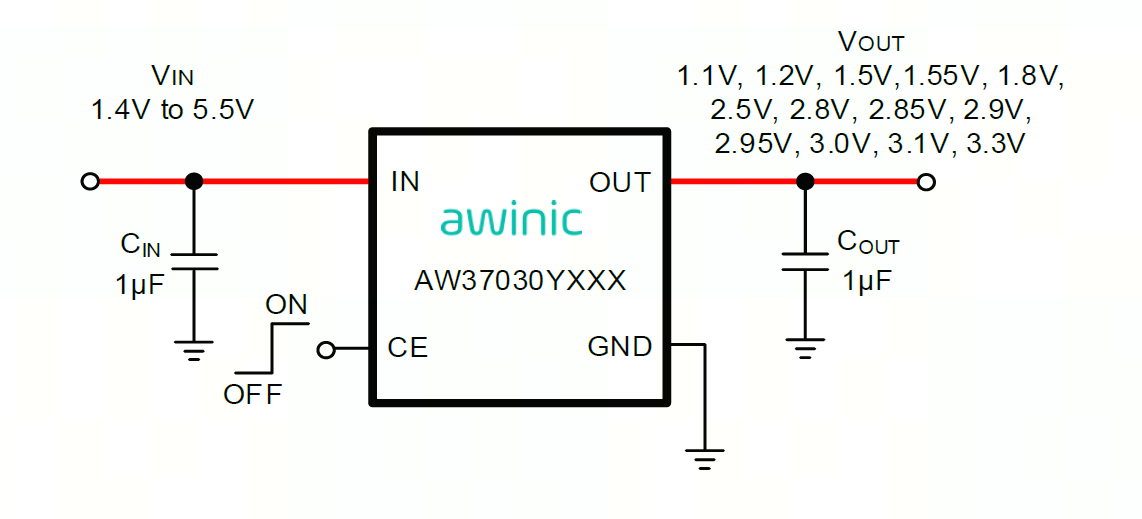

AW37030YXXX is designed to work with a 1uF ｏｒ more input ceramic capacitor ａｎｄ a 1uF ｏｒ more
output ceramic capacitor. The low power dissipation ａｎｄ good dynamic response make AW37030YXXX very suitable for hand-held communication equipment. Tiny package makes high density mounting of the IC on boards possible.
