AW36518FCR

High Efficiency, Independent 1.5A Flash LED Driver

Datasheet :
Preview - AW36518FCR - Datasheet
Ref.Price
  • 1-99￥3.45
  • 100-249￥2.83
  • 250-499￥2.28
  • 500-999￥1.79
  • 1000+￥1.38

Product details

Channel 1
Control Interface IIC
Current (Max) (A) 1.5
Torch Current (Max) (A) 0.386
Flash Current Accuracy (%) 7
Flash Timer (Min) (s) 0.04
Flash Timer (Max) (s) 1.6
IO Level (V) 1.8
Temperature -40℃~85℃
Indicator mode NO
Package (mm) FCQFN 1.6X1.2-10L
FCQFN 1.6X1.2-10L
 1.5A Accurate and Programmable LED Current Source  Flash：2.94mA~1.5A, 256 levels 5.87mA/level  Torch： 0.75mA~386mA, 256 levels 1.51mA/level  Flash Timeout：40ms~1.6s, 16 levels  Flash/Torch/IR Mode  Up to 85% Flash Efficiency  Optimized Flash LED Current During Low Battery Conditions (IVFM)  Hardware Flash/Torch Enable (STROBE/TORCH)  Synchronization Input for RF Power Amplifier Pulse Events (TX)  400kHz I2C：AW36518 (I2C Address=0x63)  0.4mm Pitch，FCQFN 1.6mm×1.2mm×0.55mm -10L Package Compatible with AW3648

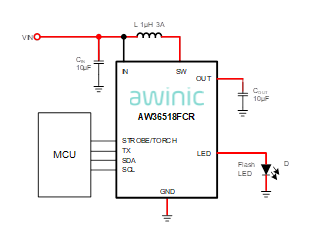

The AW36518 is a LED flash driver that provides a high level of adjustability within a small solution size. The AW36518 utilizes a 2MHz or 4MHz fixed-frequency synchronous boost converter to provide power to the 1.5A constant current LED sources. The 256 levels current sources provide the flexibility to adjust the current of LED in Flash/Torch/IR modes. The AW36518 provides IVFM protection to prevent system reset or shutdown under low battery condition. The AW36518 are controlled via an I2C - compatible interface. The main features of the AW36518 include: flash/torch current, flash timeout duration, IVFM and TX interrupt. The AW36518 also provides hardware flash/torch pin (STROBE/TORCH) to control Flash/Torch events. The 2MHz or 4MHz switching frequency options, overvoltage protection (OVP), and adjustable current limit allow for the use of tiny, low-profile inductors and 10-µF ceramic capacitors. The device operates over a –40°C to +85°C ambient temperature range. The AW36518 is available in small 0.4mm pitch FCQFN 1.6mm×1.2mm×0.55mm -10L package.

Technical documentation
Type
Title
Date
Datasheet DS_AW36518_EN_V1.5   2026-01-09

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

Flash Driver EVB V1.1 — Flash Driver EVB V1.1 is paired with GUI tools to achieve functional demonstrations and performance evaluations.

Flash Driver EVB V1.1 is an flash evaluation board used to demonstrate and test flash and flashlight modes.

View options
Software development

DRIVER OR LIBRARY

AW36518_Driver — Android and other drivers for AW36518A series

Android and other drivers for AW36518A series,including sample code,configuration files,porting guide,etc

View options

DRIVER OR LIBRARY

AW3651X_Driver — Android and other drivers for AW3651X series

Android and other drivers for AW3651X series,including sample code,configuration files,porting guide,etc

View options
