AW3648CSR

High Efficiency, 1.5A Flash LED Driver

Datasheet :
Preview - AW3648CSR - Datasheet

Similar products you might like

Compare Alternatives

AW36518EFCR

High Efficiency, Independent 1.5A Flash LED Driver

Product details

Parameters

Channel 1
Control Interface IIC
Current (Max) (A) 1.5
Torch Current (Max) (A) 0.376
Flash Current Accuracy (%) 7
Flash Timer (Min) (s) 0.04
Flash Timer (Max) (s) 1.6
IO Level (V) 1.8
Temperature -40℃~85℃
Indicator mode NO
Package (mm) WLCSP 1.626X1.332-12B

Package | Pins | Size

WLCSP 1.626X1.332-12B

Features

•1.5A Accurate and Programmable LED Current Source
➢Flash：23.4mA~1.5A，64 levels 23.44mA/level
➢Torch：5.4mA~376mA，64 levels
5.89mA/level
➢Flash Timeout：40ms~1.6s，16 levels
➢Flash/Torch/IR Mode
•High Efficiency: 85%
•Optimized Flash LED Current During Low Battery Conditions (IVFM)
•Hardware Strobe Enable (STROBE)
•Hardware Torch Enable (TORCH/TEMP)
•Remote NTC Monitoring
•Synchronization Input for RF Power Amplifier Pulse Events (TX)
•400kHz I2C：AW3648（I2C Address=0x63）
•0.4mm Pitch, CSP-12 Package

Description

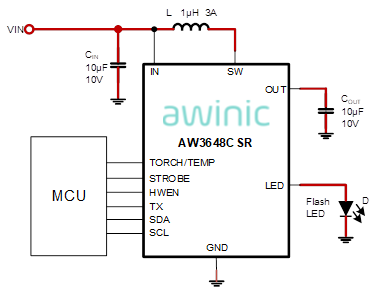

The AW3648 is a LED flash driver that provides a high level of adjustability within a small solution size. The AW3648 utilizes a 2MHz in 4MHz fixed-frequency synchronous boost converter to provide power to the 1.5A constant current LED sources. The 64 levels current source provides the flexibility to adjust the current of LED in Flash/Torch/IR modes. The AW3648 provides three IVFM protection modes to prevent system reset in shutdown under low battery condition.
The AW3648 is controlled via an I2C-compatible interface. The main features of the AW3648 include: flash/torch current, flash timeout duration, IVFM, TX interrupt, and NTC thermistor monitor. The AW3648 also provides hardware flash and hardware torch pins (STROBE and TORCH/TEMP) to control Flash/Torch events.
The 2MHz in 4MHz switching frequency options, overvoltage protection (OVP), and adjustable current limit allow for the use of tiny, low-profile inductors and 10-µF ceramic capacitors. The device operates over a –40°C to +85°C ambient temperature range.
The AW3648 is available in small 0.4mm pitch 1.626mm×1.332mm CSP-12 package.

Technical documentation
Type
Title
Language
Date
Datasheet DS_AW3648_EN_V1.6 英文   2023-06-06

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

Flash Driver EVB V1.1 — Flash Driver EVB V1.1 is paired with GUI tools to achieve functional demonstrations and performance evaluations.

Flash Driver EVB V1.1 is an flash evaluation board used to demonstrate and test flash and flashlight modes.

View options
Software development

DRIVER OR LIBRARY

AW3648_Driver — Android and other drivers for AW3648 series

Android and other drivers for AW3648 series,including sample code,configuration files,porting guide,etc
