AW3643CSR

High Efficiency, Dual 1.5A Flash LED Driver

Datasheet :
Preview - AW3643CSR - Datasheet

Similar products you might likeSimilar products you might like

Compare Alternatives

AW36515EFCR

High Efficiency, Dual Independent 2A Flash LED Driver

Product details

Channel 2
Control Interface IIC
Current (Max) (A) 1.5
Torch Current (Max) (A) 0.372
Flash Current Accuracy (%) 7
Flash Timer (Min) (s) 0.04
Flash Timer (Max) (s) 1.6
IO Level (V) 1.8
Temperature -40℃~85℃
Indicator mode NO
Package (mm) WLCSP 1.626X1.332-12B
WLCSP 1.626X1.332-12B
•Support Dual Color Temperature Flash LED Application
•1.5A Total Allowed LED Current During Operation (ILED1+ILED2≤1.5A)
➢Flash：11.35mA~1.5A，128 levels 11.72mA/level
➢Torch：2.55mA~372mA，128 levels 2.91mA/level
➢Flash Timeout：40ms~1.6s，16 levels
➢Flash/Torch/IR Mode
•High Efficiency: 85%
•Optimized Flash LED Current During Low Battery Conditions (IVFM)
•Hardware Strobe Enable (STROBE)
•Hardware Torch Enable (TORCH/TEMP)
•Remote NTC Monitoring
•Synchronization Input for RF Power Amplifier Pulse Events (TX)
•400kHz I2C：AW3643（I2C Address=0x63）
•0.4mm Pitch，CSP-12 Package Compatible with AW3644, AW36413, AW36414

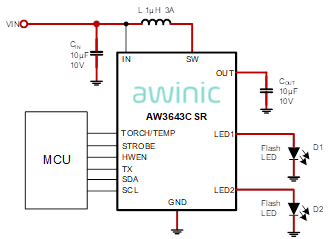

The AW3643 is a dual LED flash driver that provides a high level of adjustability within a small solution size. The AW3643 utilizes a 2MHz in 4MHz fixed-frequency synchronous boost converter to provide power to the dual 1.5A constant current LED sources. The dual 128 levels current sources provide the flexibility to adjust the current of LED1 and LED2 in Flash/Torch/IR modes. The total allowed LED Current during operation is 1.5A (ILED1+ILED2≤1.5A). The AW3643 provides three IVFM protection modes to prevent system reset in shutdown under low battery condition.
The AW3643 is controlled via an I2C-compatible interface. The main features of the AW3643 include: flash/torch current, flash timeout duration, IVFM, TX interrupt, and NTC thermistor monitor. The AW3643 also provides hardware flash and hardware torch pins (STROBE and TORCH/TEMP) to control Flash/Torch events.
The 2MHz in 4MHz switching frequency options, overvoltage protection (OVP), and adjustable current limit allow for the use of tiny, low-profile inductors and 10-µF ceramic capacitors. The device operates over a –40°C to +85°C ambient temperature range.
The AW3643 is available in small 0.4mm pitch 1.626mm×1.332mm CSP-12 package.

Technical documentation
Type
Title
Date
Datasheet DS_AW3643_EN_V1.4   2023-06-06

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

Flash Driver EVB V1.1 — Flash Driver EVB V1.1 is paired with GUI tools to achieve functional demonstrations and performance evaluations.

Flash Driver EVB V1.1 is an flash evaluation board used to demonstrate and test flash and flashlight modes.

View options
Software development

DRIVER OR LIBRARY

AW3643_Driver — Android and other drivers for AW3643 series

Android and other drivers for AW3643 series,including sample code,configuration files,porting guide,etc
