AW35015STR

Power Distribution Switch with Adjustable Current Limit

Datasheet :
Preview - AW35015STR - Datasheet

Similar products you might likeSimilar products you might like

Compare Alternatives

AW35015CDSTR

Power Distribution Switch with Adjustable Current Limit

Product details

Controlled Slew Rate YES
Enable Logic Active High
Output Discharge NO
Programmable Current Limit YES
Current Limit （Min）(A) 0.4
Current Limit （Max）(A) 2.5
Reverse Current Blocking YES
Fault Flag NO
Power Supply (Min) (V) 2.5
Power Supply (Max) (V) 5.5
Temperature -40℃~85℃
IO Level (V) 1.8
Package (mm) SOT23-5L
SOT23-5L
• Integrated P-channel MOSFET power switch
• Input voltage: 2.5V to 5.5V
• 0.4~2.5A adjustable current Limit:
• Switch on-resistance(typ.):
Rdson=65mΩ at VIN=5V
• ±9% current limit accuracy at 1A(typ.)
• Reverse current protection
• Internal EN pull-down resistor
• Under voltage lockout
• Over temperature protection
• Quick Output Discharge(QOD)
 AW35015D/AW35065D: Auto QOD
 AW35015/AW35065: No QOD
• SOT23-5L package

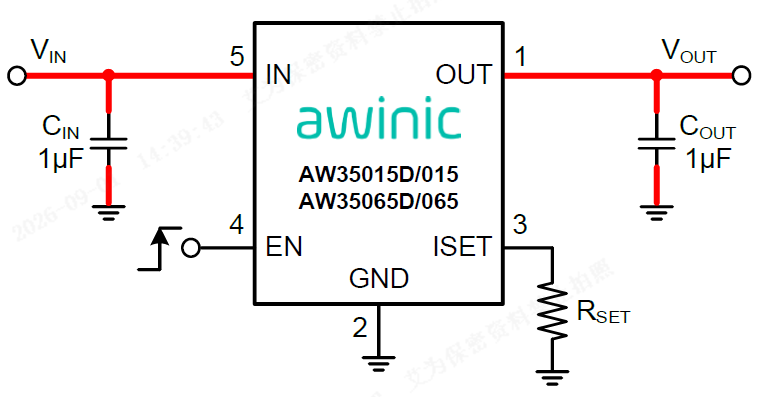

The AW35015D/AW35065D/AW35015/AW35065 is a P-channel MOSFET power distribution switch which intended for high-side load-switching applications. The device integrates adjustable current limit function with an external resistor from ISET pin to ground.
The AW35015D/AW35065D/AW35015/AW35065 also features fast short-circuit response, under voltage lockout, over temperature protection, reverse current protection. The AW35015D/AW35065D builds in quick output discharge function.
Set adjustable current limit:
AW35015D/AW35015: ILIMIT=6800/RSET
AW35065D/AW35065: ILIMIT=26000/RSET

Technical documentation
Type
Title
Date
Datasheet DS_AW35015D_AW35065D_AW35015_AW35065_EN_V1.1   2023-06-06

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW350XXX EVB V1.0 — AW350XXX EVB is the evaluation board of OCP series products. The key test points of the chip are led out separately on the test board for convenient testing.
