AW21036EQNR

36-Channel Intelligent 16-Bit RGB LED Driver

Datasheet :

Preview - AW21036EQNR - Datasheet

Ref.Price

1-99￥11.35
100-249￥9.31
250-499￥7.49
500-999￥5.90
1000+￥4.54

Product details

Channel	36
Global Current Level	256
Current Levels for Color-Mixing	256
Current Levels for Dimming	65536
Charging Indicator	NO
Control Interface	IIC
Power Supply (Max) (V)	5.5
Global Max Current(mA)	50
IO Level (V)	1.8
Audio Sync.	NO
Power Supply (Min) (V)	2.7
Auto Breath	YES
Temperature	-40℃~85℃
Topology	Linear
Package (mm)	QFN 5X5-44L

WBQFN 5X5-44L(0.75)

36-channel RGB LED Driver Global 256-level DC current configuration Maximum individual 65536-level PWM for dimming Individual 256-level current for color-mixing High-precision current sinks Device-to-device error: ±5% Channel-to-channel error: ±5% EMI and audible noise reduction Spread spectrum function Flexible LED lighting pattern control LED open/short detection per channel Auto power saving mode when all LEDs off > 32ms Over-temperature protection 400kHz I2C interface, 4 selectable addresses Power supply: 2.7V~5.5V QFN 5mmX5mmX0.75mm-44L package

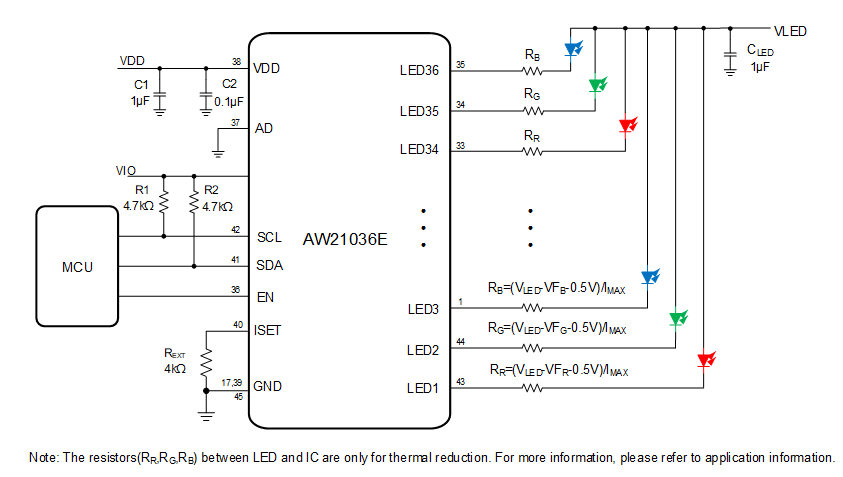

AW21036E is a 36-channel high precision constant current LED driver. Each channel has individual 8-bit DC current setting for color-mixing and 16-bit PWM current for brightness control. The maximum global current of each channel is recommended to be 50mA configured via internal register and external resistor REXT. Group control mode, autonomous breathing pattern and rapid RGB control mode are provided for flexible, high efficiency lighting effect programming and fast display updating. Programmable spread spectrum technology are utilized to reduce EMI and audible noise caused by MLCC when LEDs turn on or off simultaneously. AW21036E can be turned off with minimum current consumption by either pulling the EN pin low or setting bit GCR.CHIPEN=0. AW21036E is available in QFN 5mmX5mmX 0.75mm-44L package. It operates from 2.7V to 5.5V over the temperature range of -40°C to +85°C.

Technical documentation

	Type	Title			Date
	Datasheet	DS_AW21036EQNR_EN_V1.3			2024-12-12
	Product Design Guide	AW21024XQNR&AW21036XQNR Hardware Design Guide			2025-01-24
