| Global Current Level |
256 |
| Current Levels for Color-Mixing |
256 |
| Channel |
9 |
| Current Levels for Dimming |
4096 |
| Charging Indicator |
NO |
| Control Interface |
IIC |
| Power Supply (Max) (V) |
5.5 |
| Global Max Current(mA) |
40 |
| IO Level (V) |
1.8 |
| Audio Sync. |
NO |
| Power Supply (Min) (V) |
2.7 |
| Auto Breath |
YES |
| Temperature |
-40℃~85℃ |
| Topology |
Linear |
| Package (mm) |
QFN 3X3-20L |
• 9-channel RGB LED Driver
➢Global 256-levels DC current configuration
➢Individual 4096-levels PWM for dimming
➢Individual 256-levels current for color-mixing
➢Dither function
• High-precision current sinks
➢Device-to-device error: ±5%
➢Channel-to-channel error: ±5%
• EMI and audible noise reduction
➢Phase delay and phase inverting scheme
➢Slew rate control function
• Flexible LED lighting pattern control
• LED open/short detection per channel
• Auto power save mode when all LEDs off > 32ms
• Under voltage lock out and over temperature protection
• 1MHz I2C interface, 4 selectable addresses: 20h, 21h, 24h, 25h
• Power supply: 2.7V~5.5V
• QFN 3mmX3mmX0.75mm-20L package

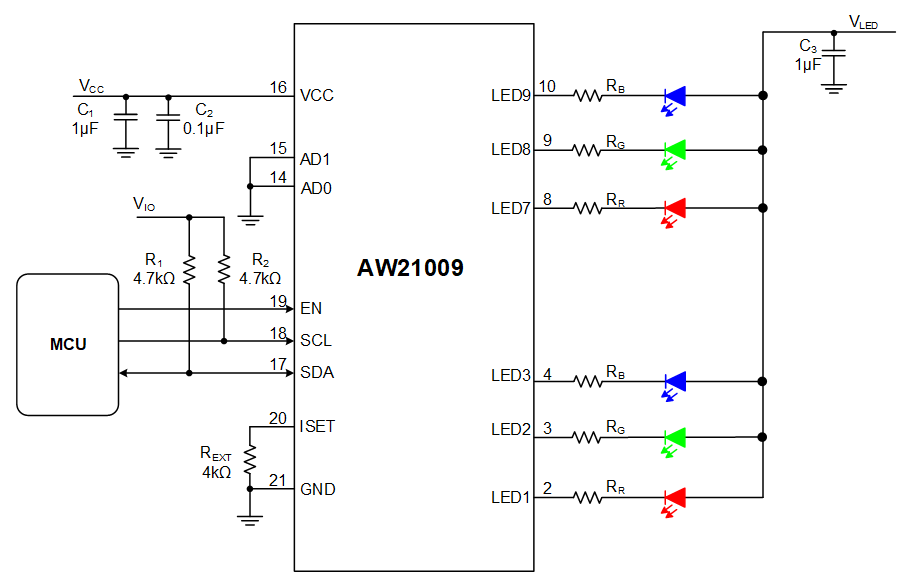

AW21009 is a 9-channel multi-function LED driver. Each channel has individual 8-bit DC current setting for color-mixing and maximum 12-bit PWM resolution for brightness control. The global current of each channel is recommended to be 40mA configured via register and external Resistor REXT.
Group control mode, autonomous breathing pattern and rapid RGB control mode are provided for flexible, high efficiency lighting effect programming and fast display updating.
Programmable phase-shifting and spread spectrum technology are utilized to reduce EMI and audible noise caused by MLCC when LEDs turn on or off simultaneously.
AW21009 can be turned off with minimum current consumption by either pulling the EN pin low or using the software shutdown feature.
AW21009 is available in QFN 3mmX3mmX 0.75mm-20L package. It operates from 2.7V to 5.5V over the temperature range of -40°C to +85°C.
