AW2033DNR

3-Channel LED Drivers With Multi-mode Auto Charging Indication

Datasheet :
Preview - AW2033DNR - Datasheet
Ref.Price
  • 1-99￥3.04
  • 100-249￥2.49
  • 250-499￥2.01
  • 500-999￥1.58
  • 1000+￥1.22

Product details

Channel 3
Global Current Level 4
Current Levels for Color-Mixing 16
Current Levels for Dimming 256
Charging Indicator Breath On
Control Interface IIC
Power Supply (Max) (V) 5.5
Global Max Current(mA) 30
IO Level (V) 1.8
Audio Sync. NO
Power Supply (Min) (V) 2.5
Auto Breath YES
Temperature -40℃~85℃
Topology Linear
Package (mm) DFN 2X2-10L
WBDFN 2X2-10L(0.75)

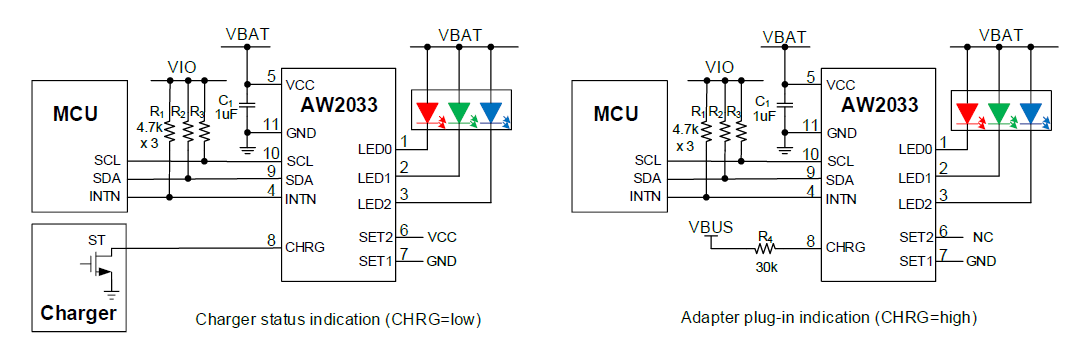

Multi-mode auto charging indication on pin LED0 under low VBAT condition via pin SET1, SET2 SET1: breathing (6mA) or always on(3mA) SET2: CHRG=high or low to trigger indication 3-channel constant current LED drivers 4-level global maximum current: 5mA, 10mA, 15mA, 30mA 16-level individual current for each LED, 4096 color-mixed available 256-level individual PWM dimming Automatic breathing light Three independent pattern controllers Individual and sync control selectable LED current accuracy: ±3% LED matching accuracy: ±3% Low dropout voltage: 50mV Low power consumption ISTB<5µA in standby mode UVLO and OT protection Single power supply, 2.5V~5.5V 400kHz I2C interface (I2C address: 0x45) DFN 2mm×2mm -10L package
AW2033 is a three channels constant current LED driver with multi-mode auto charging indication function. The global max output current is 4-level selectable (5mA/10mA/15mA/30mA). The driving current of each LED is 16 levels configurable so as to achieve 4096 color mixing. The 256-level exponential PWM creates fine and smooth dimming effect even in low brightness. AW2033 provides multi-mode auto charging indication under the condition of low battery voltage. When the voltage of battery is too low, and the I2C interface can’t work, the wanted lighting can be output on pin LED0 by triggering pin CHRG. The pin SET1/SET2 select the lighting effect and the active trigger level of pin CHRG respectively. AW2033 contains three independent pattern controllers. Three LEDs can be controlled to work synchronously or individually according to different applications. A 400kHz I2C interface is provided with 1.8V~3.3V interface voltage. The tiny 2mm×2mm DFN-10L package occupies very small PCB area.
