AW2013DNR

AW2013 3-channel LED Driver with I2C Compatible Interface

Datasheet :
Preview - AW2013DNR - Datasheet
Ref.Price
  • 1-99￥2.84
  • 100-249￥2.33
  • 250-499￥1.87
  • 500-999￥1.48
  • 1000+￥1.14

Product details

Channel 3
Global Current Level 1
Current Levels for Color-Mixing 4
Current Levels for Dimming 256
Charging Indicator NO
Control Interface IIC
Power Supply (Max) (V) 3.3
Global Max Current(mA) 15
IO Level (V) 1.8
Audio Sync. NO
Power Supply (Min) (V) 2.5
Auto Breath YES
Temperature -40℃~85℃
Topology Linear
Package (mm) DFN 2X2-10L
DFN 2X2-10L
Feature
■3-channel intelligent LED driver with constant current output
-Up to 15mA current output with 4-level adjustable for each LED
-Support both Direct PWM control mode and One Shot Programming mode
-Support 256 PWM steps
■Fast I2C interface with maximum operating frequency 400KHz
-Adaptive to 1.8V/2.8V/3V interface
-Configurable I2C address with default value 45h
■Interrupt pin INTN, active low
■LDO and OSC inside
■Power supply VCC，2.5V～3.3V
■ESD HBM 7kV
■Operation temperature -40℃~85℃
■Package 2mm×2mm DFN-10L
General Description

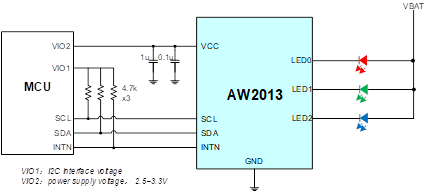

AW2013 is a product of 3-channel LED driver supporting auto breathing mode with I2C interface in AWINIC LED driver product line. It can drive 3 individual LEDs in one group of RGB.
AW2013 drives LEDs with common anode, constant current. The brightness can be modulated in PWM with 256 steps. The output current can be configured in 4 levels: 15mA、10mA、5mA、0mA(default)。
AW2013 supports fade-in and fade-out effect for brightness control. There are two modes: the Direct PWM Control mode and One Short Programming mode. In the one short programming mode, it’s flexible to set the breathing speed, timing, brightness and repeat times.

Technical documentation
Type
Title
Date
Datasheet DS_AW2013_EN_V1.7_3_Channel_LED_Driver_With_I2C_Interface   2023-06-06
Product Design Guide AW20XX Hardware Design Guide   2025-01-24

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

3LED EVB V1.1 — EVB evaluation board for Awinic's 3-channel breathing LED drivers

The 3LED EVB V1.1 is an EVB evaluation board for Awinic's 3-channel breathing LED drivers, capable of demonstrating 3-channel breathing LED.

View options
Software development

DRIVER OR LIBRARY

AW2013_Driver_MTK_v1.0.4.zip — Android Driver for AW2013。

AW2013 Driver，includeing sample code,porting guide,debugging guide etc.

View options

DRIVER OR LIBRARY

AW2013_Driver_QCOM_v1.0.4 — Android Driver for AW2013。

AW2013 Driver，includeing sample code,porting guide,debugging guide etc.

View options

APPLICATION SOFTWARE&FRAMEWORK

Breathing_LED — 3led Tunning Tools

3led GUI is a highly integrated and easy-to-use tool for product configuration and debugging.Intuitive interface and user-friendly operation can help custion can help customers shorten development cycle and complete system integration quickly

View options

DRIVER OR LIBRARY

AW20XX_Drivers — Android and other drivers for AW20XX series

Android and other drivers for AW20XX series, including example code, porting guide, etc.

View options
