AW17445FCR

SP4T Antenna Tuning Switch

Datasheet :
Preview - AW17445FCR - Datasheet
Ref.Price
  • 1-99￥2.84
  • 100-249￥2.33
  • 250-499￥1.87
  • 500-999￥1.48
  • 1000+￥1.14

Product details

Frequency (GHz) 0.4~3.8
Control Interface GPIO
VDD (Min) (V) 2.4
VDD (Max) (V) 3.3
VIO (Min) (V) N/A
VIO (Max) (V) N/A
Vpeak (V) 39
Ron (Ω) 1.15
Coff (fF) 160
ISO (Max) (dB) 28
Temperature -40℃~85℃
ISO (Min) (dB) 17
Package (mm) FCQFN 1.5X1.1-10L
FCQFN 1.5X1.1-10L
1、High Voltage Handling, 39V
2、High P0.1dB, 42dBm
3、Low On-Resistance,1.15Ω
4、Low Off- Capacitance, 160fF
5、linear performance
6、Small FCQFN 1.5mm x 1.1mm x 0.37mm-10L package
7、VDD=2.4 to 3.3V
8、Broadband frequency range: 0.4 to 3.8 GHz
The AW17445 is a single-pole, four-throw (SP4T) antenna tuning switch, using CMOS silicon-on-insulator (SOI) process. The high voltage handling, high linear performance and low Ron and COFF make the switch very suitable for high performance antenna tuning application.
The AW17445 is provided very small FCQFN 1.5mm x 1.1mm x 0.37mm-10L package.

Technical documentation
Type
Title
Date
Datasheet DS_AW17445FCR_EN_V1.1   2023-06-06

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

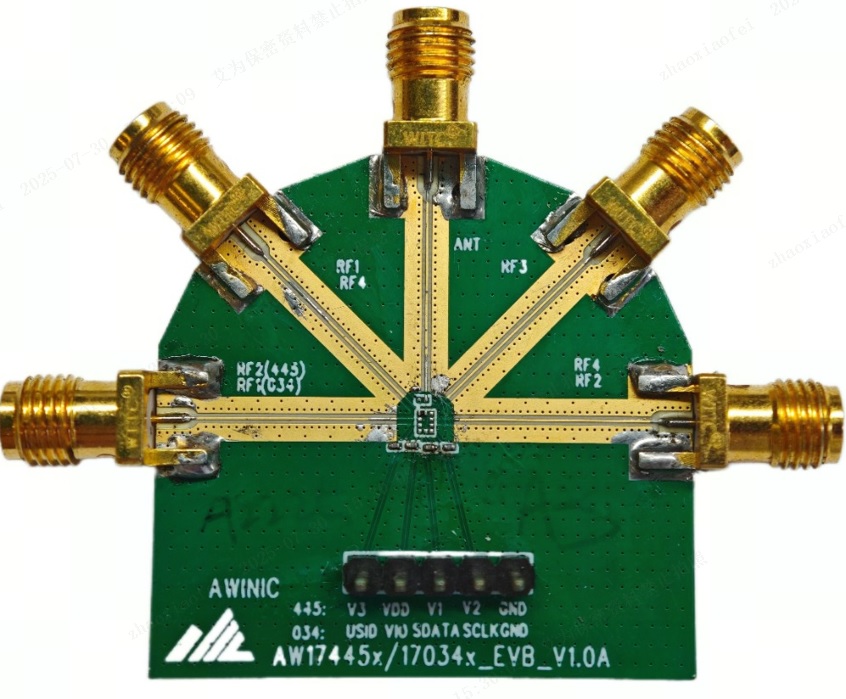

AW17445x/17034x_EVB_V1.0A — This EVB is used for evaluating performance of SP4T Tuner Switch, including S-parameters, Ron, Coff, etc.

Performance Evaluation for SP4T Tuner Switch with GPIO Interface
