AW15045FDR

Ultra-Low Noise Amplifier for Global Navigation Satellite Systems (GNSS)

Datasheet :

Preview - AW15045FDR - Datasheet

Ref.Price

1-99￥1.22
100-249￥1.00
250-499￥0.80
500-999￥0.63
1000+￥0.49

Product details

Frequency (GHz)	1.55~1.615GHz; 1.164~1.215GHz
VCC (Min) (V)	1.5
VCC (Max) (V)	3.3
Gain(dB)	18
NF(dB)	0.5
Icc (mA)	6
Temperature	-40℃~85℃
P1dB (dBm)	-9.5
Package (mm)	FCDFN 1.1X0.7-6L

FCDFN 1.1X0.7-6L(0.37)

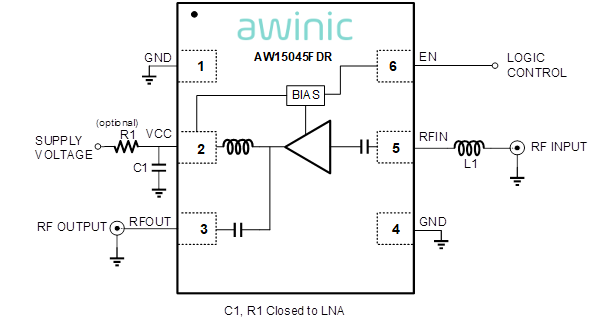

1. Reduce RF environment Interference with patented Smart-Linearity-Technology (SLT); 2. Ultra low noise figure(NF)=0.55dB; 3. High power gain=18dB; 4. High linearity IIP3oob=0dBm; 5. High input 1dB-compression point=-9.5dBm; 6. GPS L1 requires only one input matching inductor; 7. RF output internally matched to 50 ohm for GPS L1; 8. Supply voltage: 1.5V to 3.3V; 9. Operating frequencies: 1550~1615MHz; 1164~1215MHz; 10. FCDFN-6L package:1.1mmX0.7mmX0.37mm 11. 2000V HBM ESD protection (including RFIN ａｎｄ RFOUT pin)

1. The AW15045FDR is a Low Noise Amplifier designed for Global Navigation Satellite Systems (GNSS) as GPS, Beidou, GLONASS, Galileo ａｎｄ Compass. With on-chip DC blocking capacitors at RFIN ａｎｄ RFOUT, The AW15045FDR can be close to the antenna, requires only one external input matching inductor, ａｎｄ reduces assembly complexity ａｎｄ the PCB area, enabling a cost-effective solution. 2. The AW15045FDR with patented Smart Linearity Technology (SLT) achieves ultra-low noise figure, high linearity, high gain, over a wide range of supply voltages from 1.5V up to 3.3V. All these features make AW15045FDR an excellent choice for GNSS LNA as it improves sensitivity with low noise figure ａｎｄ high gain, provide better immunity against out-of-band jammer signals with high linearity, reduces filtering requirement of preceding stage ａｎｄ hence reduces the overall cost of the GNSS receiver. 3. The AW15045FDR is available ｉｎ a small lead-free, RoHS-Compliant, 1.1mm x 0.7mm x 0.37mm 6-pin FCDFN package.

Technical documentation

	Type	Title			Date
	Datasheet	DS_AW15045FDR_EN_V1.9			2024-10-25

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW5025/5025ADNR_GPS_LNA_EVB_1.0 — This EVB can be used for the performance evaluation of multiple LNA products in 1107 package, including key metrics such as S-parameters and noise figure.

GNSS_LNA and LTE_LNA Performance Evaluation Board

View options

Evaluation board

AW15045FDR_EVB_V2.0 — This EVB is used for evaluating the L1 and L5 band performance of GNSS LNAs, including S-parameters, noise figure, etc.

Applicable GNSS LNA Evaluation for Single Match on L1 and L5 Bands Performance

View options
