AW13612FLR

0.1-6GHz SPDT Switch for High Power Applications

Datasheet :
Preview - AW13612FLR - Datasheet
Ref.Price
  • 1-99￥1.95
  • 100-249￥1.60
  • 250-499￥1.28
  • 500-999￥1.01
  • 1000+￥0.78

Product details

Frequency (GHz) 0.1~6
Switch Feature SPDT HPower
Control Interface GPIO
VDD (Min) (V) 1.65
VDD (Max) (V) 3.3
VIO (Min) (V) /
VIO (Max) (V) /
P0.1dB (dBm) 39
IL (Min) (dB) 0.2
IL (Max) (dB) 0.52
ISO (Max) (dB) 41
ISO (Min) (dB) 26
Temperature -40℃~85℃
Package (mm) FCLGA 1.1X0.7-6L
FCLGA 1.1X0.7-6L
1. 宽带频率范围：0.1至6 GHz 2. 高功率处理能力高达39 dBm 3. 低插入损耗：典型值为0.52 dB @ 6.0 GHz 4. 高隔离度：典型值为27 dB@6.0 GHz 5. 高开关速度：典型值为1 μs 6. 低谐波产生 7. 封装：FCLGA (6引脚，1.1x 0.7毫米)

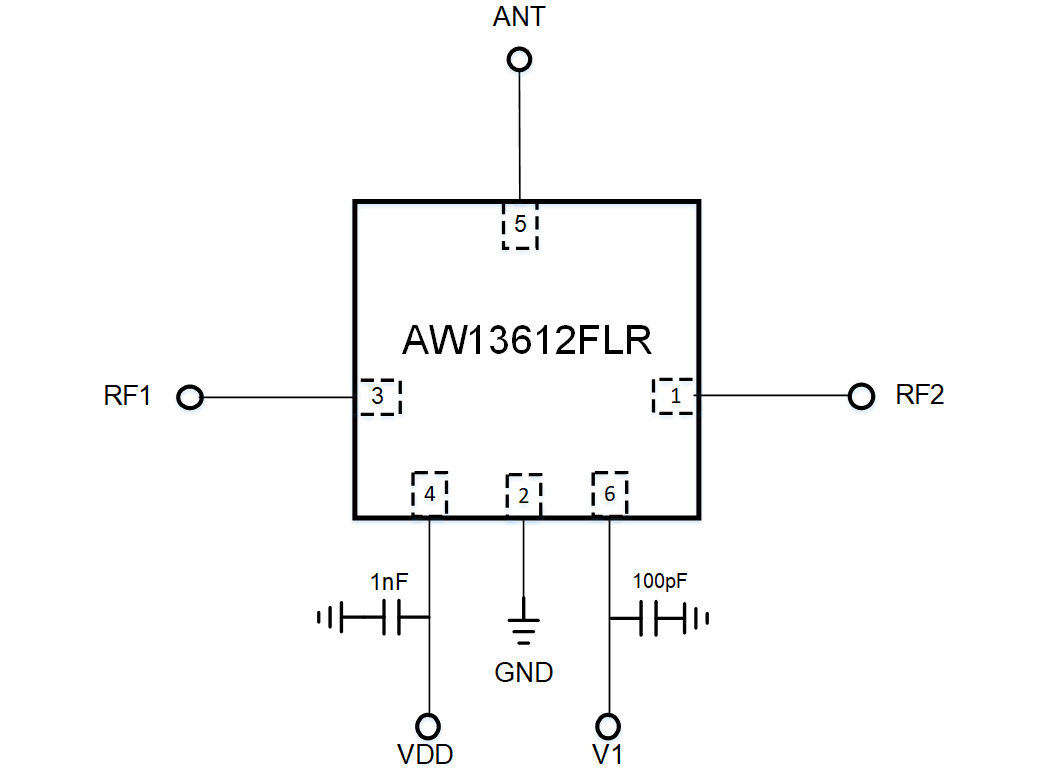

The AW13612FLR is a single-pole dual-throw switch with high power handing capability of up to 38dBm and low insertion loss. It can be used to support band switching and mode switching for GSM, WCDMA, LTE, and NR applications. The symmetrical design of internal ports makes it convenient for PCB routing and adjustment of receiving and transmitting signals. The band/mode switching is realized by the GPIO pins as referenced in the chip block diagram and the control logic. The AW13612FLR is provided in a compact FCLGA 1.1mm x 0.7mm x 0.47mm-6L package.

Technical documentation
Type
Title
Date
Datasheet DS_AW13612FLR_SPDT_EN_V1.3   2023-06-06

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW13612FLR_EVB_V1.4 — This EVB is used to evaluate the performance of SPDT, including S-parameters, harmonics, P0.1dB, and other metrics.
