AW39114BQNR_EVB_V1.0

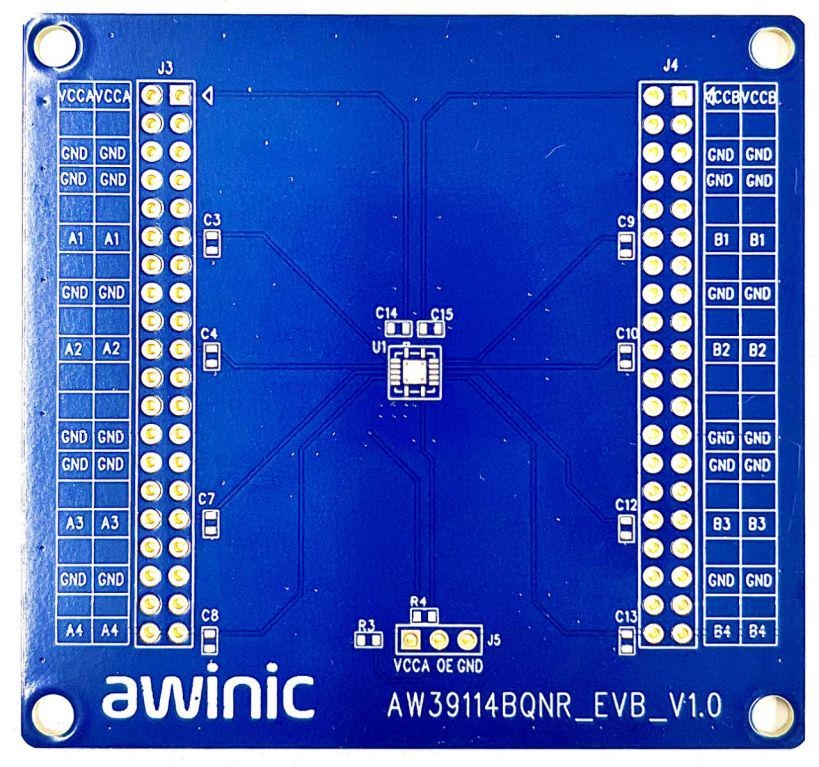

AW39114BQNR EVB is an evaluation board for the AW39114BQNR. AW39114BQNR is a 4-bit high-performance voltage-level translator without direction control signal. It needs two separate power suppply VCCA and VCCB.

Overview

This EVB is an evaluation board suitable for voltage level translator.


Features
The key test points of the chip are led out separately on the EVB board, which is convenient for testing.

Voltage level translators

AW39114BQNR - 4-bit Bidirectional Voltage-Level Translator for Open-Drain and Push-Pull Applications
