AWS79064SPR-Q1

Low Noise, RRIO CMOS Op-amps with 10MHz Bandwidth

Datasheet :
Preview - AWS79064SPR-Q1 - Datasheet
Ref.Price
  • 1-99￥7.28
  • 100-249￥5.97
  • 250-499￥4.80
  • 500-999￥3.78
  • 1000+￥2.91

Product details

Channel 4
Power Supply (Min) (V) 1.8
Power Supply (Max) (V) 5.5
Vos@25℃ (Max) (mV) 0.9
Vos TC (Typ) (µV/℃) 0.5
GBW (Typ) (MHz) 10
Slew rate (Typ) (V/us) 13
Iq per channel (Typ) (mA) 0.85
Vn @ 1 kHz (Typ) (nV/rtHz) 13
CMRR (Typ) (dB) 99
Rail-to-rail in,out
Temperature -40℃~125℃
IB (Typ) (pA) 1
Package SOP-14L
SOP-14L
Qualified for Automotive Applications AEC - Q100 Qualified with Grade 1 Wide Supply Voltage Range:1.8 V ~ 5.5 V Low Input Offset Voltage: ±0.4 mV Slew Rate: 13 V/μs Low Input Bias Current: 1 pA Low Broadband Noise: 13 nV/√Hz Low Quiescent Current: 850 μA/CH Rail-to-Rail Input and Output Bandwidth: 10 MHz Sink and Source Current Capability: 50 mA
The AWS7906X-Q1 is a high precision, low-power, low-voltage (1.8 V to 5.5 V) operational amplifiers with rail-to-rail input and output swing capabilities, which makes it ideal to general-purpose applications. This op amp features very good AC performance with a gain-bandwidth product of 10 MHz, slew rate of 13 V/μs and low input voltage noise of 3.8 μVpp, while drawing 850 μA per channel (typical) quiescent current. It has an input common-mode voltage range that extends to each supply rail, and its outputs swing to within 27 mV of the supply rails with a 2 kΩ load. The device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications. The AWS7906X-Q1 is available in Green SOP - 8L and SOP - 14L packages. It operates over an ambient temperature range of -40 °C to +125 °C.

Technical documentation
Type
Title
Date
Datasheet DS_AWS7906X-Q1_EN_V1.1   2025-08-28

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

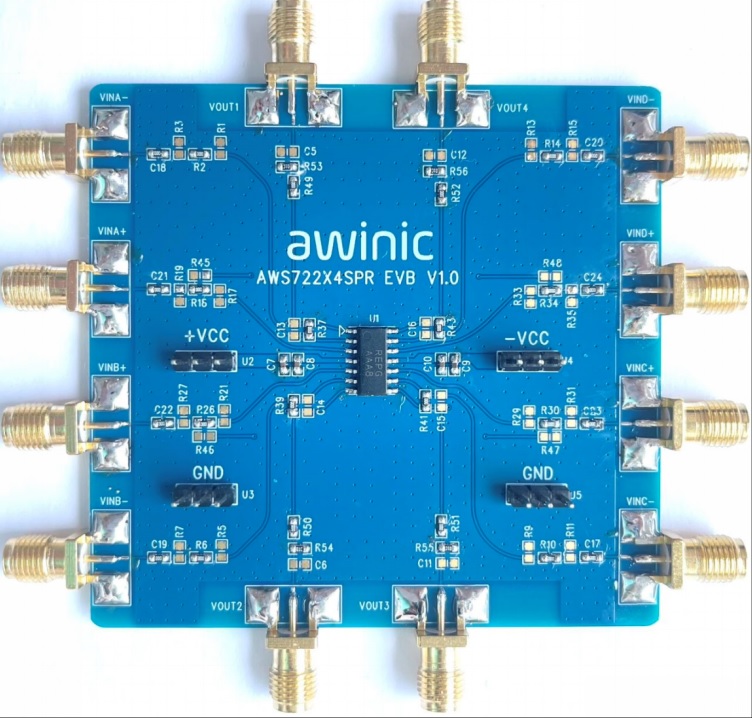

AWS722X4SPR_EVB_V1.0 — The AWS722X4SPR EVB is a high-voltage general-purpose operational amplifier test board developed by Aiwei. The key test points of the chip are individually led out on the EVB board using SMA interfaces for easy demonstration and testing;

EVB evaluation board for operational amplifier AWS722X4SPR.

View options
Hardware development

Evaluation board

AWS722X4SPR_EVB_V1.0 — The AWS722X4SPR EVB is a high-voltage general-purpose operational amplifier test board developed by Aiwei. The key test points of the chip are individually led out on the EVB board using SMA interfaces for easy demonstration and testing;

EVB evaluation board for operational amplifier AWS722X4SPR.
