AWP37579CSR

Triple Outputs Switching Converter for AMOLED Display

Datasheet :
Preview - AWP37579CSR - Datasheet
Ref.Price
  • 1-99￥12.17
  • 100-249￥9.98
  • 250-499￥8.03
  • 500-999￥6.33
  • 1000+￥4.87

Product details

Control Interface one-wire
ELVDD (Min) (V) 4.6
ELVDD (Max) (V) 5
ELVSS (Min) (V) -6.6
ELVSS (Max) (V) -0.5
AVDD (Min) (V) 6.5
AVDD (Max) (V) 8.0
Maximum ELVDD/ELVSS Current (mA) 1000
Maximum AVDD Current (mA) 150
Temperature -40℃~85℃
Power Supply (Min) (V) 2.5
Power Supply (Max) (V) 4.8
IO Level (V) 1.2
Package (mm) WLCSP 2.017X2.017-25B
WLCSP 2.017X2.017-25B
Input voltage: 2.5V ~ 4.8V Excellent line and load transient response Programmable output voltage by ESWIRE from 4.6V to 5V in 100mV steps (Default: 4.6V) Programmable output voltage by ESWIRE from -6.6V to -0.5V in 100mV steps (Default: -4V) Programmable output voltage by ASWIRE from 6.5 V to 8.0V in 50mV or in 100mV steps (Default: 7.6V) Max Output current for ELVDD and ELVSS 1000mA @ VIN=2.5V, ELVDD=4.6V, ELVSS= -4V 1000mA @ VIN=2.7V, ELVDD=4.6V, ELVSS= -5.5V 150mA Max Output current for AVDD Short Circuit Protection (SCP) WLCSP 2.017×2.017 - 25B

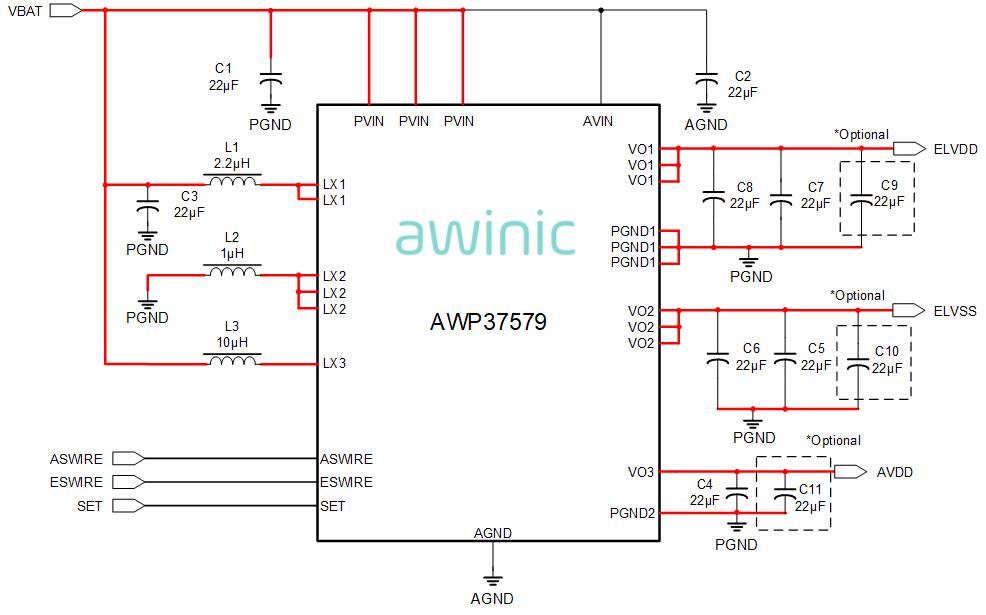

The AWP37579CSR is specially designed for AMOLED (Active Matrix organic LED) Display panels. It integrates two high performance boost converters, VO1 (positive voltage ELVDD) and VO3 (AVDD), one inverting buck-boost converter for VO2 (negative voltage ELVSS). These converters have excellent line and load transient response. The VO3 can be programmed by ASWIRE, the VO1 and VO2 can be programmed by ESWIRE. All these interfaces can turn on/off corresponding converters.

Technical documentation
Type
Title
Date
Datasheet DS_AWP37579_EN_V1.0   2025-10-21
Product Design Guide AWP3757X Hardware Design Guide   2026-01-13

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW37577_EVB_V1.3 — AW37577_EVB_V1.3 with USB TO IIC BOARD V1.4 for the output voltage adjustment via s-wire

Evaluation board for AW37577

View options
Hardware development

Evaluation board

AW37577_EVB_V1.3 — AW37577_EVB_V1.3 with USB TO IIC BOARD V1.4 for the output voltage adjustment via s-wire

Evaluation board for AW37577
