AWP37034D330DNR

300mA High Performance Low-Dropout Linear Regulator

Datasheet :
Preview - AWP37034D330DNR - Datasheet
Ref.Price
  • 1-99￥0.47
  • 100-249￥0.38
  • 250-499￥0.31
  • 500-999￥0.24
  • 1000+￥0.19

Product details

Load Current (Max) (mA) 300
Power Supply (Min) (V) 1.4
Power Supply (Max) (V) 5.5
Vout (Min) (V) 3.3
Vout (Max) (V) 3.3
Iq (Typ) (μA) 38
Vdropout (mV) 147@IOUT=300mA
PSRR @1KHz(dB) 72@1kHz, IOUT=30mA, 3.3V output
Output Noise (μVrms) -
Discharge YES
Output options Fixed
Temperature -40℃~85℃
IO Level (V) 1.2
Package (mm) DFN 1X1-4L
DFN 1X1-4L

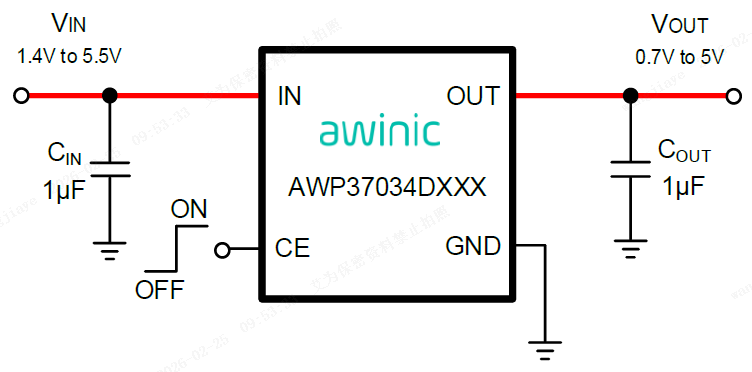

● Input voltage range: 1.4V to 6V ● Fixed outputs of 0.7V to 5V ● Rated output current: 300mA ● Quiescent current: typical 38µA ● Typical 0.1µA shutdown current ● Typical 177mV dropout voltage (IOUT=300mA, 2.8V output) ● Power supply rejection ratio: typical 75dB (IOUT=30mA, freq=1kHz, 2.8V output) ● Noise: typical 60µVrms (IOUT=30mA, BW=10Hz to 100kHz, 2.8V output) ● Built-in output short protection: typical 300mA when output short to ground ● Available with 1.2V I/O ● DFN 1mm×1mm-4L package
AWP37034DXXX is a low dropout voltage regulator featuring low on resistance, high PSRR, low noise, good load/line transient response and smooth soft-start. AWP37034DXXX integrates current limit, short circuit protection, thermal shutdown, sufficiently protecting IC from being damaged. AWP37034DXXX is designed to work with a 1µF or more input ceramic capacitor and a 1µF or more output ceramic capacitor. The low power dissipation and good dynamic response make AWP37034DXXX very suitable for hand-held communication equipment. Tiny package makes high density mounting of the IC on boards possible.
