| Control Interface |
GPIO |
| Current Limit (Typ) (A) |
10 |
| Load Current (Max) (A) |
4.4 |
| Vout (Min) (V) |
4.5 |
| Vout (Max) (V) |
13.5 |
| Output Type |
Fixed |
| Temperature |
-40℃~85℃ |
| Special Function |
programmable switching frequency |
| Package (mm) |
FCQFN 2.5X2-11L |
Input Voltage Range :2.7V to 7V
Output Voltage Range: 4.5V to 13.5V
Integrated 12mΩ switching FET and 15mΩ rectifier FET
Adjustable switching frequency up to 2MHz
Resistor-programmable peak current limit up to 10 A for high pulse current
4ms built-in soft start time
DCM Operation under light load
Input Under-Voltage Lockout
Over-Temperature Protection
FCQFN 2.5*2-11L Package

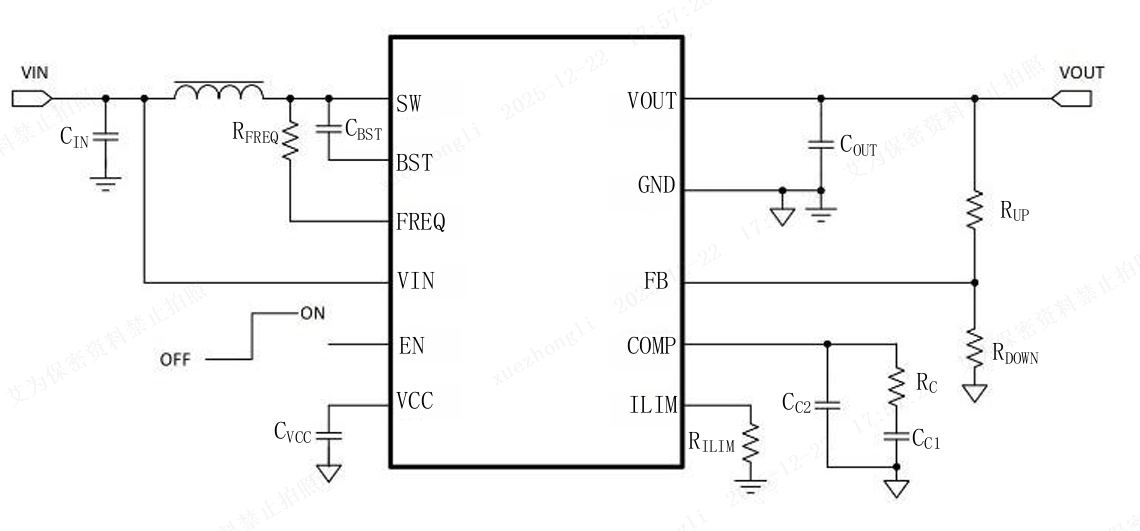

The AWP36210 is a 13.5V synchronous Boost converter. The AWP36210 integrates two low Rdson resistance power power FETs: A 12mΩ switching FET and a 15mΩ rectifier FET.
The device provides a high-efficiency and small-size power solution for portable equipment.
The AWP36210 uses the adaptive constant off time peak current mode control. AWP36210 has an internal feature to help improving light load efficiency. When output current is low, AWP36210 will go into DCM mode.
The AWP36210 includes configurable features include programmable cycle-by-cycle current limit and programmable switching frequency functions.The switching frequency in PWM mode is adjustable from 200kHz to 2MHz.
The AWP36210 also implements a built-in 4ms soft start function. In addition, the device provides thermal shutdown protection.
