| Channel |
1 |
| Controlled Slew Rate |
YES |
| Enable Logic |
Active High |
| Output Discharge |
YES |
| Reverse Current Block |
NO |
| TR (μs) |
470@VIN=3.3V, COUT=0.1µF, ROUT=150Ω |
| Max Continuous Current (A) |
2 |
| Ron (mΩ) |
126 |
| Power Supply (Min) (V) |
1 |
| Power Supply (Max) (V) |
5.5 |
| Temperature |
-40℃~85℃ |
| IO Level (V) |
1.8 |
| Package (mm) |
SOT23-5L |
● Integrated P-channel MOSFET load switch
● Input voltage: 1V to 5.5V
● 2A maximum continuous switch current
● Switch on-resistance(typ.):
Rdson=115mΩ at VIN=5.5V
Rdson=119mΩ at VIN=4.2V
Rdson=126mΩ at VIN=3.3V
Rdson=142mΩ at VIN=2.5V
Rdson=163mΩ at VIN=1.8V
Rdson=235mΩ at VIN=1.2V
Rdson=320mΩ at VIN=1V
● Controlled slew rate to limit inrush currents
● Ultra-low shutdown current
● Internal EN pull-down resistor
● Quick Output Discharge(QOD)
● SOT23-5L package

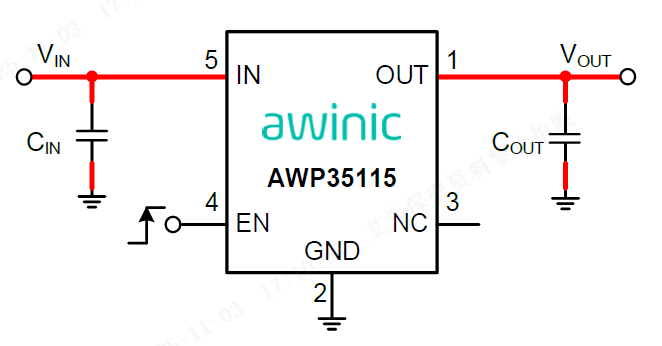

The AWP35115 integrates a 126mΩ (typ.) P-channel MOSFET, which can operate over a wide input range of 1V to 5.5V. The AWP35115 features extremely low quiescent current (IQ) and shutdown current (ISD). Low IQ and ISD solutions help designers to reduce parasitic leakage current, improve system efficiency, and increase battery lifetime.
The AWP35115 features output slew rate control, limiting inrush currents during turn-on to protect downstream devices.
In addition, AWP35115 has QOD function which can prevent the output from floating when the switch is disabled. A smart pull-down resistor is used to the EN pin during initial power-up and disconnects once the EN pin voltage reaches the VIH level, then the standby current is very low and power loss can be reduced.
The AWP35115 is available in SOT23-5L package.
