AWD8231ADNR

3.7A DC Motor Driver with Integrated Current Sensing and Regulation

Datasheet :

Preview - AWD8231ADNR - Datasheet

Ref.Price

1-99￥4.45
100-249￥3.65
250-499￥2.93
500-999￥2.31
1000+￥1.78

Product details

Motor Type	BDC Motor
H bridge	1
Micro Step	-
VDD (Min) (V)	4.5
VDD (Max) (V)	33
Peak Current (A)	3.7
Ron (mΩ)	560
Control Mode	GPIO/PWM
CTRL IF	GPIO
Temperature	-40℃~125℃
Function	Current Sensing and Regulation
Package (mm)	DFN 2X2-8L

DFN 2X2-8L

Drives a DC Motor or Other Loads Rdson HS + LS: 560mΩ High output current capability：3.7A Peak VM: 4.5V to 33V Operating Voltage Range PWM Control Interface Low-Power Sleep Mode Integrated IPROPI current sensing for stall detection and current regulation Over-Current Protection (OCP) Thermal Shutdown (TSD) Under-Voltage Protection(UVLO)

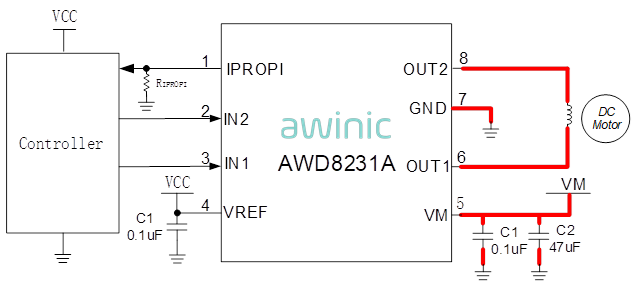

The AWD8231A device is an integrated motor driver, which is equipped with an N-channel H-bridge, a charge pump, current-sensing feedback, current regulation and protection circuits. The charge pump boosts efficiency by supporting N-channel MOSFET half bridges and 100% duty cycle driving. The internal current mirror architecture on the IPROPI pin realizes the functions of current sensing and regulation, which eliminates the necessity of using large power shunt resistors, thus saving the board area and reducing the system cost. The IPROPI current-sensing output enables the microcontroller to detect motor stall or changes in load conditions. The external voltage reference pin VREF can determine the threshold of current regulation during startup and stall events without the intervention of the microcontroller. The low-power sleep mode achieves ultra-low quiescent current consumption by shutting down most of the internal circuits. Its internal protection features include power undervoltage lockout, output overcurrent and device overheating protection.

Technical documentation

	Type	Title			Date
	Datasheet	DS_AWD8231A _EN_V1.2			2026-03-04
