AW9527QNR

16 Multi-Function LED Driver and GPIO Controller with I2C Interface

Datasheet :

Preview - AW9527QNR - Datasheet

Ref.Price

1-99￥6.08
100-249￥4.99
250-499￥4.01
500-999￥3.16
1000+￥2.43

Product details

Channel	16
Global Current Level	1
Current Levels for Color-Mixing	1
Current Levels for Dimming	256
Charging Indicator	NO
Control Interface	IIC
Power Supply (Max) (V)	5.5
Global Max Current(mA)	37
IO Level (V)	1.8
Audio Sync.	NO
Power Supply (Min) (V)	2.5
Auto Breath	YES
Temperature	-40℃~85℃
Topology	Linear
Package (mm)	QFN 3X3-24L

WBQFN 3X3-24L(0.55)

1、16 multi-function I/O, each for LED drive (current-source dimming) or GPIO mode 2、P0_0~P0_1/P1_0~P1_3 support 2 intelligent breathing mode: BLINK and SMART-FADE, breathing time is adjustable 3、256 steps linear dimming in LED drive mode 4、Any GPIO can be configured as an input or an output independently 5、Support interrupt, 8μs deglitch, low-level active 6、Standard I2C interface, AD1/AD0 select I2C device address 7、SDA, SCL, RSTN, and all GPIO can accept in 1.8V logic input 8、Supply shutdown function, low-level active 9、5V~5.5V power supply 10、QFN 3×3-24L package

AW9527 is a 16 multi-function LED driver and GPIO controller. Any of the 16 I/O ports can be configured as LED drive mode or GPIO mode. Furthermore, any GPIO can be configured as an input or an output independently. After power on, all the 16 I/O ports are configured as GPIO output as default, which default states are set according to the I2C device address selection inputs, AD0 and AD1. All I/O ports configured as inputs are continuously monitored for state changes. State changes are indicated by the INTN output. When AW9527 reads GPIO state through the I2C interface, the interrupt is cleared. Interrupt has 8μs deglitch. When the I/O ports are configured as LED drive mode, AW9527 can set the current of LED drive between 0~IMAX by I2C interface, which is divided by 256 steps linear dimming. The default maximum current (IMAX) is 37mA, and IMAX can be changed in GCR register. AW9527 supports two intelligent breathing modes: BLINK mode and SMART-FADE mode. BLINK mode allows LED automatic to flash periodically according the setting time parameter. P0_0~P0_1/ P1_0~P1_3 support intelligent breathing mode. AW9527 is available in QFN 3×3-24L package, and 2.5V~5.5V power supply.

Technical documentation

	Type	Title			Date
	Datasheet	DS_AW9527_EN_V1.0			2024-11-14
	Product Design Guide	AW9523X AW9527 Software Design Guide			2025-01-24

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

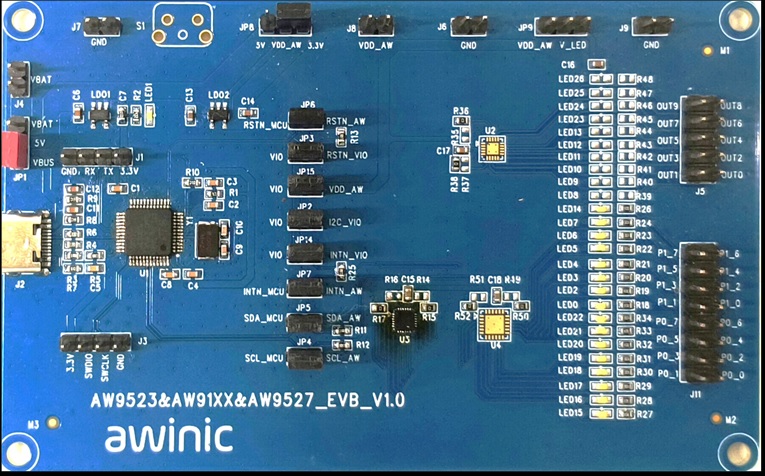

AW9523&AW91XX&AW9527_EVB_V1.0 — AW9523_AW91XX_AW9527_EVB_V1.0 is a test board developed by Awinic for testing GPIO expansion and breathing light functions. It can be used for demonstration and testing of AW9523B, AW9110C, AW9106C, and AW9527.
