AW9364DNR

4-Channel 1-wire Dimming LED Driver with Ultra Low Dropout Current Source

Datasheet :
Preview - AW9364DNR - Datasheet
Ref.Price
  • 1-99￥2.23
  • 100-249￥1.83
  • 250-499￥1.47
  • 500-999￥1.16
  • 1000+￥0.89

Product details

Parallel LED Numbers 4
Control Interface one-wire
Current Step 16
Max Current (mA) 20
Min Current (mA) 1.25
Current Accuracy (%) 17.5
Current Matching (%) 5
Temperature -40℃~85℃
Power Supply (Min) (V) 2.8
Power Supply (Max) (V) 5.5
IO Level (V) 1.8
Package (mm) DFN 2X2-8L
DFN 2X2-8L
Ultra low dropout: 50mV/20mA(typical)
Support up to 4 LEDs
LED sink current up to 20mA
±1% LED current matching(typical)
En Pin Deglitch circuit
Thermal shutdown protection
16-step brightness control
ESD protection: ±8kV(HBM)
No EMI ａｎｄ switch noise
Packages: DFN2x2-8L
The AW9364 is a 4-channel ultra low dropout con-stant-source parallel LED driver. With the proprietary Q-MirrorTM technique, the AW9364 uses an internal re-sistor to set the bias current for four LEDs, which are matched to ±1%. The AW9364 incorporates a single wire interface to program the output current at 16 continuous steps. The AW9364 has an internal deglitch circuit for filtering the noise of the EN input. The AW9364 requires only a 40mV dropout voltage at a 20mA load. The feature makes AW9364 ideal for battery-operated systems, such as personal digital assistants.
The AW9364 is available ｉｎ DFN2x2-8L packages ａｎｄ is specified over the -40℃ to +85℃ temperature range.

Technical documentation
Type
Title
Date
Datasheet DS_AW9364_EN_V2.4   2024-02-28

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

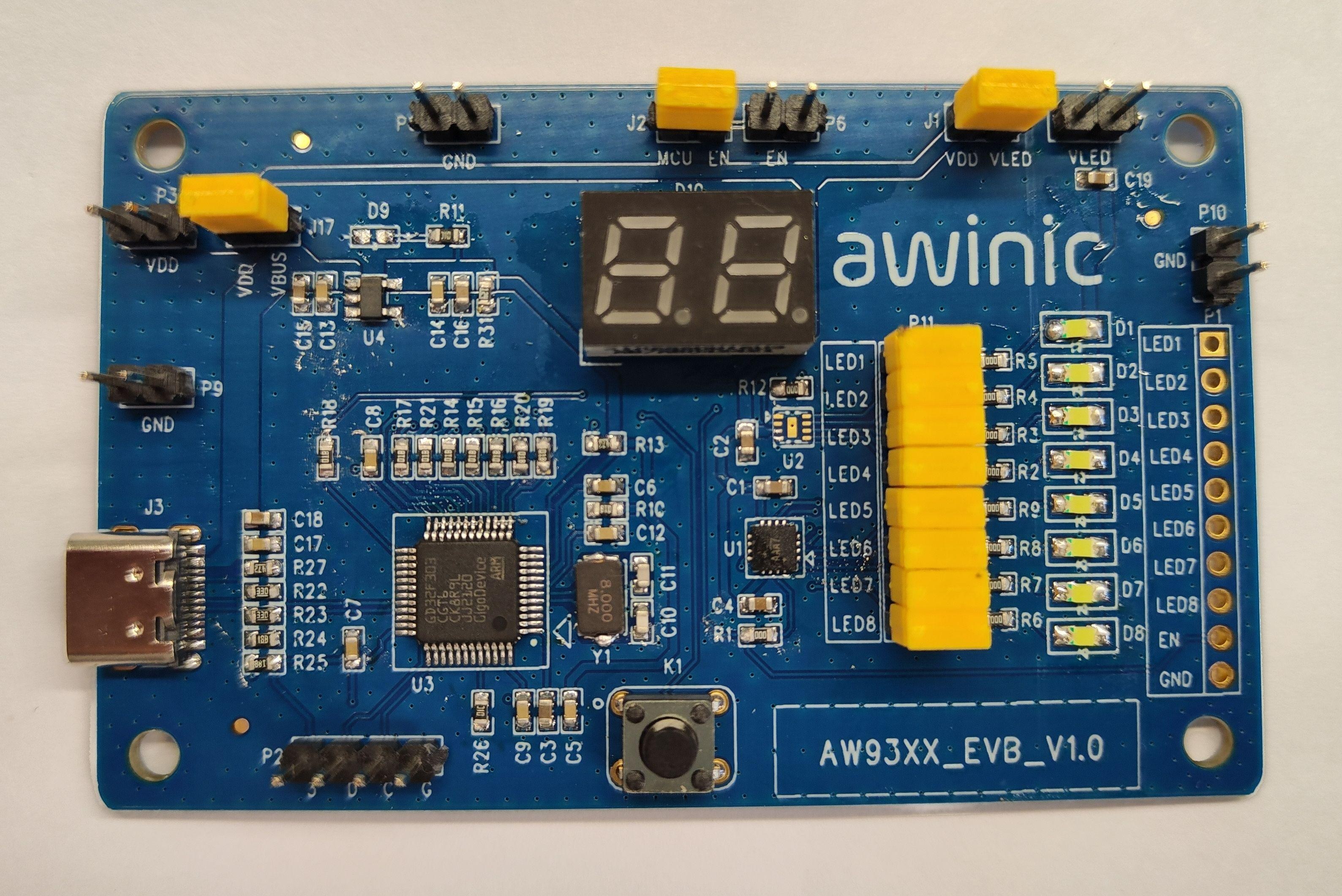

AW9364 EVB V1.0 — AW9364 EVB V1.0, equipped with an MCU, buttons, and a digital tube on the board, can perform 16-level single-line pulse control backlight brightness adjustment to demonstrate functions and evaluate performance

AW9364 EVB V1.0 is 4-channel parallel backlight evaluation board used to demonstrate and test one-wire pulse control of 4-channel parallel backlights

View options

Evaluation board

AW93XX_EVB_V1.0 — NA

NA

View options
Hardware development

Evaluation board

AW9364 EVB V1.0 — AW9364 EVB V1.0, equipped with an MCU, buttons, and a digital tube on the board, can perform 16-level single-line pulse control backlight brightness adjustment to demonstrate functions and evaluate performance

AW9364 EVB V1.0 is 4-channel parallel backlight evaluation board used to demonstrate and test one-wire pulse control of 4-channel parallel backlights
