AW93208GQNR

8-Channel Capacitive Wear Detection and Touch Key Controller.

Datasheet :

Preview - AW93208GQNR - Datasheet

Ref.Price

1-99￥18.25
100-249￥14.96
250-499￥12.04
500-999￥9.49
1000+￥7.30

Product details

Channel	8
LED Output	0
Gesture Detection	Click<br>Slide
ISD (μA)	/
Istandby (μA)	6.5
Capacitance Resolution(fF)	0.001
Power Supply (Min) (V)	2.7
Power Supply (Max) (V)	3.6
Temperature	-40℃~105℃
Flash	YES
Package (mm)	QFN 3X3-24L

QFN 3X3-24L

1. 8-channel capacitive sensor
Self/Mutual capacitive sensing
Capacitance resolution down to 1aF
Automatic Offset Tuning (AOT)
Adaptive Temperature Compensation
Effective waterproof
Independent configuration per channel
2. Built-in gesture/event recognition:
Click/Wear detection
Linear slide detection
Wheel slide detection
Capacitive force detection
3. 400kHz I2C interface
Default address: 0x12
Address can be modified through CS2 pin
4. External interrupt pin INTN, open-drain output
5. Built-in brown-out reset(BOR)
6. Power consumption
Active mode:27.5μA
Doze mode:12μA
Sleep mode:10μA
Deep Sleep mode:6.5μA
7. 2.7V~3.6V power supply
8. QFN 3mm×3mm×0.55mm-24L package

AW93208GQNR is an 8-channel capacitive proximity and touch controller mainly used for wear detection, touch key, linear slider, wheel slider, etc. The chip can realize accurate position detection for lamp dimming, volume adjustment, etc.
AW93208GQNR can recognize various gestures, such as single/double/triple click, short/long press, linear slide and wheel slide with the high-resolution capacitive sensing. The chip integrates mutual capacitive technology and dedicated algorithm, which greatly improve the waterproof performance for touch key.
The built-in ultra-low-power MCU and 16KB flash realize AFE sampling control, signal filtering, RF noise suppression, adaptive temperature compensation, baseline tracking, touch/wearing status determination, etc. The chip can flexibly customize the program and support online upgrade function.

Technical documentation

Type	Title	Date
Datasheet	DS_AW93208GQNR_EN_V1.0	2023-06-06
Product Application Note	AN_AW932XX_mutual cap slider_EN_V1.0	2023-12-27
Product Design Guide	AW9310X/AW9320X/AW933XX Hardware Design Guide	2024-06-18

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

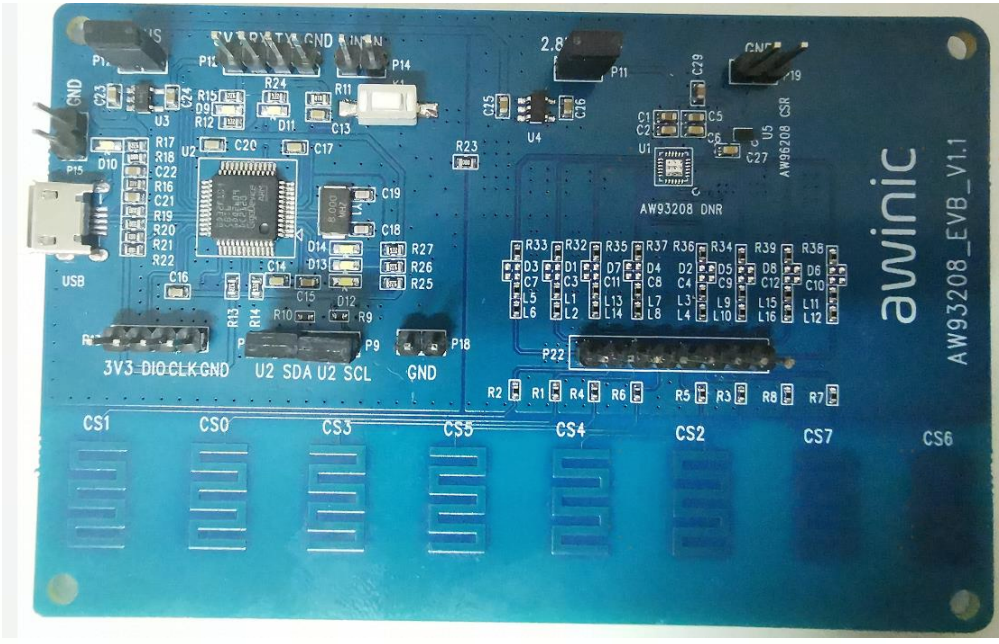

AW93208 EVB V1.1 — AW93208_EVB_V1.1 is a functional demonstration board for the CAP, which can be used to demonstrate the functions of the CAP
