AW89401QNR

AW89401 Quad-Channel High Performance Low-Power Audio ADC

Datasheet :
Preview - AW89401QNR - Datasheet
IC
EVB
Ref.Price
  • 1-99￥10.14
  • 100-249￥8.31
  • 250-499￥6.69
  • 500-999￥5.27
  • 1000+￥4.06

Product details

IO Supply (Max) (V) 3.63
IO Supply (Min) (V) 1.62
Digital Supply (Max) (V) 3.63
Digital Supply (Min) (V) 1.62
Signal to noise ratio 102 dB signal to noise ratio
Dynamic range 102 dB dynamic range
THD+N Ratio -94dB
DSP NO
Protection /
Control Interface IIC
Temperature -40℃~85℃
QFN 4X4-32L
 Multichannel high-performance ADC:4 channel analog microphones or line-in;4 channel digital PDM microphones  ADC line and microphone differential input Performance:102 dB signal to noise ratio ;102 dB dynamic range; 94 dB THD+N Ratio  ADC input voltage:Differential, 2-VRMS full-scale inputs;Single-ended, 1-VRMS full-scale inputs  Programmable channel settings:Channel gain: -6 dB to 36 dB,1 dB steps;Digital volume control: -96dB to 30dB, 0.094dB/step  Programmable microphone bias  Programmable high pass filter(HPF)  Automatic gain controller (AGC)  I2C-bus control interface  I2S/TDM interface :I2S, Left-Justified and Right-Justified;Supports 1/2/4/6/8/16 slots TDM;Supports 8 to 192kHz sample rates;Data Width: 16, 20, 24, 32 Bits;Master or slave interface  Power Supplies :VDDA、VDDM: 3.3V;VDDIO: 3.3 V or 1.8 V

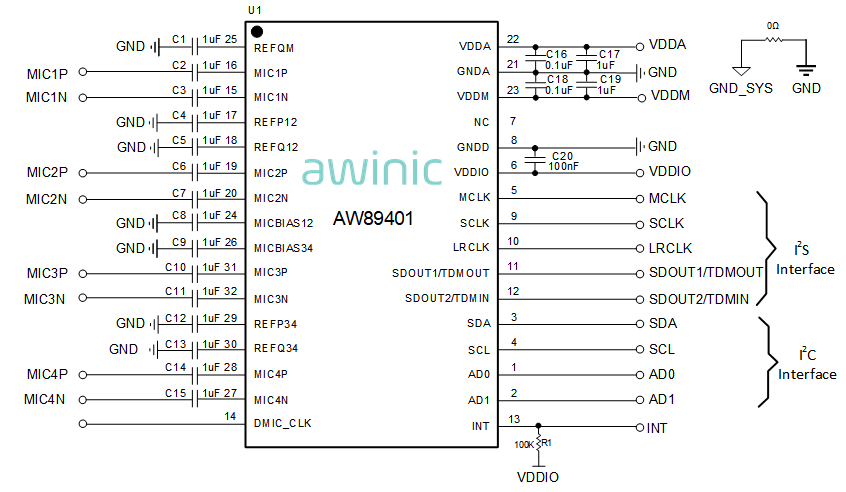

The AW89401 is a high performance, low power 4-channel audio analog-to-digital converter (ADC) for microphone array application. The device supports line and microphone inputs. The device integrates four PGAs for quad differential inputs, MIC1P & MIC1N, MIC2P & MIC 2N, MIC3P & MIC3N and MIC4P & MIC4N. The device supports simultaneous sampling of up to four analog channels or four digital channels for the pulse density modulation (PDM) microphone input. The device integrates programable channel gain, digital volume control, a programmable microphone bias voltage, a programmable high-pass filter (HPF), and allows for sample rates up to 192 kHz. The device supports time-division multiplexing (TDM), I2S, or left-justified (LJ) audio formats, and can be controlled with the I2C interface The device is very suitable for music and voice application, such as Microphone Array, Far field voice capture, Smart speaker, Conference system, Sound bar, Audio Interface, etc. AW89401 is available in a WBQFN 4X4-32L (Height 0.75) Package.

Technical documentation
Type
Title
Date
Product Design Guide AW89401_Software_Design_Guide   2024-10-29
Datasheet DS_AW89401_EN_V1.3   2025-06-24
