AW88461CSR

I2S/TDM Input, High Efficiency, 12V BOOST Digital Smart K Audio Amplifier

Datasheet :
Preview - AW88461CSR - Datasheet

Product details

Parameters

Power Supply (Min) (V) 2.5
Power Supply (Max) (V) 5.5
Digital Supply (Min) (V) 1.65
Digital Supply (Max) (V) 1.95
IO Supply (Min) (V) 1.2
IO Supply (Max) (V) 1.8
PVDD Voltage(V) 12
Boost Type Adaptive Boost
PO(W) （8&THD=1%） 6.8W@4.4V（8Ω+47uH,ipeak 4.5A）
SPK Noise(uV) 9.5
DSP NO
Protection MEC+TPC
Control Interface IIC
RCV mode YES
RCV Noise(uV) 4.5
Temperature -40℃~85℃
Package (mm) WLCSP 2.2X2.2-36B

Package | Pins | Size

WLCSP 2.2X2.2-36B

Features

Smart amplifier with total efficiency up to 87% High RF noise suppression, eliminate the TDD noise completely Output noise： Speaker mode: 9.5μV Receiver mode: 3.6μV THD+N: 0.01% Speaker Voltage and Current monitor and feedback with I2S/TDM interface Power Saving Mode (PSM) Supports 4Ω Speaker Extensive Pop-Click Suppression Volume control (from -96dB to 0dB) I2S/TDM interface： I2S, Left-Justified and Right-Justified Supports 1/2/4/6/8/16 slots TDM Input Sample Rates from 8kHz to 192kHz Data Width: 16, 20, 24, 32 Bits Ultrasonic support with sample frequency of 96kHz I2C-bus control interface Power Supplies： VBAT: 2.5V-5.5V DVDD: 1.65V~1.95V VDDIO: 1.2V / 1.8V Battery Brown Out Protection Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection WLCSP 2.2mmX2.2mm-36B Package

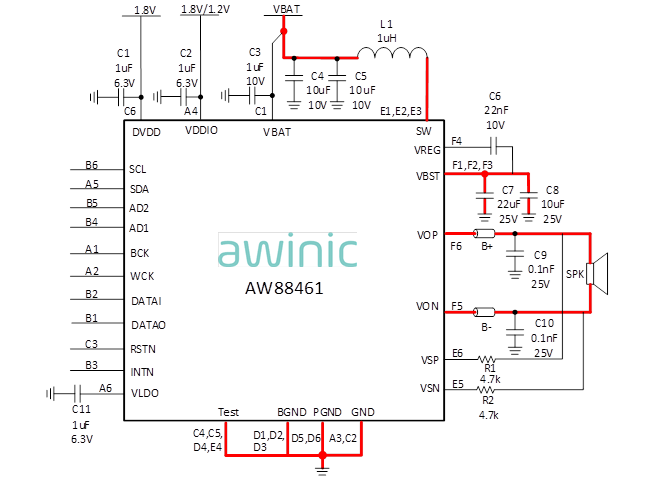

Description

The AW88461CSR is an I2S/TDM input, high efficiency digital Smart K audio amplifier with an integrated 12V smart boost converter. Due to its 8uV noise floor and ultra-low distortion, clean listening is guaranteed. It can deliver 6.5W output power into an 8Ω speaker at 1% THD+N. The AW88461CSR integrates a high-efficiency smart boost converter as the Class-D amplifier supply rail. The output voltage of boost converter can be adjusted smartly according to the input amplitude, which extremely improves the efficiency without clipping distortion. The AW88461CSR features high RF suppression and eliminates TDD noise completely benefited from the digital audio input interface. General settings are communicated via an I2C-bus interface, and the device address is configurable. The AW88461CSR offers Short Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection to protect the device. AW88461CSR is available in a WLCSP 2.2mmX2.2mm-36B Package.

Technical documentation
Type
Title
Language
Date
Datasheet DS_AW88461_EN_V1.3 英文   2025-10-30

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Software development

APPLICATION SOFTWARE&FRAMEWORK

AW88461_GUI — AW88461CSR Tunning Tool

AW88461CSR GUI is a highly integrated and easy-to-use tool for product configuration and debugging. Intuitive interface and use-friendly operation can help customers shorten development time and complete system integration quickly.

View options

DRIVER OR LIBRARY

AW882XX_Driver — Android and other drivers for AW882XX series

Android and other drivers for AW882XX series，including example code，porting duide，debugging guide，etc
