AW88298QNR

I2S/TDM Input, 10.25V BOOST Digital Smart K Audio Amplifier

Datasheet :

Ref.Price

1-99￥16.22
100-249￥13.30
250-499￥10.71
500-999￥8.43
1000+￥6.49

Product details

Power Supply (Min) (V)	3
Power Supply (Max) (V)	5.5
Digital Supply (Min) (V)	1.65
Digital Supply (Max) (V)	1.95
IO Supply (Min) (V)	1.65
IO Supply (Max) (V)	3.6
PVDD Voltage(V)	10.25
Boost Type	Adaptive Boost
PO(W) （8&THD=1%）	5.2
SPK Noise(uV)	22@24dB
DSP	NO
Protection	MEC+AGC
Control Interface	IIC
RCV mode	YES
RCV Noise(uV)	12@13dB
Temperature	-40℃~85℃
Package (mm)	QFN 3.5X3.5-24L

QFN 3.5X3.5-24L

Smart BOOST with total efficiency up to 84%
High RF noise suppression, eliminate the TDD noise completely
Low noise: 12uV
THD+N: 0.02%
Extensive Pop-Click Suppression
Volume Control (from -96dB to 0dB)
I2S/TDM interface：
I2S, Left-Justified and Right-Justified
Supports four slots TDM
Input Sample Rates from 8kHz to 96kHz
Data Width: 16, 20, 24, 32 Bits
I2C-bus control interface(400kHz)
Power Supplies：
VDD: 3.0V-5.5V
DVDD: 1.65V~1.95V
VDDIO: 1.65V~3.6V
Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection
QFN 3.5mm X3.5mm X0.75mm-24L package

The AW88298 is an I2S/TDM input, high efficiency digital Smart K audio amplifier with an integrated 10.25V smart boost converter. Due to its 12μV noise floor and ultra-low distortion, clean listening is guaranteed. It can deliver 5.2W output power into an 8Ω speaker at 1% THD+N. The AW88298 integrates a high-efficiency smart boost converter as the Class-D amplifier supply rail. The output voltage of boost converter can be adjusted smartly according to the input amplitude, which extremely improves the efficiency without clipping distortion. The AW88298 features high RF suppression and eliminates TDD noise completely benefited from the digital audio input interface. General settings are communicated via an I2C-bus interface, and the device address is configurable. The AW88298 offers Short Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection to protect the device.

Technical documentation

	Type	Title			Date
	Datasheet	DS_AW88298_EN_V1.6			2023-06-06

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

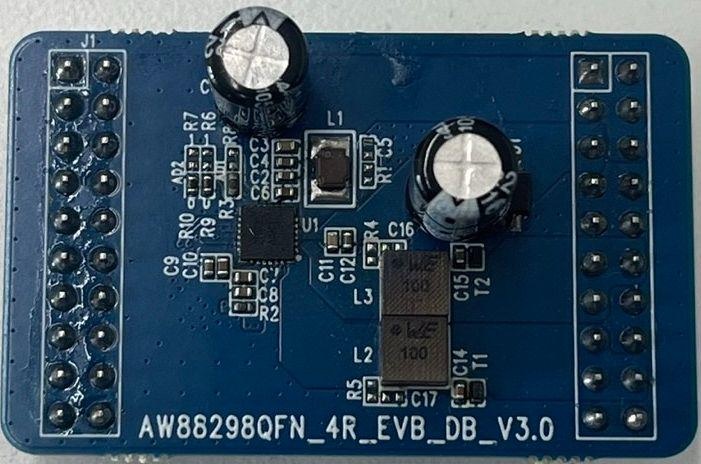

AW88298QFN_4R_EVB_DB_V3.0 — AW88298QFN_4R_EVB_DB_V3.0 is the digital power amplifier EVB board, cooperating with Digital_EVB_MB, digital power amplifier stereo demonstration can be achieved. Cooperating with the Awinic’s software, mono and stereo applications can be demonstrated.
