| Power Supply (Min) (V) |
2.5 |
| Power Supply (Max) (V) |
5.5 |
| Digital Supply (Min) (V) |
- |
| Digital Supply (Max) (V) |
- |
| IO Supply (Min) (V) |
- |
| IO Supply (Max) (V) |
- |
| PVDD Voltage(V) |
- |
| Boost Type |
/ |
| PO(W)
（8&THD=1%） |
1.4W@5V |
| SPK
Noise(uV) |
10uV |
| DSP |
NO |
| Protection |
/ |
| Control Interface |
GPIO |
| RCV mode |
NO |
| RCV
Noise(uV) |
10uV |
| Temperature |
-40℃~85℃ |
| Package (mm) |
WLCSP 1.403X1.183-9B |
High RF noise suppression, eliminate the TDD noise completely
Low noise: 10µV
Low shutdown current:0.02uA
Fast turn-on times：1ms
THD+N: 0.02%
Supports 4Ω Speaker
Extensive Pop-Click Suppression
Support spread spectrum
I2S interface：
Standard I2S (A/C), Left-Justified (B/D)
Supports 4/6/8 slots TDM (One Subframe)
Only supports 8 slots TDM (One Bit Clock)
Input Sample Rates from 8kHz to 96kHz
Data Width: 16, 20, 24, 32 Bits
Simplified interface for audio and general settings
Power Supplies：
VDD：2.5V-5.5V
Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection
WLCSP 1.403mmX1.183mm-9B package

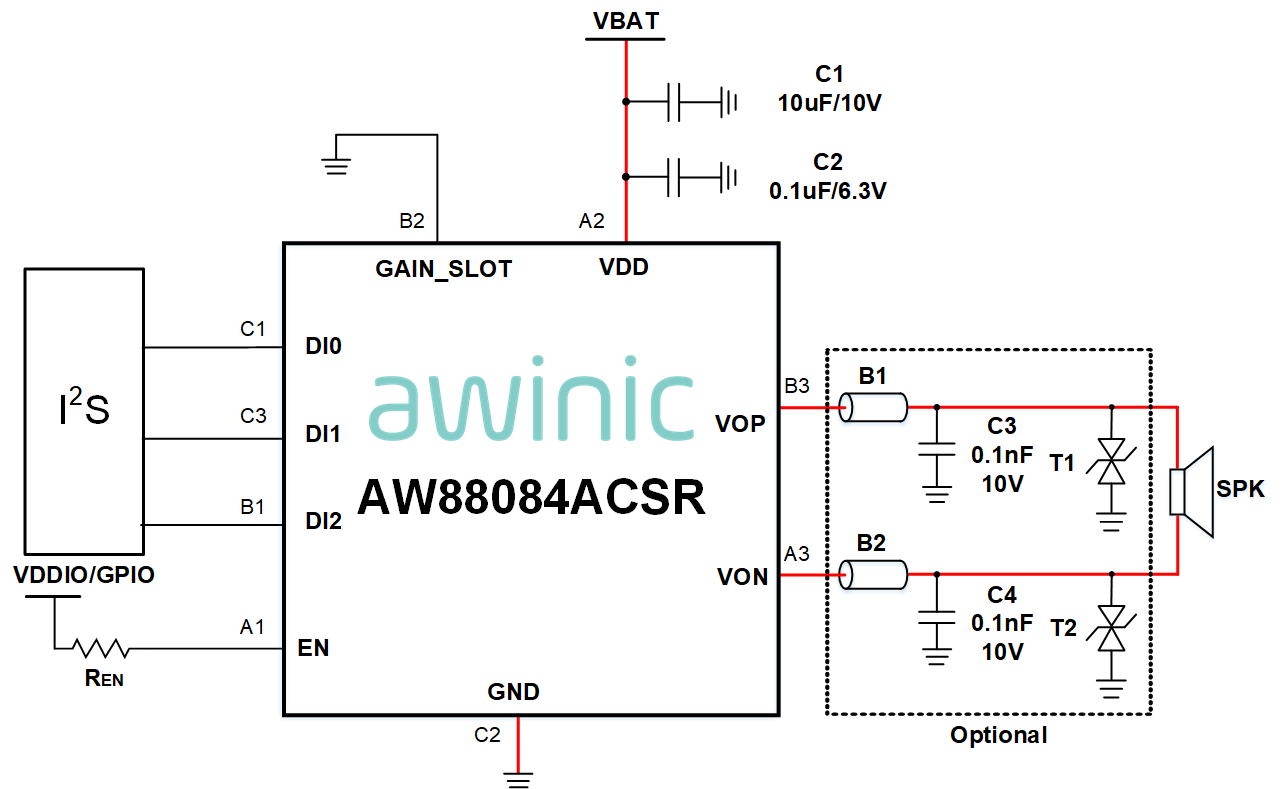

AW88084A is a member of the AW88084A/B/C/D series. This series comprises four models (A/B/C/D) of I2S/TDM input digital audio amplifiers. The digital audio interface configuration is achieved via resistor pull-up on the EN pin, eliminating the need for I2C programming.
The AW88084A/B/C/D series ensures clean audio performance with a 10µV noise floor and ultra-low distortion, while delivering 3.2W output power into 4Ω speakers at 10% THD+N.
The AW88084A/B/C/D series features high RF suppression and eliminates TDD noise completely benefited from the digital audio input interface.
The AW88084A/B/C/D series support spread spectrum and edge-rate limiting to enhance EMI performance while reduces output filter size and cost.
The AW88084A/B/C/D series offers Short Circuit Protection, Over-Temperature Protection, Under-Voltage Protection to protect the device.
AW88084A/B have a fast 1ms turn-on time, while AW88084C/D ramp the volume over 13ms during turn-on and turn-off.
The AW88084A/B/C/D series is available in a WLCSP 1.403mmX1.183mm-9B package. All versions share identical pin definitions.
EN
