AW88081DNR

3.2 W Digital Input Mono Digital Smart K Audio Amplifier With I2C Control Interface

Datasheet :
Preview - AW88081DNR - Datasheet
Ref.Price
  • 1-99￥8.12
  • 100-249￥6.66
  • 250-499￥5.36
  • 500-999￥4.22
  • 1000+￥3.25

Product details

Power Supply (Min) (V) 2.5
Power Supply (Max) (V) 5.5
Digital Supply (Min) (V) 1.65
Digital Supply (Max) (V) 1.95
IO Supply (Min) (V) 1.65
IO Supply (Max) (V) 3.6
PVDD Voltage(V) -
Boost Type /
PO(W) （8&THD=1%） 1.45W@5V 0.75W@3.6V
SPK Noise(uV) 9
DSP NO
Protection /
Control Interface IIC
RCV mode NO
RCV Noise(uV) /
Temperature -40℃~85℃
Package (mm) DFN 3X3-12L
DFN 3X3-12L
High RF noise suppression, eliminate the TDD noise completely Low noise: 9μV THD+N: 0.016% Supports 4Ω Speaker Extensive Pop-Click Suppression I2C-bus control interface(≤1MHz) Three gain settings Volume control (from -96dB to 0dB) I2S /TDM interface： I2S Philips, Left-Justified and Right-Justified Supports 1/2/4/6/8 slots TDM Input Sample Rates from 8kHz to 96kHz Data Width: 16,20,24,32 Bits Left/right selection and mono mixing PDM interface： Input Sample Rates: 3M/6M/12M Left/right selection Low delay Power Supplies： VBAT：2.5V-5.5V DVDD: 1.65V~1.95V Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection WBDFN 3X3-12L(0.85)
AW88081DNR is an I2S/TDM/PDM input digital audio amplifier. Due to its 9µV noise floor and ultra-low distortion, clean listening is guaranteed. It can deliver 3.2W output power into an 4Ω speaker at 10% THD+N. AW88081DNR features high RF suppression and eliminates TDD noise completely benefited from the digital audio input interface. General settings are communicated via an I2C-bus interface, and the device address is configurable. Two devices can be combined to build a stereo application. AW88081DNR offers Short Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection to protect the device. AW88081DNR is available in a WBDFN 3X3-12L(0.85).

Technical documentation
Type
Title
Date
Product Design Guide AW88081DNR Software Design Guide   2025-06-06
Datasheet DS_AW88081DNR_EN_V1.0   2025-06-09

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

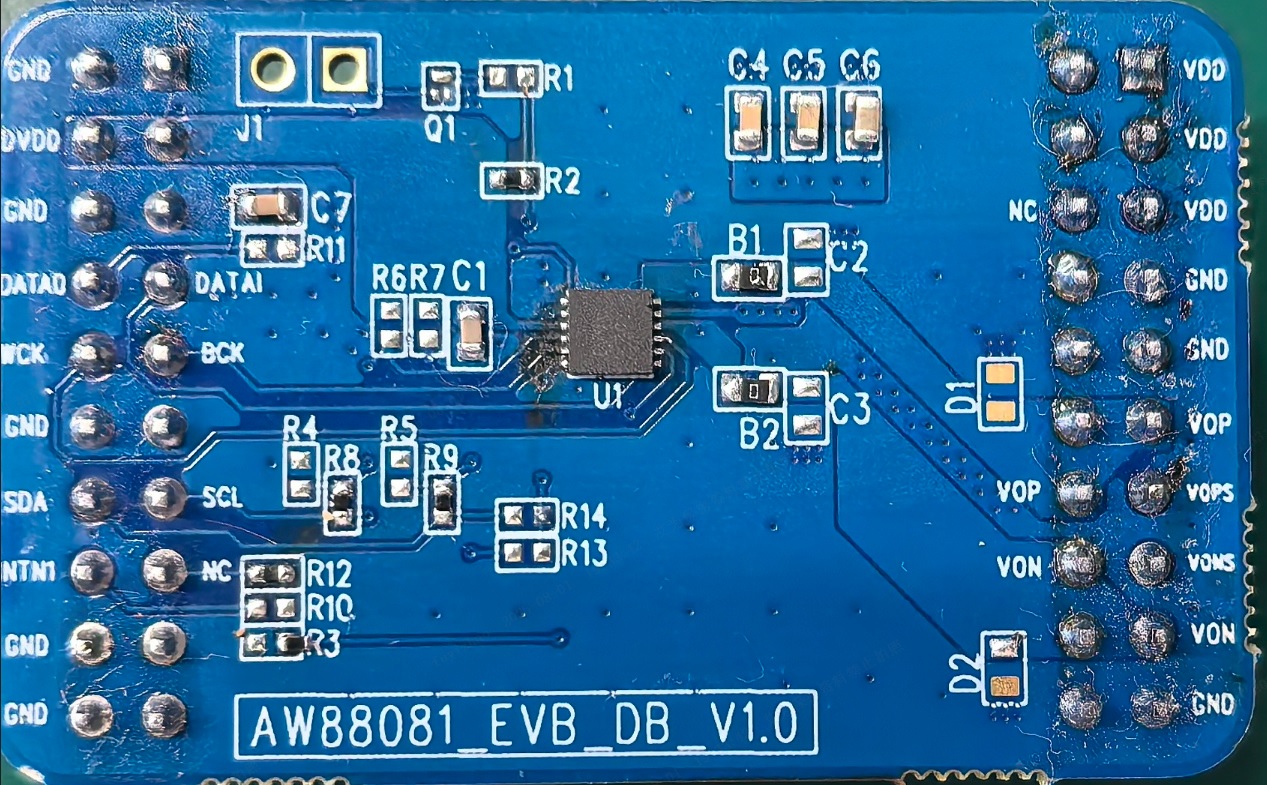

AW88081_EVB_DB_V1.0 — EVB evaluation board suitable for digital audio amplifier AW88081DNR application, equipped with Digital SmartK Bottom EVB V2.3 and supporting software, can achieve mono and stereo demonstration of digital amplifier;
