AW87391FCR

8.5V Adaptive DO-Charge pump High Efficiency Low Noise Multi-Level AGC Smart K Audio Amplifier

Datasheet :
Preview - AW87391FCR - Datasheet
Ref.Price
  • 1-99￥3.81
  • 100-249￥3.13
  • 250-499￥2.52
  • 500-999￥1.98
  • 1000+￥1.53

Product details

Power Supply (Min) (V) 2.7
Power Supply (Max) (V) 5.5
PVDD Voltage(V) 8.5
Boost Type Adaptive DO-Charge Pump(inductor free)
PO(W) （8Ω&THD=1%） 2.8W@4.3V
SPK Noise(uV) 20uV@18dB 28uV@24dB
Protection Multi-Level AGC
Control Interface IIC
RCV mode YES
RCV Noise(uV) 6.5uV@0dB
Temperature -40℃~85℃
Package (mm) FCQFN 2.5X2-16L
FCQFN 2.5X2-16L
Multi-Level AGC audio algorithm, effectively eliminates noise and makes sound smooth Adaptive DO-Charge pump technology： Low Quiescent current：5mA@3.6V Overall efficiency up to 86.5% Output Power：2.8W@8Ω ; 3.1W@6Ω Low Noise： RCV：6.5μV SPK：20μV Low THD+N：0.03% Support high power receiver stereo application Support D speaker , D receiver 2-in-1 application LRCV receiver：0dB，En=6.5μV，0.14W@THD+N=1% SRCV receiver：0dB，En=8μV， 0.56W@THD+N=1% Support 1.8V I2C Control Over current protection, over-temperature protection and short-circuit protection Super TDD-Noise suppression Excellent pop-click suppression High PSRR：85dB（217Hz） FCQFN 2.5mmX2.0mmX0.55mm-16L package

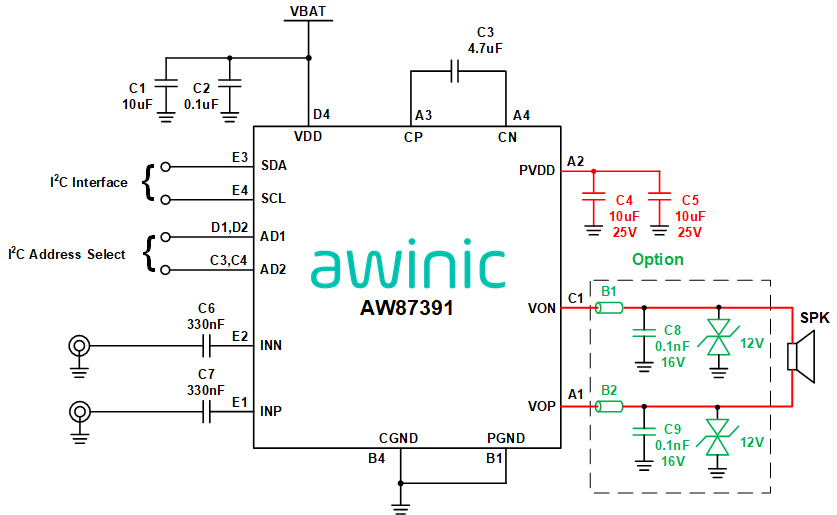

AW87391 is specifically designed to improve the musical output dynamic range, enhance the overall sound quality, which is a new high efficiency, low noise, constant large volume, Smart K audio amplifier. AW87391 integrates awinic’s proprietary Multi-Level AGC audio algorithm, effectively eliminating music noise and improving sound quality and volume. AW87391 integrated efficiency up to 95.4% of Adaptive DO-Charge pump technology, significantly improving the dynamic range of the music output and power consumption of audio system. AW87391 noise floor is as low as to 20μV at speaker mode, with 105dB high signal-to-noise-ratio (SNR). The ultra-low distortion 0.03% and unique Multi-Level AGC technology bring high quality music enjoyment. AW87391 controls internal registers through the I2C interface. Register parameters include output voltage, power amplifier gain, Multi-Level AGC parameters etc. AW87391 built-in over current protection, over temperature protection and short circuit protection function, effectively protect the chip. AW87391 features small FCQFN 2.5mmX2.0mmX0.55mm-16L package.

Technical documentation
Type
Title
Date
Datasheet DS_AW87391_EN_V1.2   2025-12-05

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW873X9 V3.0 — EVB board for analog audio amplifier AW87390FCR AW87391FCR AW87359FCR AW87339FCR AW87389FCR AW87360FCRapplications (with analog baseplate)

EVB board for analog audio amplifier AW87390FCR AW87391FCR AW87359FCR AW87339FCR AW87389FCR AW87360FCRapplications (with analog baseplate)

View options

Evaluation board

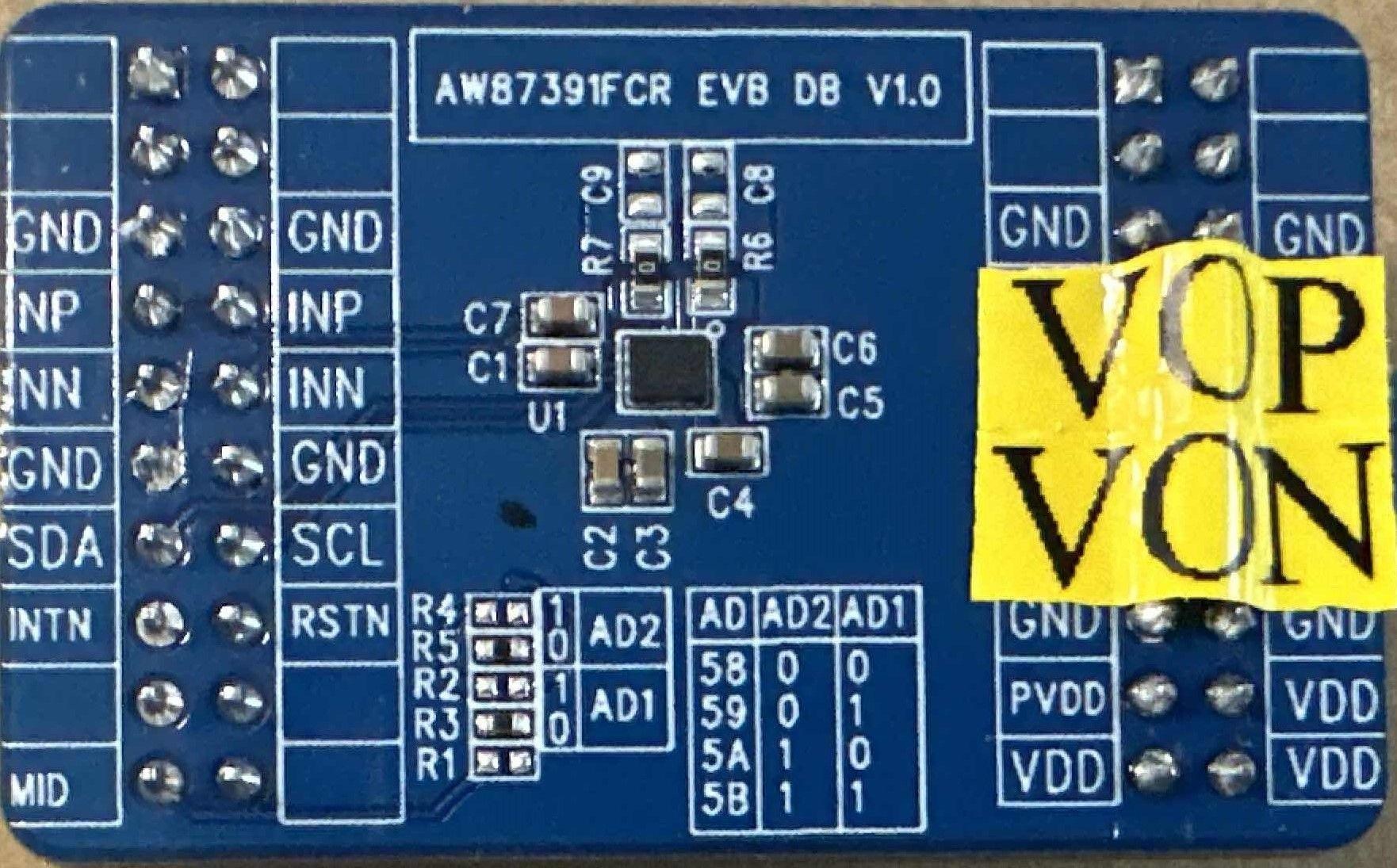

AW87391FCR_EVB_DB_V1.0 — Dedicated EVB board for analog audio amplifiers AW87391FCR(Requires use in conjunction with the analog baseplate)
