AW87339CSR

High Efficiency Low Noise Large Volume Receiver Stereo TLTR-AGC 3rd Generation Smart K Audio Amplifier

Datasheet :

Preview - AW87339CSR - Datasheet

Similar products you might likeSimilar products you might like

Compare Alternatives

AW87390FCR

Adaptive DO-Chargepump High Efficiency Low Noise Large Volume TLTR-AGC 6th Smart K Audio Amplifier

Product details

Power Supply (Min) (V)	2.8
Power Supply (Max) (V)	5.5
PVDD Voltage(V)	8.5
Boost Type	DO-Charge Pump (inductor free)
PO(W) （8Ω&THD=1%）	3W@4.2V
SPK Noise(uV)	38uV@18dB
Protection	TLTR AGC
Control Interface	IIC
RCV mode	YES
RCV Noise(uV)	9uV@0dB
Temperature	-40℃~85℃
Package (mm)	WLCSP 2.54X2.07-18B

WLCSP 2.54X2.07-18B

Triple-Level Triple-Rate AGC algorithm to effectively eliminate noise, pure sound quality
Innovation high efficient, large drive high voltage 2X DO- Chargepump, efficiency up to 90%
Highest voltage：8.5V
Hardware compatible with AW87319CSR
Low noise：
9 μV (Class AB RCV THD+N=0.4%)
16 μV (Class D RCV THD+N=0.02%)
38 μV (Speaker THD+N=0.02%)
Support high power receiver stereo application
Selectable speaker-guard power level：
0.5W~1.5W@8ohm, 100mW/step
Selectable receiver-guard power level：
0.1W~1.5W@8ohm,100mW/step 0.025W~0.375W@32ohm, 25mW/step
Output Power：3W@8Ω 3.5W@6Ω
Speaker & receiver 2-in-1 mode application
Shutdown current：0.1μA
Super TDD-Noise suppression
Excellent pop-click suppression
Support 1.8V logic I2C control
High PSRR：75dB（217Hz）
Small 2.545mm*2.075mm CSP-18 package

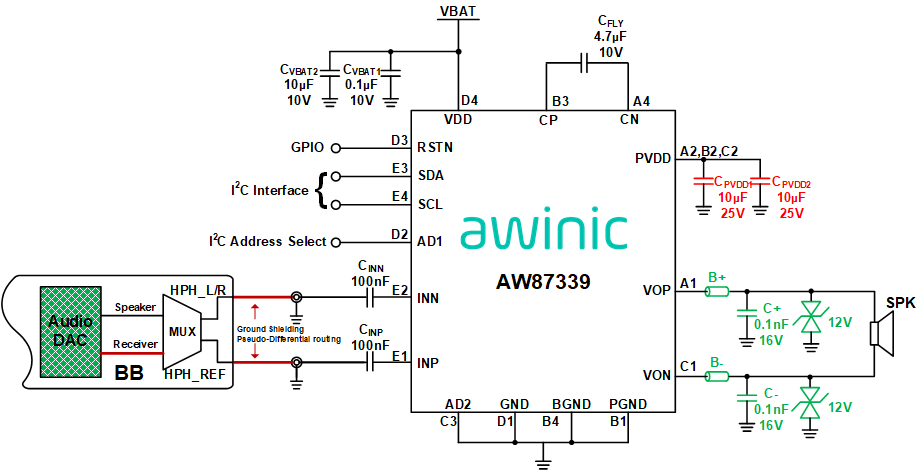

AW87339 is specifically designed to improve the musical output dynamic range, enhance the overall sound quality. It is a new high efficiency, low noise, constant large volume, 3rd generation Smart K audio amplifier. AW87339 integrates AWINIC’s proprietary Triple-Level Triple-Rate AGC audio algorithm, effectively eliminating music noise and improving sound quality and volume. AW87339 integrated high voltage DO-Chargepump technology with efficiency up to 90%, significantly improving the dynamic range of the music output. AW87339 noise floor is as low as to 38μV at speaker mode, with 102dB high signal-to-noise-ratio (SNR). The ultra-low distortion 0.02% and unique Triple-Level Triple-Rate AGC technology bring high quality music enjoyment. AW87339 supports speaker and high power receiver stereo applications, supports speaker and receiver 2-in-1 applications, class AB/D receiver optional, ultra-low noise is 9μV. AW87339 controls internal registers through the I2C interface. Register parameters include chargepump output voltage, power amplifier gain, Triple-Level Triple-Rate AGC parameters, etc. AW87339 built-in over current protection, over temperature protection and short circuit protection function, effectively protect the chip. AW87339 features small 2.545mm*2.075mm CSP-18 package.

Technical documentation

	Type	Title			Date
	Datasheet	DS_AW87339_EN_V1.4			2023-06-06
