AW87317AFCR

High Efficiency, Low Noise, Ultra-Low Distortion, Constant Large Volume, Upgrade 7th-Generation Class K Audio Amplifier

Datasheet :
Preview - AW87317AFCR - Datasheet
Ref.Price
  • 1-99￥3.65
  • 100-249￥2.99
  • 250-499￥2.41
  • 500-999￥1.90
  • 1000+￥1.46

Product details

Power Supply (Min) (V) 3.0
Power Supply (Max) (V) 5.5
PVDD Voltage(V) 6.05
Boost Type K-Charge Pump (inductor free)
PO(W) （8Ω&THD=1%） 1.75W@4.2V
SPK Noise(uV) 53uV@8V/V
Protection NCN
Control Interface one-wire
RCV mode YES
RCV Noise(uV) 22uV@1V/V<br>25uV@3V/V
Temperature -40℃~85℃
Package (mm) FCQFN 1.6X1.6-16L
FCQFN 1.6X1.6-16L
• Speaker and Receiver two-in-one application
• Class D Receiver Mode 5: 1V/V, Vn=22μV, THD+N=0.025%
• Class D Receiver Mode 6: 3V/V, Vn=25μV, THD+N=0.025%
• Class K Speaker Mode: 8V/V, Vn=53μV, THD+N=0.008%
• Power Amplifier’s Overall Efficiency: 80%
• Within Lithium Battery Voltage Range, Outputs Constant Large Volume
• Selectable Speaker-Guard Power Level: 0.6W, 0.8W, 1.0W, 1.2W
• No-Crack-Noise (NCN) Technology
• Super TDD-Noise Suppression
• Excellent Pop-Click Suppression
• One-Wire Pulse Control
• High PSRR: -68dB (217Hz)
• ESD Protection: ±1kV (CDM)
• FCQFN 1.60mmX1.60mmX0.55mm-16L
AW87317A is specifically designed to enhance overall sound quality. It is an upgrading 7th-generation class K audio amplifier with high efficiency, low noise, ultra-low distortion and capability of outputting constant large volume. With integrated AWINIC proprietary NCN output AGC audio algorithm, AW87317A can eliminate noise in playback and improve sound quality and effect. Using a novel K-Charge pump technology, its integrated charge pump efficiency can reach 93%, and power amplifier’s overall efficiency can reach 80%. With high efficiency, AW87317A can greatly prolong smart phone usage time. AW87317A noise floor is as low as to 53μV, with 97dB high signal-to-noise-ratio (SNR). The ultra-low distortion 0.008% brings high-quality musical enjoyment. AW87317A has a setting of 4-step selectable speaker-guard output power level from 0.6W to 1.2W, suitable for different rated power speakers. Within lithium battery voltage range, it keeps output power constant, preventing voice from degrading. AW87317A supports speaker and receiver two-in-one application. The Class D Receiver Mode has an ultra-low output noise of 22μV. Under this mode, the power of PA is supplied by VBAT. AW87317A has built-in over-current protection, over-temperature protection and short-circuit protection. AW87317A is available in a 1.60mm×1.60mm, 0.4mm pitch FC-16 package.

Technical documentation
Type
Title
Date
Datasheet DS_AW87317A_EN_V1.1   2023-06-06

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

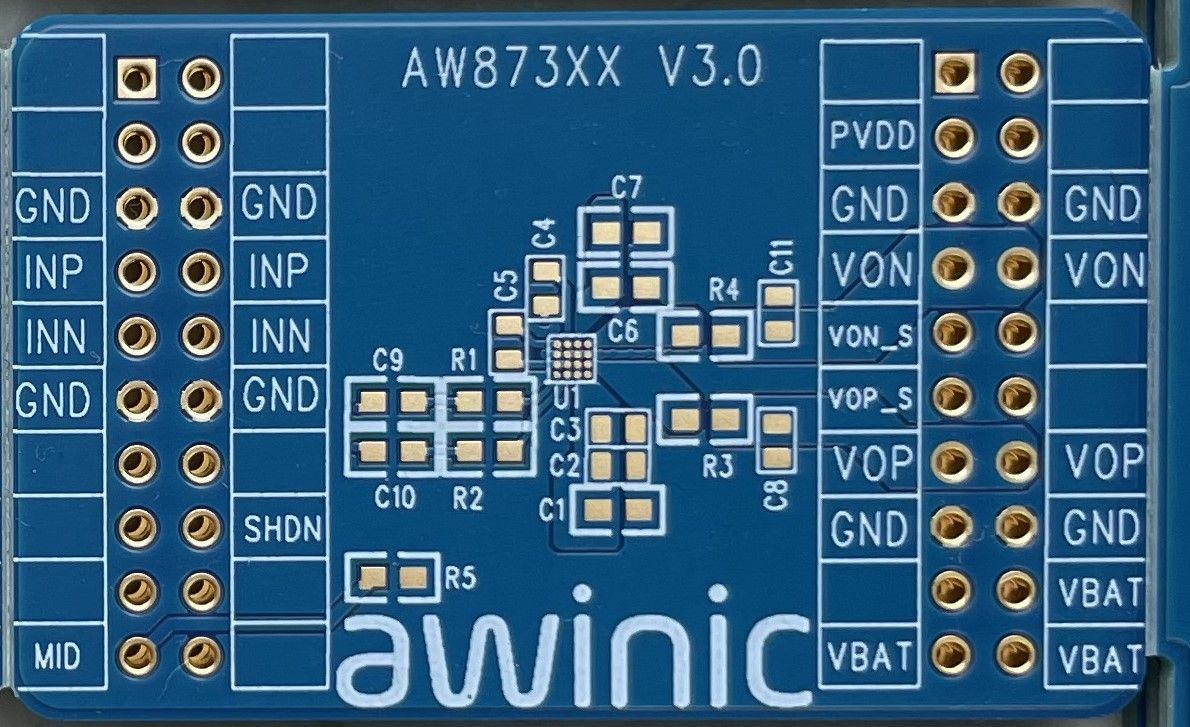

AW873XX V3.0 — EVB board for analog audio amplifier AW8737AFCR AW87317AFCR AW8737AQNR AW87318FCR AW87318AFCR applications (with analog baseplate)
