AW86927SPLR

11V Fast Startup With F0 Detect And Tracking LRA Haptic Driver

Datasheet :
Preview - AW86927SPLR - Datasheet

Product details

Parameters

Voltage Type Boost
Vout (Max) (V) 11
SRAM (kB) 8
Istandby (μA) 4.5
IO Level (V) 1.2 1.8 3.3
AAE YES
Input Signal IIC 3TRIG
LRA Calibration LCC2.0
Temperature -40℃~85℃
TikTap YES
Package (mm) FOPLP 3X2-20L

Package | Pins | Size

FOPLP 3X2-20L

Features

 1MHz I2C Bus  8-KByte Memory  8k/12k/24k/48k input wave sampling rate  F0 detect and tracking  Advance autobrake engine integrated  Playback mode:  Real time playback(Up to 4KByte FIFO)  Memory playback  3 Trigger playback  One wire playback  Cont playback  Resistance-Based LRA Diagnostics  Drive signal monitor for LRA protect  Drive Compensation Over Battery Discharge  Fast Start Up Time ＜1ms  Boost output voltage up to 11V  VOUT=8.8V@Vbat=4.2V for 8Ω LRA  Standby current：4.5μA@Vbat=4.2V  Supply voltage range 2.5 to 5.5V  Short-Circuit Protection, Over-Temperature Protection, Under-Voltage, Battery Protection  AW86927SAPLR (NOTE 1) include Immersion IP license for mobile phones and wearables  AW86927SNPLR (NOTE 1) include Immersion IP license for Notebook market

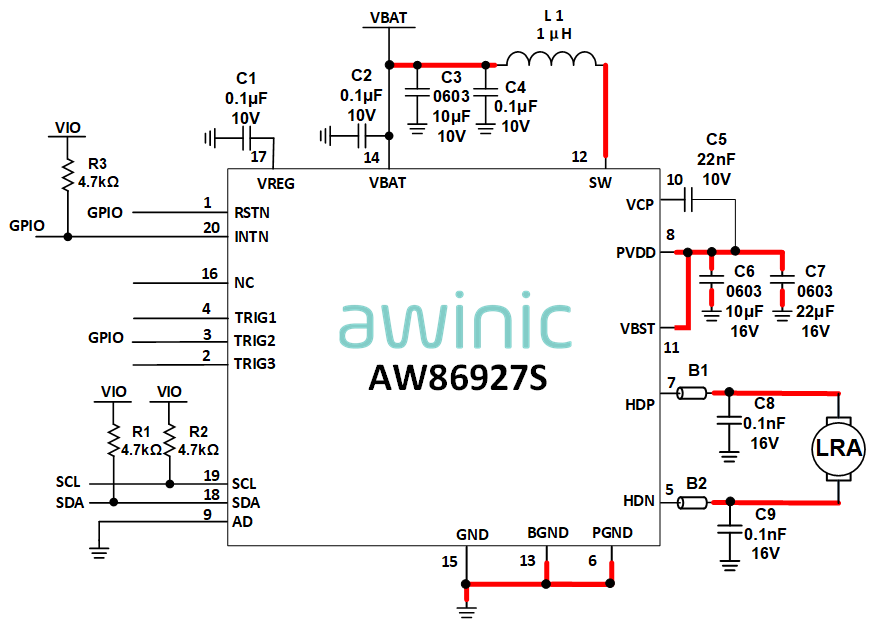

Description

AW86927S is a high voltage H-bridge, single chip LRA haptic driver, with F0 detecting and tracking based on BEMF, with a boost converter up to 11V drive voltage inside, supporting real time playback, memory playback, cont playback, one wire playback and hardware pin trigged playback. A typical startup time of 1ms makes the AW86927S an ideal haptic driver for fast responses. AW86927S integrates a 8KByte SRAM for user-defined waveforms to achieve a variety of vibration experiences, supporting 4 sampling rate (8k/12k/24k/48k) of waveforms loaded in SRAM, supporting output waveform sampling rate up-sampling to 48k. AW86927S integrates an autobrake engine to suppress the aftershocks to zero for different drive waveforms(short or long) on different LRA motors. AW86927S supports LRA fault diagnostic based on resistance measurement and protections of short-circuit, over-temperature and under-voltage. AW86927S integrates a high-efficiency boost converter as the H-Bridge driver supply rail. The output voltage, maximum current limit and maximum boost current are configurable. AW86927S features configurable automatically switch to standby mode after haptic waveform playback finished. This can reduce quiescent power consumption. The RSTN pin provides further power saving by fully shut down the whole device. Dedicated interrupt output pin can detect real time FIFO status and the error status of the chip. AW86927S features general settings are communicated via an I2C-bus interface and its I2C address is configurable.

Technical documentation
Type
Title
Language
Date
Product Design Guide DG_AW86927S_Software_Design_Guide_EN_V1.0 英文   2025-05-19
Datasheet DS_AW86927S_EN_V1.2 英文   2025-10-11
