| Pole Type |
omnipolar |
| VDD (Min) (V) |
2.7 |
| VDD (Max) (V) |
30 |
| Sensitivity Bop (Gs) |
45 |
| Sensitivity Brp (Gs) |
-45 |
| BHY (Gs) |
90 |
| IDD_AVG (mA) |
2.52 |
| IDD_Sleep (μA) |
0 |
| Temperature |
-40℃~150℃ |
| Output Type |
Open Drain |
| Package (mm) |
TO92S-3L |
Digital Bipolar latch Hall sensor
2.7V to 30V Operating Voltage Range
-32V Reverse Supply Voltage
10us Ultra-fast Response Time
50mA Maximum Continuous Output Current
-40°C to +150°C Operating Temperature
Open-drain output
ESD >10kV（HBM）
Output Limiting Current Protection
Good RF Nosie Immunity
TO92S-3L package

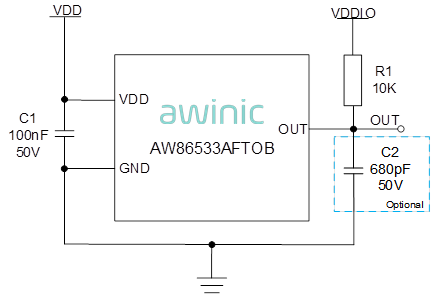

The AW86533AFTOB is a high - sensitivity and high - voltage Bipolar Latch Hall - effect switch integrated IC. It features an open - drain output and can operate with a power supply voltage ranging from 2.7V to 30V. Internally, it incorporates a voltage regulator, temperature compensation circuitry, and a small - signal amplifier.
The AW86533AFTOB is designed to react to a bipolar magnetic field. When the magnetic flux density (B) is greater than the operating point (BopS), the output will turn on (low - level). When the magnetic field strength is greater than the release point(BrpN) , then the device output is pulled high; When the magnetic field strength is between BopS and BrpN, then the device output remains in the previous state.
The AW86533AFTOB is packaged in a surface-mount TO92S-3L package and is compliant with RoHS (Restriction of Hazardous Substances) standards.
